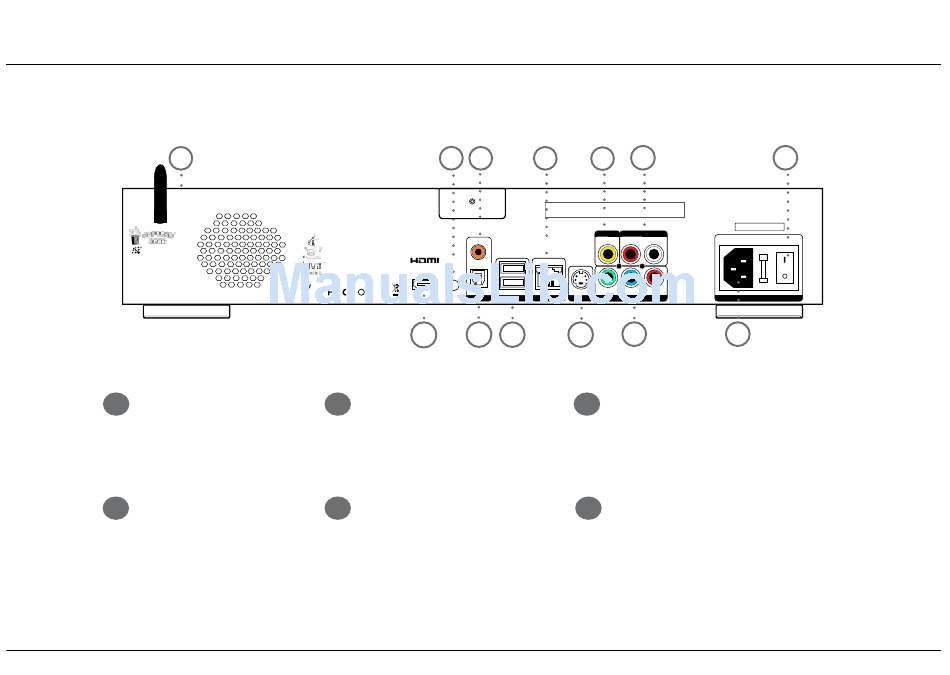

2.5.2 Back Panel

1
Networked Media Tank
Model No.: C-200
Input : 100~240 V, 50~60 Hz, max 2.5A
Typical Power : 13W
Maximum Power : 70W
Designed and developed by
Syabas Technology in US and Malaysia.
Made in China
1
RF Receiver Antenna
The antenna enables the remote
control to function properly.
2
HDMI (High-Definition
Multimedia Interface)
Connector
Use this to connect your HD TV
(high Definition TV).
(Video and Audio)
16
3 4
COAX
RoHS
OPTICAL
U L
C US LISTED
IR
S/PDIF
2 5
3
IR (Infrared) Receiver Port
Attach the optional infrared receiver
to this port to enable the user of an
IR remote control.
4
S/PDIF Coaxial Digital Audio
Connector
Use this connector to connect your
NMT to your home audio system using
the S/PDIF coaxial audio connector.
(Audio only)
10
7 9
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
CVBS AUDIO OUT
R L
LNK ACT
Y Pb Pr
USB 2.0 ETHERNET S-VIDEO COMPONENT VIDEO
6 8 11
5
S/PDIF Optical Digital Audio Connector
Use this connector to connect your NMT to your
home audio system using th S/PDIF optical audio
connector. (audio only)
6
USB Ports
Connect USB storage devices to this port to
access its media content.
// Popcorn Hour C-200
13
Only replace fuse with same rating
100~240 V, 50~60 Hz, max 2.5A
ON
OFF
POWER
12
