A-300 Hard Disk Installation Guide
Hard Drive Installation Guide For Popcorn Hour A-300

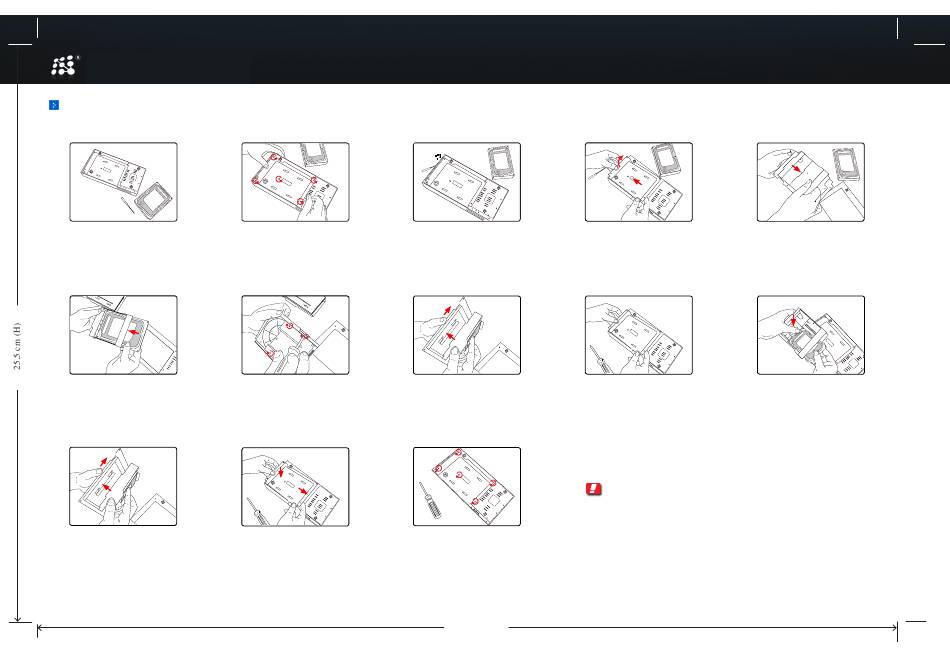

Step 1
What you need:
1) Phillips head screw driver.
2) 3.5" HDD or 2.5" HDD.
3) Popcorn Hour A-300.
Step 6
Slide your 3.5" hard drive to the bay,
ensure that the top side is placed on
the open area of the bay. For 2.5"
hard drive, skip to Step 10
Step 11
Slide back the hard drive carriage bay to the
bottom panel and make sure it is secure, to
avoid any vibration sound from the hard drive.
Step 2
Step 3
Turn over the A-300 and place the bottom
Place the screws aside and make sure it
is ver y easy to locate them later.
on top of your desk. Locate the 5 screws
to unscrew with your Phillips head screw
driver.
Step 7
Step 8
Locate the 4 screw holes where you need to
Slide back the hard drive carriage bay to the
secure the hard drive.
bottom panel and make sure it is secure, to
avoid any vibration sound from the hard drive.
Step 13
Step 12
Complete the assembly and assure all
Place the bottom panel back to the A-300
case and slide the panel towards the SATA
screws are tightened.
connector, you should feel a nudge indicating
that it is now inser ted. Replace all 5 screws
to secure the panel.
Step 4
Tilt the bottom panel with your right hand
and slide it to the left to expose the hard
drive carriage bay which is underside of
the panel.
Step 9
Place the bottom panel back to the
A-300 case and slide the panel towards
the SATA connector, you should feel a
nudge indicating that it is now inser ted.
Replace all 5 screws to secure the panel.
Note: 1) Disconnect all cables from the A-300 before proceeding.
2) The hard disk drive (HDD) is not provided.
38 cm (W)
Step 5
Slide the hard drive carriage bay to the right.
Step 10
Slide your 2.5" hard drive to the bay, ensure
that the top side is placed on the open area
of the bay.
