Summary of Contents for POPCORN HOUR A-410

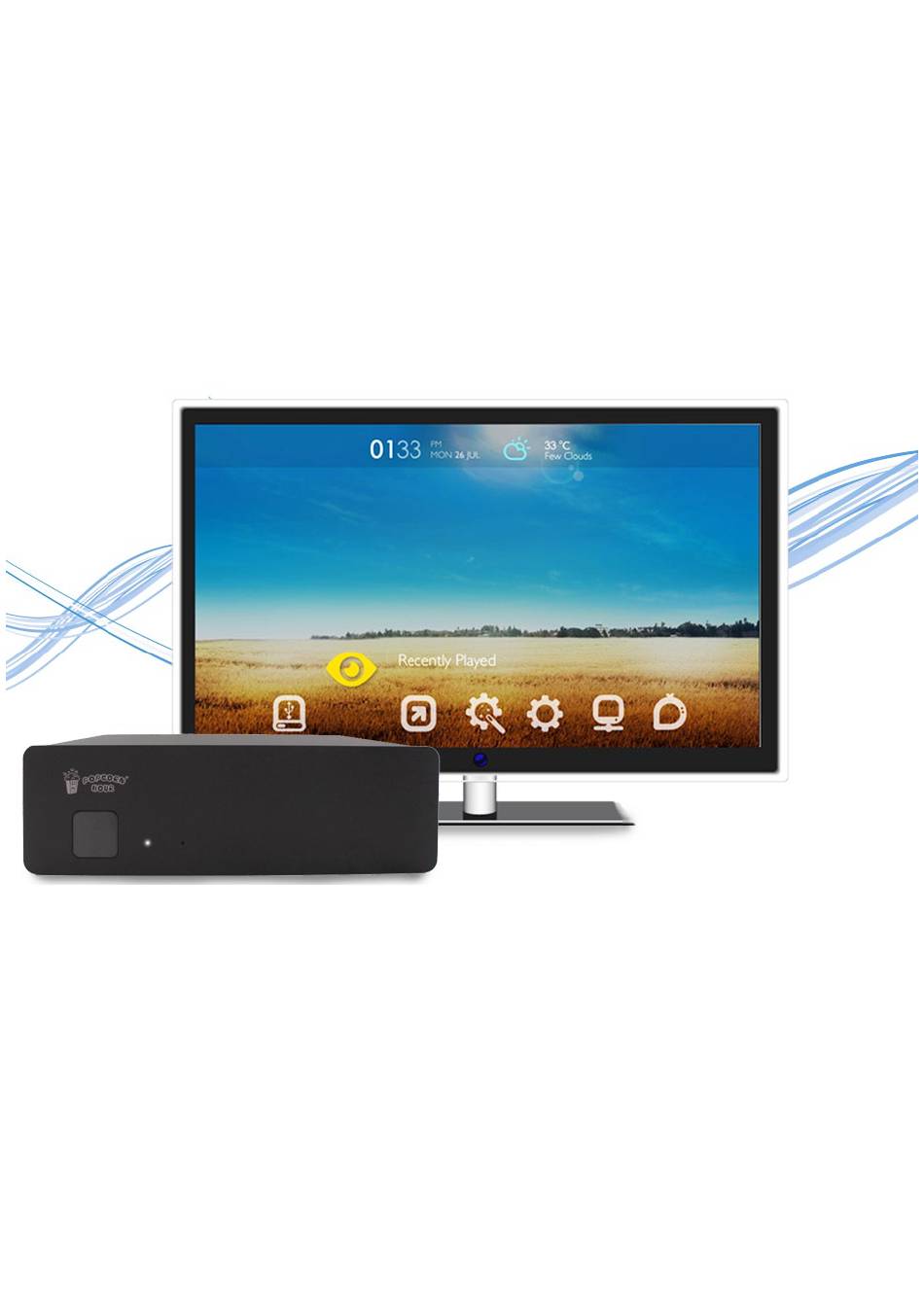

- Page 1 Popcorn Hour A-410 User Manual...
-
Page 2: Table Of Contents
Package Contents ..................... 3 Safety Notes ....................... 4 4. Technical Specifications ................... 5 Getting Started ....................6 Popcorn Hour A-410 Overview ..............6 Connecting to TV via HDMI ..............7 Connecting to TV via Composite ............8 Connecting to TV via Component ............9 Remote Control .................... - Page 3 11.2 View Mode ....................47 11.3 File Manager ................... 49 12. Movie Meta Data ....................50 12.1 Movie Info Page Walk-through .............. 51 12.2 Download Movie Thumbnail and Meta Data ........52 12.3 Edit or Update Movie Information ............54 12.4 Download Subtitles ................
-
Page 4: Introduction
1. Introduction Thank you for purchasing the Popcorn Hour A-410 Networked Media Jukebox. Powered by Syabas Technology, the Popcorn Hour A-410 is a state of the art digital entertainment center with a TV apps market to enhance your home entertainment. -
Page 5: Safety Notes
Popcorn Hour A-410 Networked Media Jukebox User Manual the apparatus has been damaged in any 3. Safety Notes way, such as power-supply cord or plug is damaged, liquid has been spilled or Read these operating instructions carefully objects have fallen into the apparatus, the before using the unit. -
Page 6: Technical Specifications
4. Technical Specifications Hardware Specifications Sigma Designs SMP8911, 800MHz Dual-Core CPU w/ 512 KB L2 Cache Memory 1024MB DDR2 DRAM, 256MB NAND Flash HDMI, Component Video, CVBS, Stereo Analog Audio, Digital AV Outputs Optical, Digital Coaxial 2 x Host USB 2.0, 1 x Slave USB 3.0, 1 x eSATA, 1 x SD Card Interfaces Reader, IR-Receiver Network... -
Page 7: Getting Started
Popcorn Hour A-410 Networked Media Jukebox User Manual 5. Getting Started 5.1 Popcorn Hour A-410 Overview VIDEO AUDIO COAXIAL 12.0V 3.5A MAX OPTICAL CVBS USB3.0 SLAVE eSATA HDMI POWER 2001-2014© Cloud Media. All Rights Reserved... -
Page 8: Connecting To Tv Via Hdmi
TV with HDMI terminal Step 1 Connect the HDMI cable to your TV HDMI terminal and the other end to your Popcorn Hour A-410. Note: Some HDMI TVs have input and output HDMI terminals. Please make sure the HDMI terminal is connected to input rather than output. -
Page 9: Connecting To Tv Via Composite
Connect the AC power cord to AC power adapter. Then plug the power cord into your wall socket and connect the power lead to Popcorn Hour A-410. Your Popcorn Hour A-410 is booting up now, check your TV for further instructions. -
Page 10: Connecting To Tv Via Component
Connect the AC power cord to AC power adapter. Then plug the power cord into your wall socket and connect the power lead to Popcorn Hour A-410. Your Popcorn Hour A-410 is booting up now, check your TV for further instructions. -
Page 11: Remote Control
Popcorn Hour A-410 Networked Media Jukebox User Manual 6. Remote Control EJECT TV MODE SETUP SUSPEND .:/@ pqrs wxyz CAPS DELETE A - B FILE MODE TIME SEEK SOURCE RETURN ENTER INFO STOP PAGE PLAY PAGE PAUSE DOWN MUTE MENU... - Page 12 In STANDBY mode: Press once to turn player ON. In ON mode: 1. Press POWER once turn player in VIDEO OFF mode (video and POWER audio are OFF, other player tasks still run). 2. Press POWER – EJECT to soft reboot player. 3.
- Page 13 Popcorn Hour A-410 Networked Media Jukebox User Manual Press HOME to return to main menu. A–B / HOME In App/Apps Market, press to quit app or apps market. During playback, this button enables or disables Repeat A/B function. FILE MODE...
- Page 14 Navigate within the user interface Partial time seek during movie playback (LEFT and RIGHT directional D PAD keys only). Display File mode menu if available (LEFT and RIGHT directional keys only). While viewing the images shifts the screen into the direction buttons pressed, stopping the sequential play, if a slideshow INFO Bring up meta-data of selected media file.
- Page 15 Popcorn Hour A-410 Networked Media Jukebox User Manual Fast-forward the current media playback. Press again to toggle 2x, 4x and 8x fast-forwarding Bring up DVD menu during playback to allow playback customization. MENU Opens menu in NMJ. During the slideshow bring up the settings menu, allowing to select...
- Page 16 Turns ON the subtitles and toggles through its options (if available with your video playback). Use AUTO for color and subtitle tags will be observed for ASS/SSA anime type subtitles. More functions of the Subtitle button: Press once for timing offset. Use the LEFT / RIGHT D-Pad buttons to set the timing offset.
-
Page 17: Introduction To Home Menu
Popcorn Hour A-410 Networked Media Jukebox User Manual 7. Introduction to Home menu The HOME screen is the main hub for accessing content from a local source (USB or internal hard drive), a network share or from the apps market. You can also view the current time and weather. -
Page 19: Quick Setup Wizard
Popcorn Hour A-410 Networked Media Jukebox User Manual 8. Quick Setup Wizard Setting up your Popcorn Hour A-410 using the setup wizard is vital for proper operation of the media player. For advance users, you may skip to Chapter 9. - Page 20 Choose your network connection type according to your setup and press the GREEN button to continue. 1) Wired (Ethernet cable). 2) Wireless (optional wireless dongle needed). For wireless connection only: Select your SSID listed and proceed.
