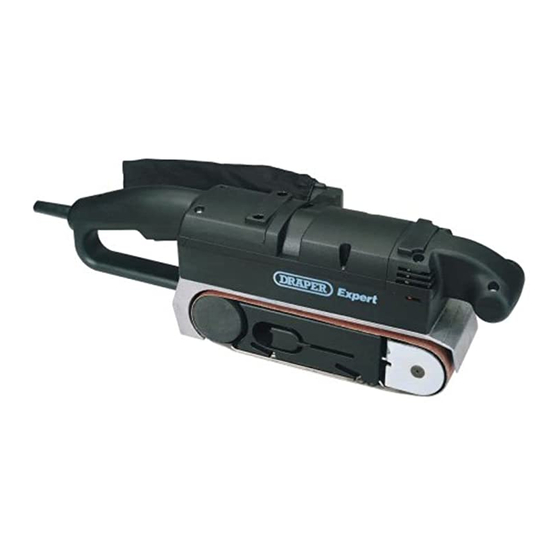

BELT SANDERS
STOCK No.57861
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment,
which should be kept with the machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use.We recommend that this manual is read before any
operation of the machine, before performing any kind of adjustment to the machine, and prior to any
maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure
both machine and operator safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation
of the machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper
Tool policy of continuous improvement determines the right to make modifications without prior warning.
57862
57860
• INSTRUCTIONS •
THE SAFE AND EFFECTIVE USE OF THIS TOOL.
GENERAL INFORMATION
110V
230V
230V
PART No.BS100
BS100
BS75
07/99
