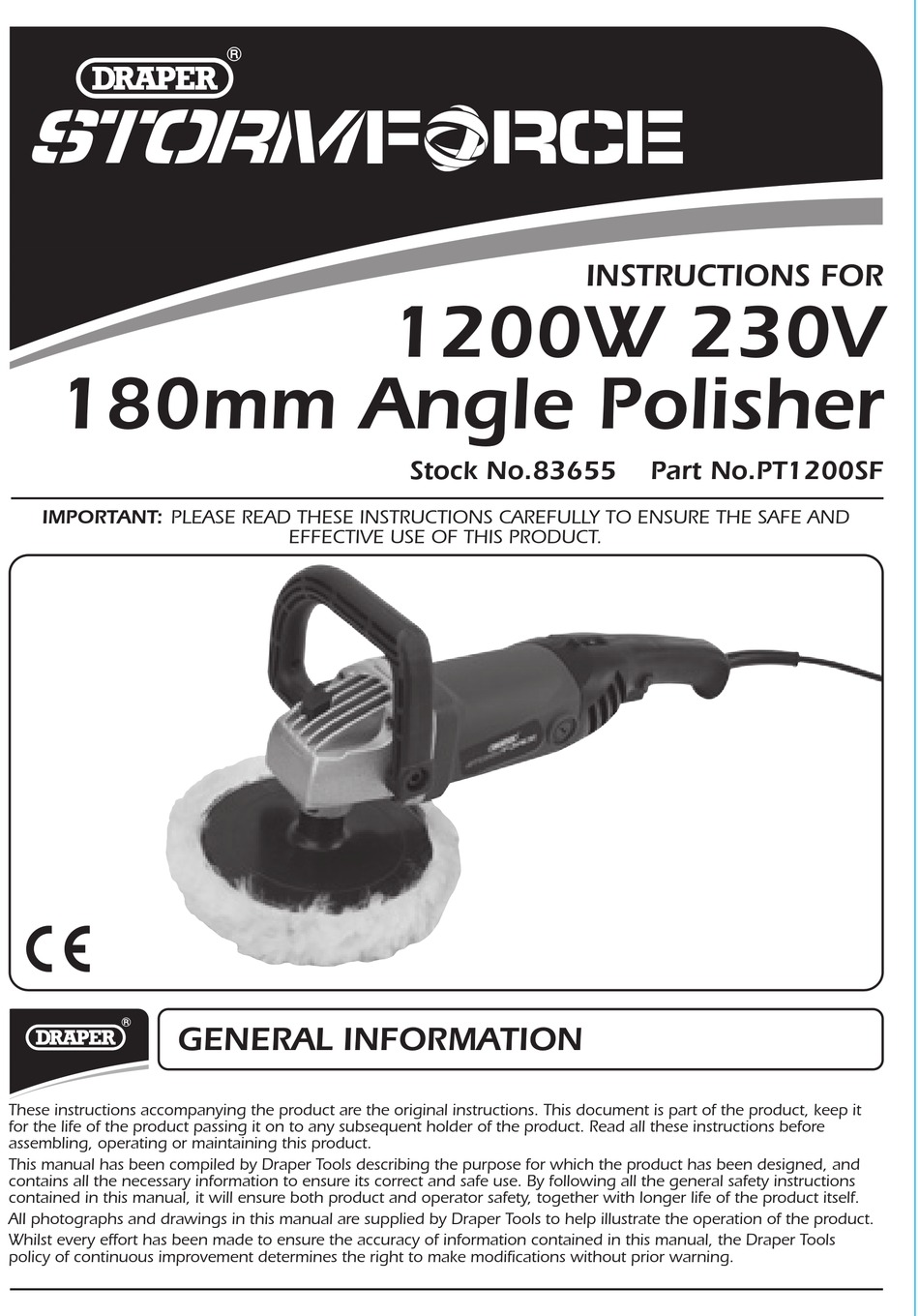

STORM
INSTRUCTIONS FOR
1200W 230V

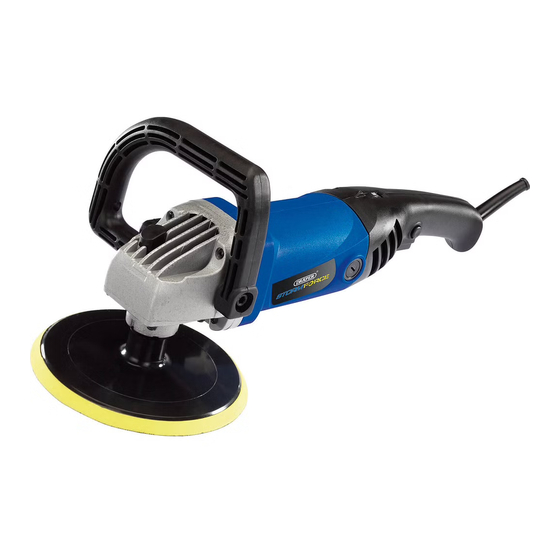

180mm Angle Polisher
Stock No.83655
Part No.PT1200SF
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.
GENERAL INFORMATION
These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Related Manuals for Draper PT1200SF
Summary of Contents for Draper PT1200SF
-
Page 1: General Information
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product. -
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
This hand held power tool uses polishing mops and foam polishing sponges in order to finish painted surfaces. Intended for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock no ..........................83655 Part no ........................PT1200SF Rated voltage: ......................230V~50Hz Rated input: ........................1200W ø Disc diameter....................... 180mm Speed (no load) .................... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS General Power Tools Safety Warnings WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool”... -
Page 7: Connection To The Power Supply
HEALTH & SAFETY INFORMATION g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards. 4) Power Tool Use And Care a) Do not force the power tool. -
Page 8: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION On/off trigger switch. Brush cover. Switch lock button. Auxiliary handle. Variable speed control. Spindle lock button. Plug and cable. Threaded spindle. Hand grip. -
Page 9: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 10: Preparing The Polisher
PREPARING THE POLISHER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. FITTING THE AUXILIARY HANDLE - FIG. 1 Choose the best orientation to suit operator comfort and application in hand. Pass the two hex. head bolts through the handle and into the threaded apertures in the... -
Page 11: Operating The Polisher
Read the manufacturers instructions regarding this. No responsibility or liability is accepted by Draper Tools regarding the setting of the correct speed for the job to be done. The speed settings are approximately as per table below. -
Page 12: Maintenance
10. MAINTENANCE 10.1 MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. If replacement of the supply cord is necessary this has to be done by the manufacturer or his agent in order to avoid a safety hazard. -
Page 13: Explanation Of Symbols/Pictograms
13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Warning! Wear dust mask. Warning! Read the instruction manual Warning! Warning! Wear suitable eye/face Wear ear defenders. protection. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated). - Page 14 NOTES...
- Page 15 NOTES...
- Page 16 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Help Line for details of an agent in your local area. YOUR DRAPER STOCKIST RDCH0816...
