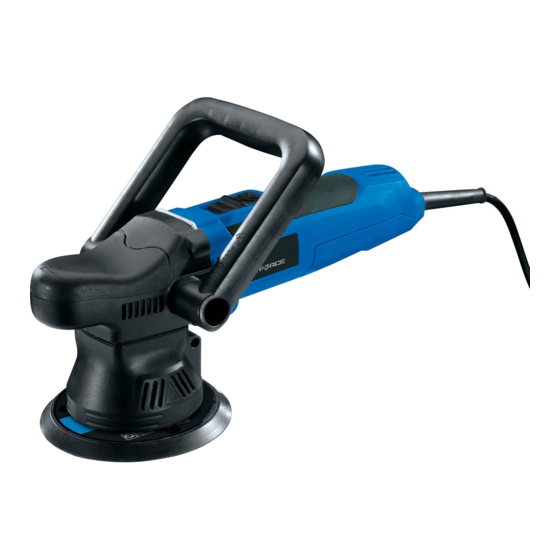

650W 230V
125mm DUAL ACTION
POLISHER
01816
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Storm Force DA650SF and is the answer not in the manual?

Questions and answers

Related Manuals for Draper Storm Force DA650SF

Summary of Contents for Draper Storm Force DA650SF

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Title Page

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    2. CONTENTS 2.1 CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION ......................... 2 1.2 REVISION HISTORY ......................2 1.3 UNDERSTANDING THIS MANUAL..................2 1.4 COPYRIGHT NOTICE......................2 2. CONTENTS 2.1 CONTENTS ......................... 3 3. GUARANTEE 3.1 GUARANTEE ........................4 4. INTRODUCTION 4.1 SCOPE ..........................5 4.2 SPECIFICATION .........................

  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction

    4. INTRODUCTION 4.1 SCOPE This hand-held power tool uses polishing mops and foam polishing sponges for paint work correction It is intended for domestic and light commercial use only. Any other application is considered misuse. 4.2 SPECIFICATION Stock No........................... 01816 Part No.

  • Page 6: Health And Safety Information

    5. HEALTH AND SAFETY INFORMATION Have this tool repaired by a qualified person. This tool is designed to conform to the relevant international and local standards and as such should be maintained and repaired by someone qualified; using only original parts supplied by the manufacturer: This will ensure the tool remains safe to use.
  • Page 7 5. HEALTH AND SAFETY INFORMATION 3) Personal safety continued... e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.

  • Page 8: Specific Safety Instructions For Polishers

    5. HEALTH AND SAFETY INFORMATION 5.2 SPECIFIC SAFETY INSTRUCTIONS FOR POLISHERS Safety Warnings Common for Polishing Operations: A) This power tool is intended to function as a polisher. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
  • Page 9 5. HEALTH AND SAFETY INFORMATION 5.2 SPECIFIC SAFETY INSTRUCTIONS FOR POLISHERS Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.

  • Page 10: Connection To The Power Supply

    5. HEALTH AND SAFETY INFORMATION 5.3 CONNECTION TO THE POWER SUPPLY Make sure the power supply information on the machine’s rating plate is compatible with the power supply you intend to connect it to. This product comes supplied with a UK standard 3 pin plug fitted. It is designed for connection to a domestic power supply rated at 230V AC.

  • Page 11: Technical Description

    6. TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Main handle. Variable speed control. On/off trigger switch. Plug and cable (5.0M). Tool body. Wrench. Hook and loop backing pad. Hexagon key. Polishing pad. - 11 -...

  • Page 12: Unpacking And Checking

    Lay the contents out and check them against the parts shown on page 8. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the product.

  • Page 13: Preparing The Polisher

    8. PREPARING THE POLISHER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. 8.1 ADJUSTING THE AUXILIARY HANDLE - FIG. 1 Choose the best orientation to suit operator comfort and application in hand. Loosen the two hex. head bolts through each side of the handle .

  • Page 14: Operating The Polisher

    FIG.6 paste/compound or polish being used. Read the manufacturers instructions regarding this. No responsibility or liability is accepted by Draper Tools regarding the setting of the correct speed for the job to be done. The speed settings are approximately as per table below.

  • Page 15: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE Periodically blow out all air passages with dry compressed air. Wear safety glasses while using compressed air. All plastic parts should be cleaned with a soft damp cloth. NEVER use solvents to clean plastic parts, because these can cause damage to the item. If anything unusual happens during use of the item then turn the item off.

  • Page 16: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: ●...

  • Page 17: Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Class II construction. Read the instruction manual. (Double insulated). WEEE – Waste Electrical & Wear safety glasses and dust mask. Electronic Equipment. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish.
  • Page 18 NOTES - 18 -...
  • Page 19 NOTES - 19 -...
  • Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
