INSTRUCTIONS FOR
450W 230V
Bench Mounted Bobbin Sander
Stock No.10773
Part No.BBS450A
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND
EFFECTIVE USE OF THIS PRODUCT.

GENERAL INFORMATION

These instructions accompanying the product are the original instructions. This document is part of the product, keep it
for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed, and
contains all the necessary information to ensure its correct and safe use. By following all the general safety instructions
contained in this manual, it will ensure both product and operator safety, together with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools policy
of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBS450A and is the answer not in the manual?

Questions and answers

Related Manuals for Draper BBS450A

Summary of Contents for Draper BBS450A

  • Page 1: General Information

    AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3 CONTENTS 2.1 CONTENTS PAGE CONTENT PAGE TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY....................2 UNDERSTANDING THIS MANUAL ...............2 COPYRIGHT NOTICE....................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ......................4 INTRODUCTION SCOPE ........................5 SPECIFICATION ......................5 HANDLING & STORAGE ..................5 HEALTH & SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE .........6-8 CONNECTION TO THE POWER SUPPLY..............8 TECHNICAL DESCRIPTION IDENTIFICATION ....................9...

  • Page 4: Guarantee 3.1 Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction 4.1 Scope

    4.1 SCOPE The bobbin sander is a versatile machine allowing various finishing tasks to be undertaken. 4.2 SPECIFICATION Stock no ........................... 10773 Part no ..........................BBS450A Rated voltage ......................... 230V~50Hz Rated input ..........................450W Revolutions per minute ......................2000 Oscillations per minute ......................... 58 Oscillations travel ........................

  • Page 6: General Safety Instructions For Power Tool Use

    HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully.
  • Page 7 HEALTH & SAFETY INFORMATION Wear personal protective equipment (PPE). Dust, noise, vibration and swarf can all be dangerous if not suitably protected against. If the work involving the power tool creates dust or fumes; wear a dust mask. Vibration to the hand, caused by operating some tools for longer periods must be protected against.
  • Page 8 HEALTH & SAFETY INFORMATION Have this tool repaired by a qualified person. This tool is designed to confirm to the relevant international and local standards and as such should be maintained and repaired by someone qualified; using only original parts supplied by the manufacturer: This will ensure the tool remains safe to use.

  • Page 9: Technical Description 6.1 Identification

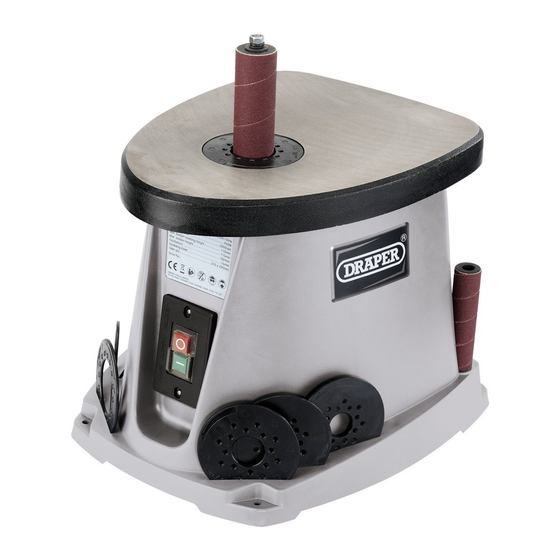

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION No-volt on/off switch. Worktable. Spindle. Dust extraction outlet.

  • Page 10: Unpacking & Checking 7.1 Packaging

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.

  • Page 11: Bobbin Storage

    SETTING THE SANDER NOTE: Remove the plug from the socket before carrying out adjustment, servicing or maintenance. TOOL HOLDERS The sander comes equipped with two sets of holders, one for the bobbins when not in use, the other for the table inserts. BOBBIN STORAGE - FIG.

  • Page 12: Operating The Sander 9.1 Dust Extraction

    OPERATING THE SANDER DUST EXTRACTION - FIG. 4 FIG.4 Inhalation of dust particles can be detrimental to health. The dust outlet must be connected with a dust extraction machine. NOTE: Due to the outlet diameter, a size adaptation may be necessary. All wood dust (including dust from composites like chipboards and fibre boards etc.) is hazardous to health: it can affect the nose, the respiratory system...

  • Page 13: Spindle Set-Up

    OPERATING THE SANDER SPINDLE SET-UP - FIGS. 5 - 7 FIG.5 Slide the selected bobbin over the spindle Attach the washer retaining ring FIG.6 loosely screw on the nut Slide the required sleeve over the bobbin and FIG.7 tighten nut using spanner. TABLE INSERT - FIG.

  • Page 14: Optional Accessories 10.1 Optional Accessories

    10. OPTIONAL ACCESSORIES 10.1 OPTIONAL ACCESSORIES Stock No. Part No. Sizes Description 13801 APT5SD Assorted Set of 6 sanding sleeves 25186 APT5SPA 12.7mm Sanding sleeve 25187 APT5SPB 19mm Sanding sleeve 25188 APT5SPC 25.4mm Sanding sleeve 25189 APT5SPD 38.1mm Sanding sleeve 25190 APT5SPE 50mm...

  • Page 15: Maintenance

    11. MAINTENANCE Regular inspection and cleaning reduces the necessity for maintenance operations and will keep your tool in good working condition. The motor must be correctly ventilated during tool operation. For this reason avoid blocking the air inlets. After use disconnect the tool from the power supply and vacuum the ventilation slots.

  • Page 16: Disposal 12.1 Disposal

    12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...

  • Page 17: Explanation Of Symbols 13.1 Explanation Of Symbols

    13. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS Warning! Read the instruction manual Warning! Do NOT wear gloves. Warning! Wear goggles. Warning! Wear dust mask. WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Double insulated.
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST DKKC1015...
