Page 1: Micro Component System

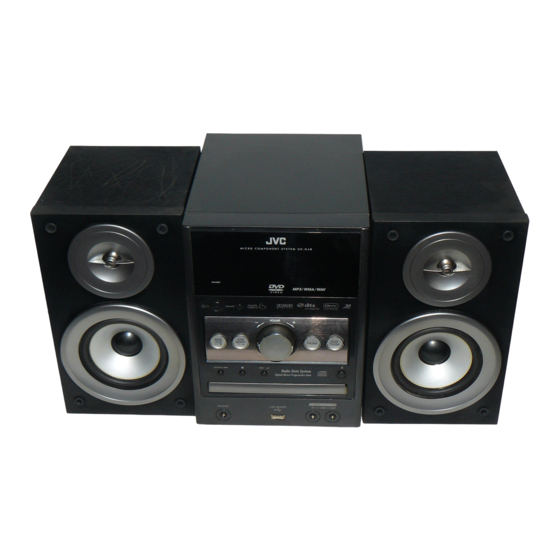

MICRO COMPONENT SYSTEM UX-G48 —Consists of CA-UXG48 and SP-UXG48 SUPER VIDEO INSTRUCTIONS GVT0226-006A [US/UN/UB/UG/UX/UH/A/UW]... - Page 2 Warnings, Cautions and Others CAUTION— (Standby/on) button! Disconnect the mains plug to shut the power off completely (the STANDBY lamp goes off). When installing the apparatus, ensure that the plug is easily accessible. The (Standby/ on) button in any position does not disconnect the mains line. •...
- Page 3 CAUTION: Excessive sound pressure from earphones or headphones can cause hearing loss. [European Union only] Caution: Proper Ventilation To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1. Front: No obstructions and open spacing. 2.
- Page 4 Introduction Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the System. Precautions Playable Disc/File Types Installation • Install the System in a location with adequate ventilation to prevent internal heat build-up in the System.
-
Page 5: Table Of Contents
Indicates that you press and hold the button OPTICAL DIGITAL OUT Signals........38 sec. for a specified period. Operating JVC’s TVs Using the Remote Control..... 38 Specifications ..............39 Parts Index ............40 Indicates that you turn the control in the specified direction(s). -
Page 6: Connections
Connections Do not connect the power cord until all other Supplied accessories connections have been made. Check to be sure that you have all the following items. • FM antenna (x1) • Connect VIDEO OUT directly to the video input of your •... - Page 7 Ÿ AM/FM antenna Speakers To assemble the AM loop antenna • When connecting the speaker cords, match the polarity of the speaker terminals: red to (+) and black to (–). Press and hold To connect AM/FM antenna AM loop antenna (supplied) Turn it until the best reception is obtained.
-
Page 8: Preparing The Remote Control
• You can connect a USB mass storage class device such as a To connect the powered subwoofer USB flash memory device, hard disk drive, multimedia card reader, etc. to this System. • You cannot connect a computer to the USB MEMORY terminal of the System. -
Page 9: Display Indicators
Display Indicators The indications on the display tell you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicators illuminate on the display. 6 7 8 1 HP SUR (Headphone Surround) indicator p Radio band indicators •... -
Page 10: Daily Operations-Playback
Daily Operations —Playback Turn on the power. In this manual, operations using the remote control are mainly explained; however, you can use the buttons The STANDBY lamp on the main unit turns off. and controls on the main unit if they have the same (or •... -
Page 11: Listening To The Radio
To select the band (FM or AM) How to select a number Examples: DIMMER SLEEP A.STANDBY To select number 5, press 5. To select number 10, press 10. 3D P/HP S C.VOICE CLOCK/TIMER To select number 15, press 10, 1, ZOOM ANGLE SCAN MODE... -
Page 12: Playing Back A Disc/Usb Mass Storage Class Device
Playing Back a Disc/USB mass storage Remote To preset the stations ONLY You can preset 30 FM and 15 AM stations. class device INFO Tune in to a station you want to preset. IMPORTANT: Before playing a disc/file, make sure •... - Page 13 To play back a disc/USB mass storage class On-screen guide icons device • During playback, the following icons may appear on the To start: At the beginning of a scene containing Disc USB mass storage class device multi-angle views. DVD/CD MEMORY At the beginning of a scene containing multi-audio sounds.
- Page 14 Remote To select a chapter/track/file To play back using the disc menu ONLY 7 For DVD Video: • For VCD/SVCD, cancel PBC (see the right column). While playing... Show the disc menu. • When you press 4 for the TOP MENU/PG MENU/PL GROUP/TITLE SKIP first time, you will go back to...
-
Page 15: Playing Back A Digital Audio Player
While QP Link is playing the device... Playing Back a Digital Audio Player INFO • For connecting a digital audio player, see page 5. Bubbles appear when QP Link is working. To listen to digital audio player You can listen to the digital audio player connected to the LINE IN jack. -
Page 16: Daily Operations-Sound & Other Adjustments
Daily Operations —Sound & Other Adjustments Remote ONLY To drop the volume in a moment Remote control To restore the volume, press again, or FADE MUTING adjust the volume level. SLEEP DIMMER A.STANDBY 3D P/HP S CLOCK/TIMER C.VOICE SCAN MODE Adjusting the Sound CANCEL INFO... -
Page 17: Creating 3-Dimensional Sound Field-3D Phonic
Creating 3-Dimensional Sound Field Making Dialogues Clear—Clear Voice Remote ONLY Remote When you play back a disc or USB mass storage class —3D Phonic ONLY device, you can make the singer’s voices or dialogues of the • This only functions while listening to disc/USB mass movie clear—Clear Voice. -
Page 18: Changing The Color System And Scanning Mode
Select a preset picture tone. Changing the Color System and NORMAL CINEMA Remote Scanning Mode INFO ONLY USER2 USER1 You can select the video output to match it to the color system of your TV (NTSC or PAL). • If you connect a progressive TV through the COMPONENT VIDEO OUT jacks, you can enjoy a high Normally select this. -
Page 19: Setting The Clock
Remote Remote Setting the Clock Turning Off the Power Automatically INFO ONLY ONLY Without setting the built-in clock, you cannot use Daily Auto Standby Timers (see page 28). • This only functions while playing a disc/USB mass storage • To exit the clock settings, press CLOCK/TIMER (while class device/digital audio player (with QP Link activated). -
Page 20: Unique Video Disc/File Operations
Unique Video Disc/File Operations Selecting the Audio Track Remote INFO ONLY Remote control For DivX files/DVD Video: While playing back a chapter/ file containing several audio languages, you can select the language to listen to. For DVD-VR/SVCD/VCD: While playing back a track, you can select the audio channel to listen to. -
Page 21: Selecting The Subtitle Language
Selecting the Subtitle Language Remote Selecting the View Angle Remote ONLY ONLY For DivX files/DVD Video: While playing back a chapter/ For DVD Video only: While playing back a chapter file containing subtitles in different languages, you can containing multi-view angles, you can view the same scene select the subtitle language to display on the TV. -
Page 22: Special Effect Playback
Remote To replay the previous scenes ONLY Special Effect Playback INFO (One-Touch Replay) Still picture playback • This function is only used while playing DVD Video/ DVD-VR. To display the still To resume normal playback: While playing..picture: The playback position moves While playing... -
Page 23: Advanced Playback Operations
Advanced Playback Operations Select chapters/tracks/files you want for Program Play. Remote control 1 For DVD Video and MP3/WMA/WAV files: Select a title or group number. Number buttons 2 Select a chapter or track/file number. • To select a number, see “How to select a number” on CANCEL page 8. -
Page 24: Playing At Random-Random Play
To modify the program To skip a chapter/ To pause: To stop: Before or after playback... track: To erase the last step: To release, press CANCEL DVD/CD 3. To exit Random Play Before or after playback... (while holding...) FM/PLAY To erase the entire program: To add another step in MODE PROGRAM RANDOM... -
Page 25: Prohibiting Disc Ejection-Child Lock
• For DVD-VR: A-B Repeat While playing an Original Program... You can repeat playback of a desired portion by specifying the beginning (point A) and the ending (point B). REPEAT A-B • A-B Repeat cannot be used for MP3/WMA/WAV/JPEG/ REPEAT REP CHAP REP PG MPEG-1/MPEG-2/DivX files and some DVDs. -
Page 26: On-Screen Operations
On-Screen Operations Remote control TRACK 3 TOTAL TIME 0:00:58 1:25:58 TITLE CHAP PROGRAM TIME TIME Number buttons MENU/PL TIME 0:00:58 1:25:58 TOP MENU/PG TITLE CHAP TRACK 3 TOTAL RANDOM ENTER/SET TIME TIME ON SCREEN USB MEMORY 3 DVD/CD 3 MPEG-1/MPEG-2/DivX files on a disc Time 00:00:58 CHAP TOTAL... -
Page 27: Repeat Play
To operate using the On-screen Bar To change the time information Ex.: Selecting a subtitle (French) for DVD Video You can change the time information on the on-screen bar and the display window on the main unit. While “DVD/CD” is selected as the source... While playing, display the entire on-screen bar. -
Page 28: Time Search
Select the repeat mode you want. Time Search You can move to a particular point by specifying the elapsed Repeats a desired portion (see below). playing time from the beginning. TITLE* Repeats the current title. • This function is not available during Program Play and Repeats the disc (not applicable for Random Play. -
Page 29: Operations On The Control Screen
Chapter Search Ex.: When Original Program is selected. For DVD Video/DVD-VR: You can search for the chapter number to play. ORIGINAL PROGRAM • This function is not available during Program Play and No Date Time Title 1 03/12/06 12:15 La fleur Random Play. - Page 30 To move the highlight bar between group list and file list Control screen for MP3/WMA/WAV/JPEG/MPEG- 1/MPEG-2/DivX files Moves the bar to the file list. The control screen automatically appears on the TV screen when the System detects MP3/WMA/WAV/JPEG/MPEG- 1/MPEG-2/DivX files on the loaded disc or connected USB Moves the bar to the group mass storage class device.
-
Page 31: Daily Timer Operations
Daily Timer Operations Select one of the timer setting modes you want to set— DAILY 1 ON time, DAILY 2 ON time, or DAILY 3 Remote control ON time. CLOCK/TIMER AUDIO CLOCK/TIMER (while holding...) CANCEL Daily Timer 2 Daily Timer 3 Daily Timer 1 DAILY 1 ON (Time) DAILY 2 ON (Time) - Page 32 Turn off the System (on standby), if you have set the To turn on or off the Daily Timer timer with the System turned on. Since Daily Timer is activated at the same time everyday, you may need to cancel it on some particular days. To cancel the Daily Timer Select the Timer (DAILY 1, DAILY 2, or DAILY 3) you want to cancel.
-
Page 33: Setup Menu Operations
Setup Menu Operations INFO Remote Initial settings ONLY Remote Control You can change the settings of the System. • The Setup Menu can be used only when “DVD/CD” or “USB MEM” is selected as the source. Press SET UP while playback is stopped. LANGUAGE MENU LANGUAGE ENGLISH... -
Page 34: Audio Menu
AUDIO menu Item Contents Set this item correctly when using the OPTICAL DIGITAL OUT terminal on the rear. DIGITAL AUDIO OUTPUT PCM ONLY: When connecting to audio equipment which is compatible with only linear PCM signals. DOLBY DIGITAL/PCM: When connecting to a Dolby Digital decoder or an amplifier with a built- in Dolby Digital decoder. -
Page 35: Additional Information
System and the device. Then wait at least 30 minutes before turning on the TV’s – JVC bears no responsibility for any loss of data in the main power switch again. USB mass storage class device while using this System. - Page 36 • For DVD-VR playback... • For MPEG-1/MPEG-2 playback... – This System can play only a disc of UDF-Bridge format. – This System can play back MPEG-1/MPEG-2 files with – For details about DVD-VR format and Play List, refer to the extension code <.mpg> or <.mpeg> (regardless of the the manual of the recording equipment.
- Page 37 Playing Back a Digital Audio Player: Changing the Color System and Scanning Mode: • When QP Link fails due to a weak sound signal from the • If you play back an NTSC disc/file with the color system LINE IN jack, Auto Standby may turn the System off even set to “PAL (PRG),”...
-
Page 38: Maintenance
On-Screen Operations (see pages 23 to 27) Maintenance On-screen Bar Operations: To get the best performance of the System, keep your discs • For DVD-VR, “PG” or “PL” appears instead of “TITLE” and mechanism clean. on the on-screen bar. Handling discs Daily Timer Operations (see pages 28 and 29) •... -
Page 39: Troubleshooting
MP3, WMA, WAV, JPEG, MPEG-1, MPEG-2 or DivX Troubleshooting files are not played back. ] The disc or the USB mass storage class device may General: contain different types of files (ex. MP3/WMA/WAV/ Adjustments or settings are suddenly canceled before JPEG). -
Page 40: Language Code List
Language Code List Kazakh Serbian Afar Greenlandic Siswati Abkhazian Cambodian Sesotho Afrikaans Kannada Sundanese Ameharic Korean (KOR) Swedish Arabic Kashmiri Swahili Assamese Kurdish Tamil Aymara Kirghiz Telugu Azerbaijani Latin Tajik Bashkir Lingala Thai Byelorussian Laothian Tigrinya Bulgarian Lithuanian Turkmen Bihari Latvian, Lettish Tagalog Bislama... -
Page 41: Optical Digital Out Signals
* While playing some DVDs, digital signals may be emitted at 20 bits or 24 bits (at their original bit rate) through the OPTICAL DIGITAL OUT terminal if the discs are not copy-protected. Operating JVC’s TVs Using the Remote Control You can use the remote control to operate JVC’s TVs. Remote control Turn on/off TV. -
Page 42: Specifications
USB section Specifications Playable files: MP3/WMA/WAV/JPEG/MPEG-1/ MPEG-2/DivX format Amplifier section—CA-UXG48 USB specification: Compatible with USB 2.0 Full Speed Output Power: 40 W (20 W + 20 W) at 6 Ω (10% THD) Compatible device: Mass storage class Audio Input LINE IN: Compatible system: FAT16, FAT32 500 mV/50 kΩ... -
Page 43: Parts Index
ON SCREEN QP LINK REPEAT REPEAT A-B RETURN SCAN MODE This remote control can also operate JVC’s TVs SET UP (see page 38). SHIFT 7, 10, 11, 13 – 16, 18, 19, 21, 22, 28, 29, 38 SLEEP SLOW 9 , (... - Page 44 0707WMKMDCJMM © 2007 Victor Company of Japan, Limited...
