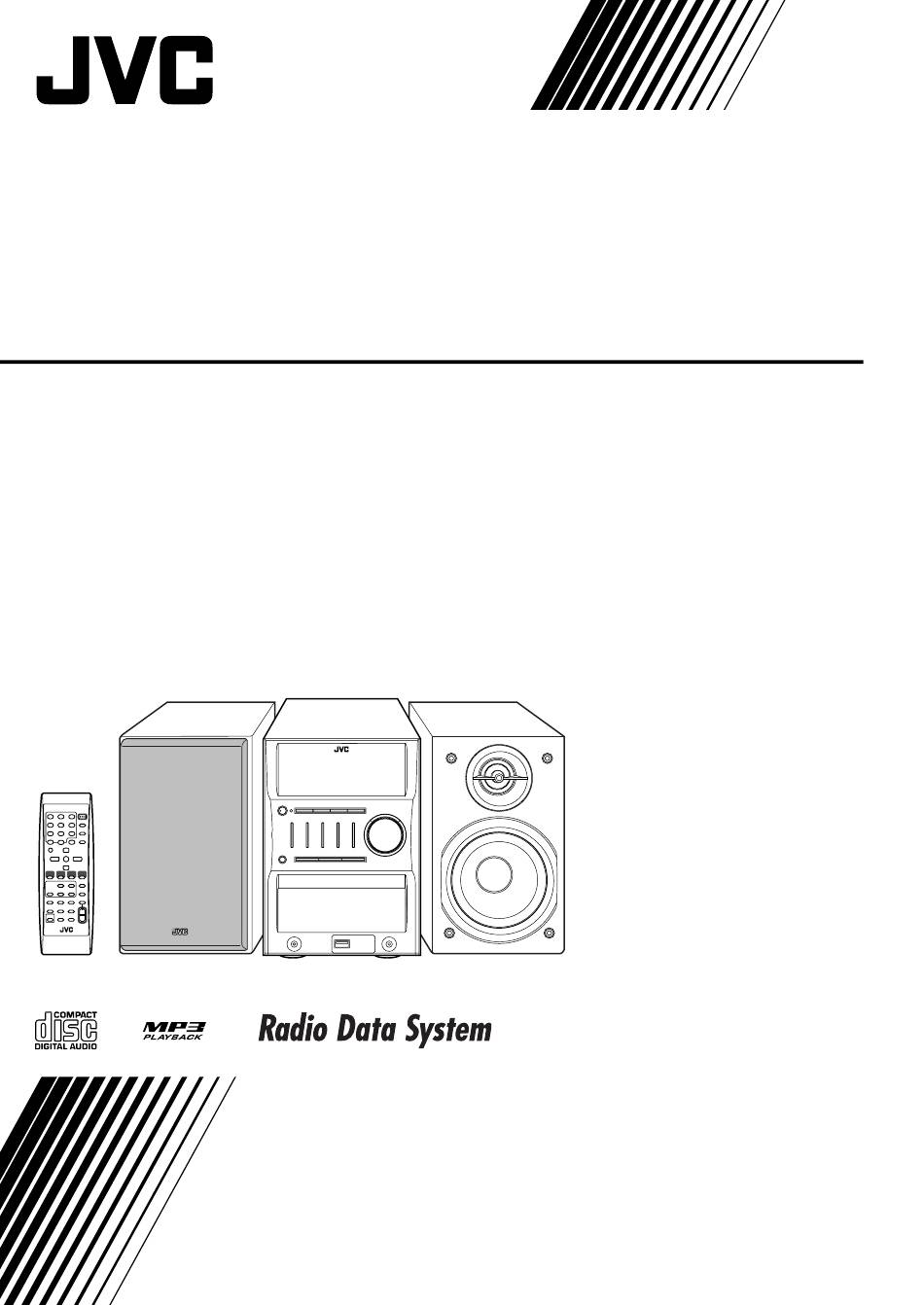

- Page 1 MICRO COMPONENT SYSTEM UX-G46 —Consists of CA-UXG46 and SP-UXG46 INSTRUCTIONS LVT1730-001A...
-
Page 2: Warnings, Cautions And Others
Warnings, Cautions and Others IMPORTANT for the U.K. DO NOT cut off the mains plug from this equipment. If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer. - Page 3 This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of Victor Company of Japan, Limited is: JVC Technology Centre Europe GmbH P.O. Box 10 05 52 61145 Friedberg Germany...
- Page 4 SAFETY INSTRUCTIONS “SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT” This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. Do read the operating instructions before you attempt to use the equipment.
-
Page 5: Table Of Contents
Contents Introduction ............ 2 Precautions..............2 How to Read This Manual..........3 Getting Started ..........4 Step 1: Unpack..............4 Step 2: Prepare the Remote Control ....... 4 Step 3: Hook Up ............. 5 Before Operating the System ......8 Daily Operations—Playback ...... -
Page 6: Precautions
Introduction Internal heat Thank you for purchasing the JVC Micro Component System. • A cooling fan is mounted on the rear panel to prevent heat We hope it will be a valued addition to your home, giving buildup inside the main unit (see page G-2). -
Page 7: How To Read This Manual
How to Read This Manual To make this manual as simple and easy-to-understand as possible, we have adapted the following methods: • Button and control operations are explained as listed in the table below. In this manual, the operations using the remote control is mainly explained;... -
Page 8: Getting Started
Getting Started Step 1 Step : Unpack :Unpack the package and check the accessories. After unpacking, check to be sure that you have all the following items. The number in parentheses indicates the quantity of each piece supplied. • FM antenna (1) •... -
Page 9: Step 3: Hook Up
Step : Hook Up If you need more detailed information, see page 7. For more detailed information on connecting external equipment, see page 13. Illustrations of the input/output terminals below are typical examples. When you connect other components, refer also to their manuals since the terminal names actually printed on the rear may vary. - Page 10 FM antenna (supplied) Extend it so that you can obtain the best reception. AM loop antenna (supplied) Turn it until the best reception is obtained. E X T L O O P G N D Black striped Non-striped...
- Page 11 To assemble and connect the AM loop antenna To connect the AM loop antenna Make sure to connect the wire correctly: The white end to To assemble the AM loop antenna AM EXT, the black end to GND. 1 Hold 3 Release 2 Insert •...
-
Page 12: Before Operating The System
Before Operating the System The indications on the display teach you a lot of things while you are operating the System. Before operating the System, be familiar with when and how the indicator illuminates on the display. 1 Play mode indicators 3 4 5 •... -
Page 13: Daily Operations-Playback
Daily Operations —Playback Turn on the power. The STANDBY lamp on the main unit turns off. • Without pressing STANDBY/ON , the System turns on by pressing one of the source selecting Numeric buttons in the next step. SET/ buttons RESUME Select the source. -
Page 14: Listening To The Radio
Listening to the Radio Remote To preset the stations ONLY You can preset 30 FM and 15 AM stations. To select the band (FM or AM) Tune in to a station you want to preset. Activate the preset number entry mode. SET/RESUME You can also carry out the same operation using the FM or AM buttons on the System. -
Page 15: Playing Back A Disc
Remote ONLY To tune in to a preset station To start: To pause: To stop: Select a band (FM or AM). To release, press again. Select a preset number for the station you store. To select a track/group* • You can also use the Increases the track/group* PRESET UP or numbers. - Page 16 Resume Play for Audio CD/MP3/USB mass IMPORTANT storage class device • You cannot send any data to your USB mass storage If you press 7 during playback, the position of the track class device from this System. where you stopped playback will be memorized by the unit. •...
-
Page 17: Playing Back Other Equipment
Remote Playing Back Other Equipment Quick Portable Link (QP Link) ONLY If you connect other equipment such as a digital audio player To connect other equipment to the AUX terminal and play it back, the source By using an stereo mini plug cord (not supplied), you can automatically changes to AUX. -
Page 18: Daily Operations-Sound
Daily Operations —Sound & Other Adjustments Adjusting the Volume Remote control You can adjust the volume level from level 0 (VOL-MIN) to level 31 (VOL-MAX). Remote control: Main unit: VOLUME SET/RESUME CANCEL VOLUME CLOCK/ DISPLAY TIMER Remote ONLY PRESET UP, To drop the volume in a moment PRESET DOWN To restore the volume, press again, or... -
Page 19: Changing The Display Brightness-Dimmer
Adjust the minute. Changing the Display Brightness—DIMMER PRESET UP You can dim the display window. SET/RESUME DIMMER DIM ON PRESET DOWN DIM OFF (Canceled) “CLOCK OK” appears and the built-in clock starts working. Setting the Clock Remote ONLY To check the current time during play Without setting the built-in clock, you cannot use the Daily Timer (see page 22). -
Page 20: Turning Off The Power Automatically
Turning Off the Power Remote Automatically ONLY To turn off the System after playback is over— Auto Standby This function works only when the source is CD. A.STANDBY A.STBY Canceled (No indication) When Auto Standby is in use, the A.STBY indicator lights on the display. -
Page 21: Advanced Radio Operations
Advanced Radio Operations To show the Radio Data System information While listening to an FM station... Remote control DISPLAY MODE Station Frequency Station names is displayed. “NO PS” will appear if no signal is sent. The broadcast program type is displayed. “NO PTY”... -
Page 22: Switching Temporarily To A Program Of Your Choice Automatically
Start searching. How the Enhanced Other Networks function actually works: SEARCH CASE 1 If a station is not broadcasting the program of your choice The System continues tuning in to the current station. Ç When a station broadcasting the program of your choice, the System automatically switches to the station. -
Page 23: Advanced Disc/Usb Mass Storage Class Device Operations
Advanced Disc/USB mass storage class device Operations Programming the Playing Order— Remote control Remote Program Play ONLY You can arrange the playing order of the tracks (up to 32) before you start playback. • Program play can be used only in MP3 TRACK mode. •... -
Page 24: Playing At Random-Random Play
To check the programmed contents Playing at Random—Random Play Remote ONLY While the PRGM indicator is shown on the display and before playback... You can play back all the tracks on the selected disc, USB mass storage class device at random. In the programmed order. -
Page 25: Playing Repeatedly-Repeat Play
Main Unit Playing Repeatedly—Repeat Play Remote Prohibiting Disc Ejection—Child Lock ONLY ONLY You can repeat playback. You can lock the disc trays so that no one can eject the loaded discs. For CD/MP3(TRACK mode): • This is possible while the System is on standby. REPEAT While the disc trays are closed... -
Page 26: Timer Operations
Timer Operations Setting the Timer Remote ONLY Remote control Using Daily Timer, you can wake up with music, etc. • You can store three Daily Timer settings; however, you can activate only one of Daily Timers at the same time. •... - Page 27 To turn off the Timer after its setting is done Make the timer setting as you want. 1 Set the hour then the minute for on-time. Since Daily Timer is activated at the same time everyday, PRESET UP you may need to cancel it on some particular days. SET/RESUME Select the Timer you want to cancel.
-
Page 28: Additional Information
Additional Information Quick Portable Link (QP Link) Learning More about This System • The system holds the On/Off status of QP Link even when the AC Power cord is connected or removed. Daily Operations—Playback (see pages 9 to 13) • The source remains at AUX when you stop the other Listening to the Radio: equipment such as a digital audio player. -
Page 29: Troubleshooting
PHONE IN: Programs where people can express their Troubleshooting views either by phone or in a public form TRAVEL: Programs about travel destinations, package If you are having a problem with your System, check this list tours, and travel ideas and opportunities for a possible solution before calling for service. -
Page 30: Maintenance
Timer Operations: Specifications Daily Timer does not work. ] The System has been turned on when the on-time comes. Amplifier section Timer starts working only when the System is turned off. Output Power: 80 W per channel, min. RMS, driven into 6 Ω at 1 kHz with no Maintenance more than 10% total harmonic distortion. -
Page 31: Parts Index
Parts Index Refer to the pages to see how to use the buttons and controls. Remote control 9, 23 10, 12, 13, 15, 23 STANDBY/ON 20, 22, 23 10, 11, 19 SET/RESUME CANCEL 15, 22, 23 DISPLAY CLOCK /TIMER MP3 MODE PRESET UP 10, 15, 23 10–12,... - Page 32 Main unit 9, 14, 15 9, 23 9, 14 9–13, 19, 20 11, 21 10–12, 19, 20, 21 11, 12...
- Page 33 © 2007 Victor Company of Japan, Limited 0207NYMCREBET...
