Connecting the FC-10Dxl Composite-YC-Component Transcoder

5 Connecting the FC-10Dxl Composite-YC-Component
Transcoder
To connect the FC-10Dxl, as the example in Figure 2 illustrates, do the
1
following :
1. Connect one or both of the following sources:
A composite video source (for example, a camera) to the CV INPUT
RCA connector
A Y/C source (for example, an s-Video player) to the 4-pin INPUT
connector
2. Connect the Y/G, B-Y/B/CV, and R-Y/R/C RCA connectors to the
component video acceptor (for example, a projector)
3. Connect the 12V DC power adapter to the power socket and connect the
adapter to the mains electricity

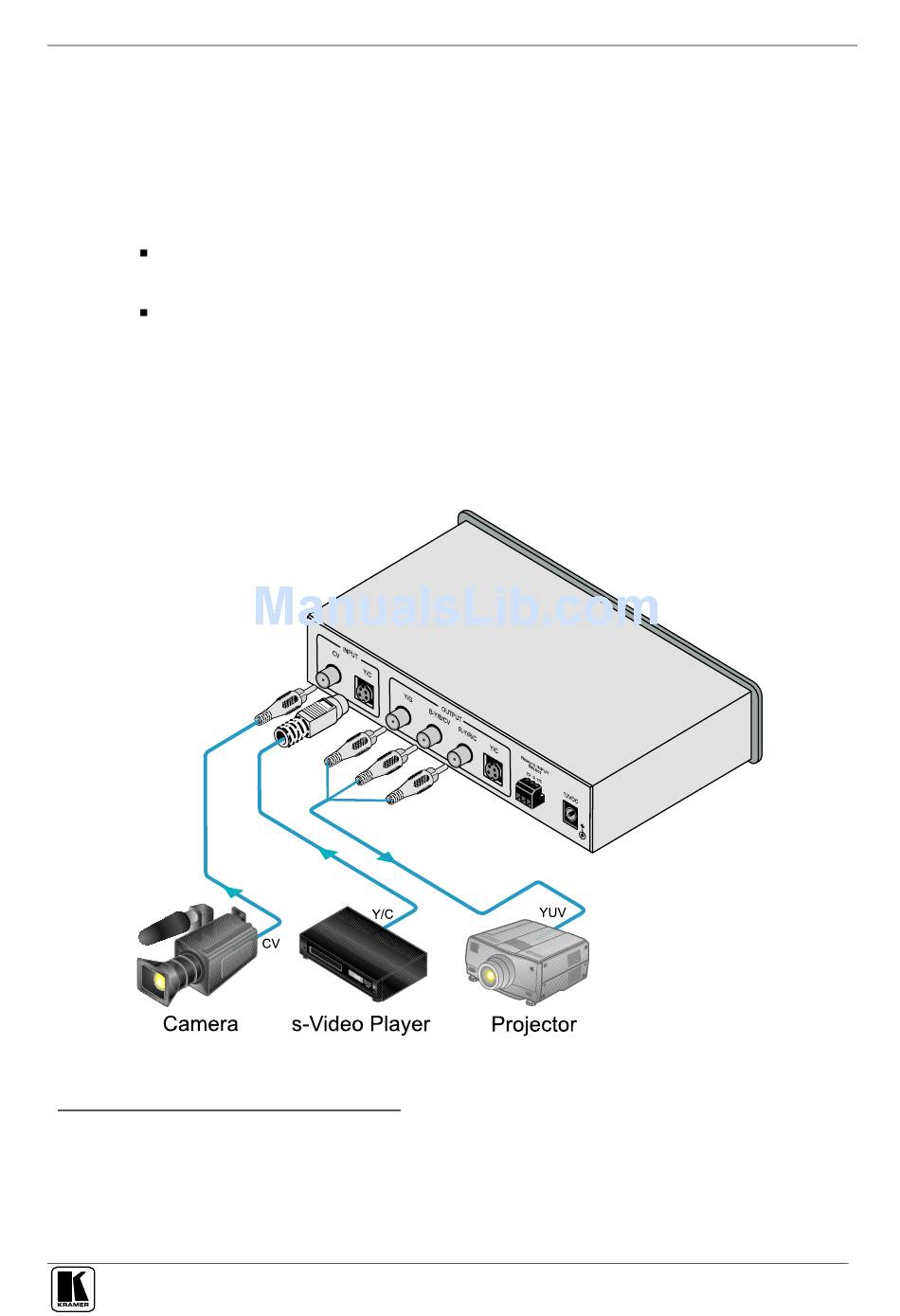

Figure 2: Connecting the FC-10Dxl Composite-YC-Component Transcoder

1 Switch OFF the power on each device before connecting it to your FC-10Dxl. After connecting your FC-10Dxl, switch on
its power and then switch on the power on each device
2 Alternatively, you can connect a CV, Y/C or RGB acceptor to the RCA connectors, or an s-Video acceptor to the Y/C 4-pin
connector
3 Not illustrated in Figure 2
