Your FC-10Dxl Composite-YC-Component Transcoder

4 Your FC-10Dxl Composite-YC-Component Transcoder
Figure 1 and Table 1 define the FC-10Dxl.

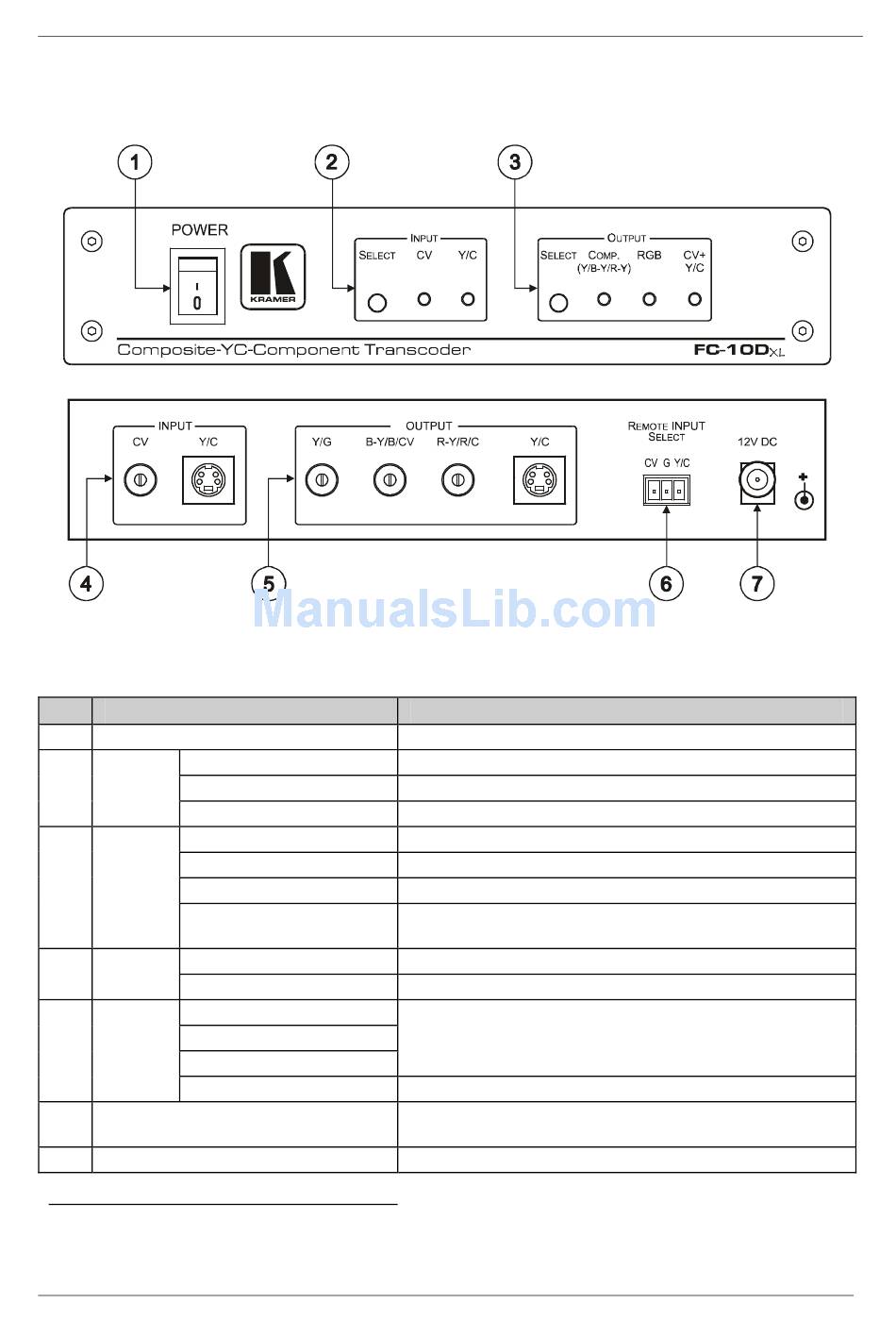

Figure 1: FC-10Dxl Composite-YC-Component Transcoder

Table 1: FC-10Dxl Composite-YC-Component Transcoder Features

# Feature
1 POWER Switch
2 INPUT SELECT Button
Area
CV LED
Y/C LED
3 OUTPUT SELECT Button
Area
COMP. (Y/B-Y/R-Y) LED
RGB LED
CV+Y/C LED
4 INPUT CV RCA Connector
Y/C 4-pin Connector
5 OUTPUT Y/G RCA Connector
B-Y/B/CV RCA Connector
R-Y/R/C RCA Connector
Y/C 4-pin Connector
6 REMOTE INPUT SELECT Terminal
Block Connector
7 12V DC
1 If the s-Video acceptor is connected to the Y/C 4-pin connector, you cannot connect to the Y/G and R-Y/R/C RCA
connectors and vice versa
4
Function
Illuminated switch for turning the unit ON or OFF
Press to select the input format (CV or Y/C)
Lights when the CV input is selected
Lights when the Y/C input is selected
Press to select the desired output format
Lights when the component video output format is selected
Lights when the RsGsBs output format is selected
Lights when the CV as well as the Y/C output format is
selected
Connect to the CV source
Connect to the s-Video source
Connect to the CV (via B-Y/B/CV) and/or to the s-Video
(Y/G and R-Y/R/C) acceptor, or to the component acceptor
Connect to the s-Video
Connect to contact closure switches (see section 5.1)
+12V DC connector for powering the unit
KRAMER: SIMPLE CREATIVE TECHNOLOGY
1
acceptor
