Back Panel - Cisco Explorer 4700 User Manual

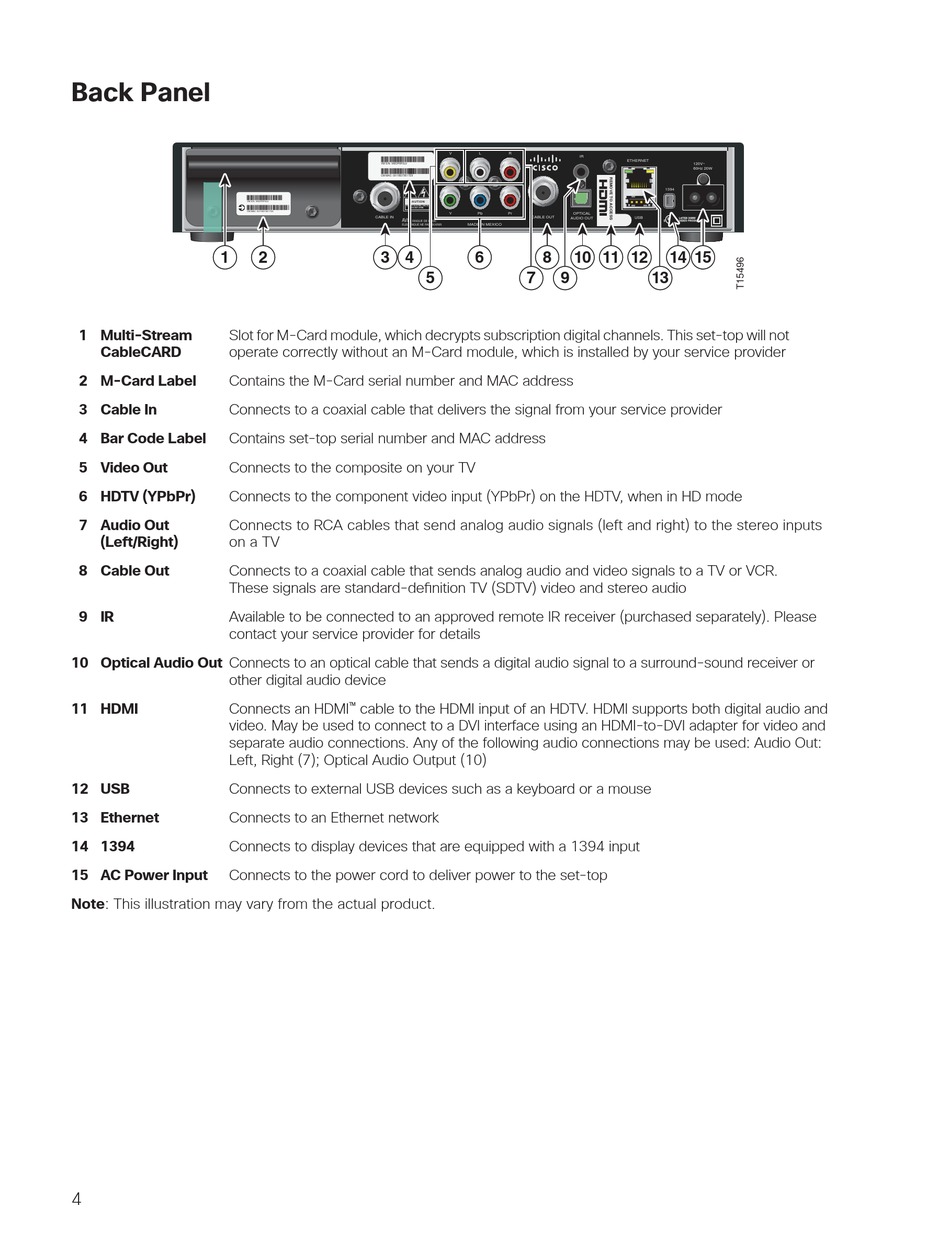

Back Panel

1
1 Multi-Stream Slot for M-Card module, which decrypts subscription digital channels. This set-top will not
CableCARD operate correctly without an M-Card module, which is installed by your service provider
2 M-Card Label Contains the M-Card serial number and MAC address
3 Cable In Connects to a coaxial cable that delivers the signal from your service provider
4 Bar Code Label Contains set-top serial number and MAC address
5 Video Out Connects to the composite on your TV
6 HDTV (YPbPr) Connects to the component video input (YPbPr) on the HDTV, when in HD mode
7 Audio Out Connects to RCA cables that send analog audio signals (left and right) to the stereo inputs
(Left/Right) on a TV
8 Cable Out Connects to a coaxial cable that sends analog audio and video signals to a TV or VCR.
These signals are standard-defi nition TV (SDTV) video and stereo audio
9 IR Available to be connected to an approved remote IR receiver (purchased separately). Please
contact your service provider for details
10 Optical Audio Out Connects to an optical cable that sends a digital audio signal to a surround-sound receiver or
other digital audio device
11 HDMI Connects an HDMI
video. May be used to connect to a DVI interface using an HDMI-to-DVI adapter for video and
separate audio connections. Any of the following audio connections may be used: Audio Out:
Left, Right (7); Optical Audio Output (10)
12 USB Connects to external USB devices such as a keyboard or a mouse
13 Ethernet Connects to an Ethernet network
14 1394 Connects to display devices that are equipped with a 1394 input
15 AC Power Input Connects to the power cord to deliver power to the set-top
Note: This illustration may vary from the actual product.
