ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

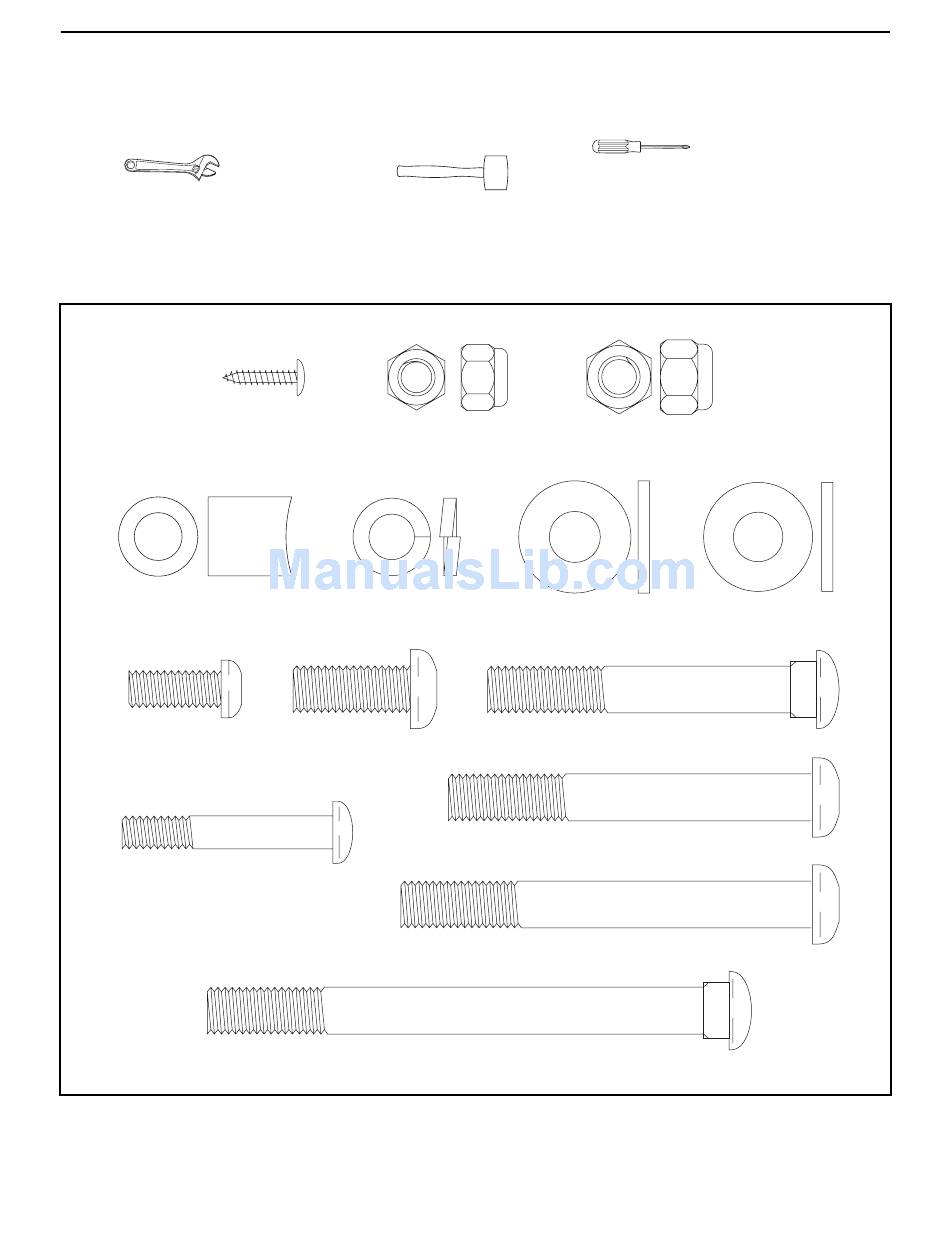

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
M4 x 16mm M8 Nylon M10 Nylon
Screw (66)–2 Locknut (46)–4 Locknut (29)–6
Frame Spacer (83)–1 M10 Split M10.3 Black M10
Washer (70)–4 Washer (53)–2 Washer (38)–6
Adjustment Bolt (20)–2
M8 x 19mm Button
M10 x 27mm
Screw (22)–2 Screw (71)–3
M10 x 78mm Button Bolt (27)–2
M8 x 45mm Button Bolt (91)–4
M10 x 88mm Button Bolt (63)–1
M10 x 112mm Carriage Bolt (34)–4
5
