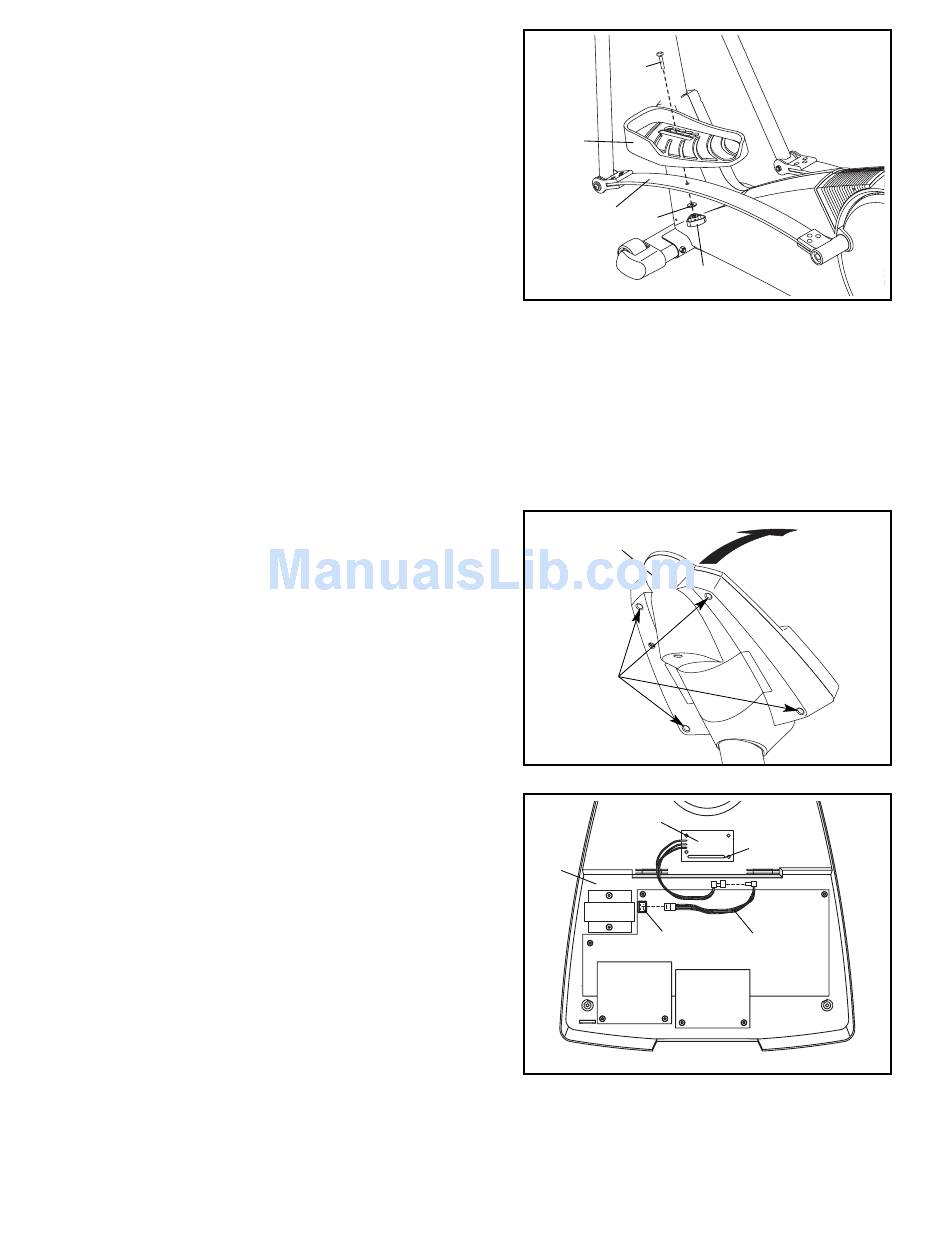

8. Identify the Left Pedal (13). Attach the Left Pedal to the
left Flex Bar (14) with an Adjustment Bolt (20), an M10
Washer (38), and an Adjustment Knob (15) as shown.
Note: The Left Pedal can be attached in any of five
positions (see HOW TO ADJUST THE PEDALS on
page 9).
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (refer to page 20), follow the steps below to install the receiver
and the short jumper wire included with the chest pulse sensor.
1. Remove the four indicated screws from the back of the
Console (5). Lift off the front of the Console.
2. Plug the short jumper wire (A) into the indicated jack on
the Console (5). Connect the other end of the short
jumper wire to the wire on the receiver (B). Note: The
included long jumper wire is not needed.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (5) in the indicated location.
Refer to step 1 above. Reattach the front of the
Console (5) with the four screws. Make sure that no
wires are pinched.
8
20
13
14
38
1
5
Screws
2
B
5
8
15
Lift
Here
Cylinder
A
Jack
