Pro-Form CROSSWALK FIT 415 User Manual page 9

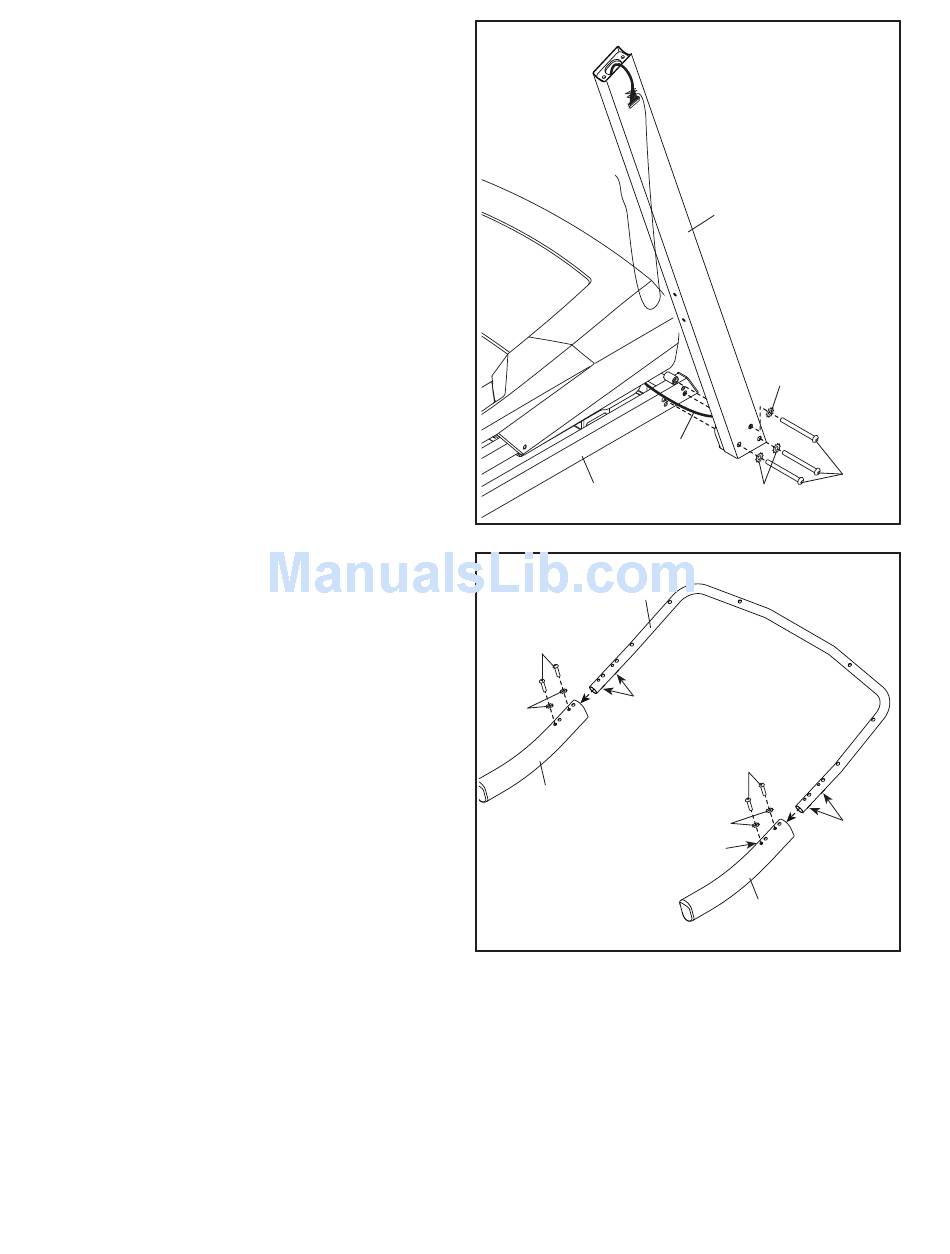

5. Hold the Right Upright (76) against the Base
(74). Be careful not to pinch the Upright
Wire (63).
Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star
Washer (3) into the top hole in the Right Upright
(76). Then, partially tighten the Screw into the
Base (74).
Partially tighten two more 3/8" x 3 1/4" Screws
(2) with two 3/8" Star Washers (3) into the Right
Upright (76) and the Base (74); do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
6. Identify the Left and Right Handrails (59, 64).
(Note: The Right Handrail has a large hole in
its side.) Insert the Console Frame (7) into the
Left and Right Handrails. Note: The nut inserts
(C) should be on the bottom.
Tighten two 1/4" x 1 1/4" Screws (77) with
two 1/4" External Star Washers (61) into each
Handrail (59, 64) and into the Console Frame
(7); do not fully tighten the Screws yet.
5
74
6
7
77
C
61
59
9
76
3
63
3
77
61
Hole
64
2
C
