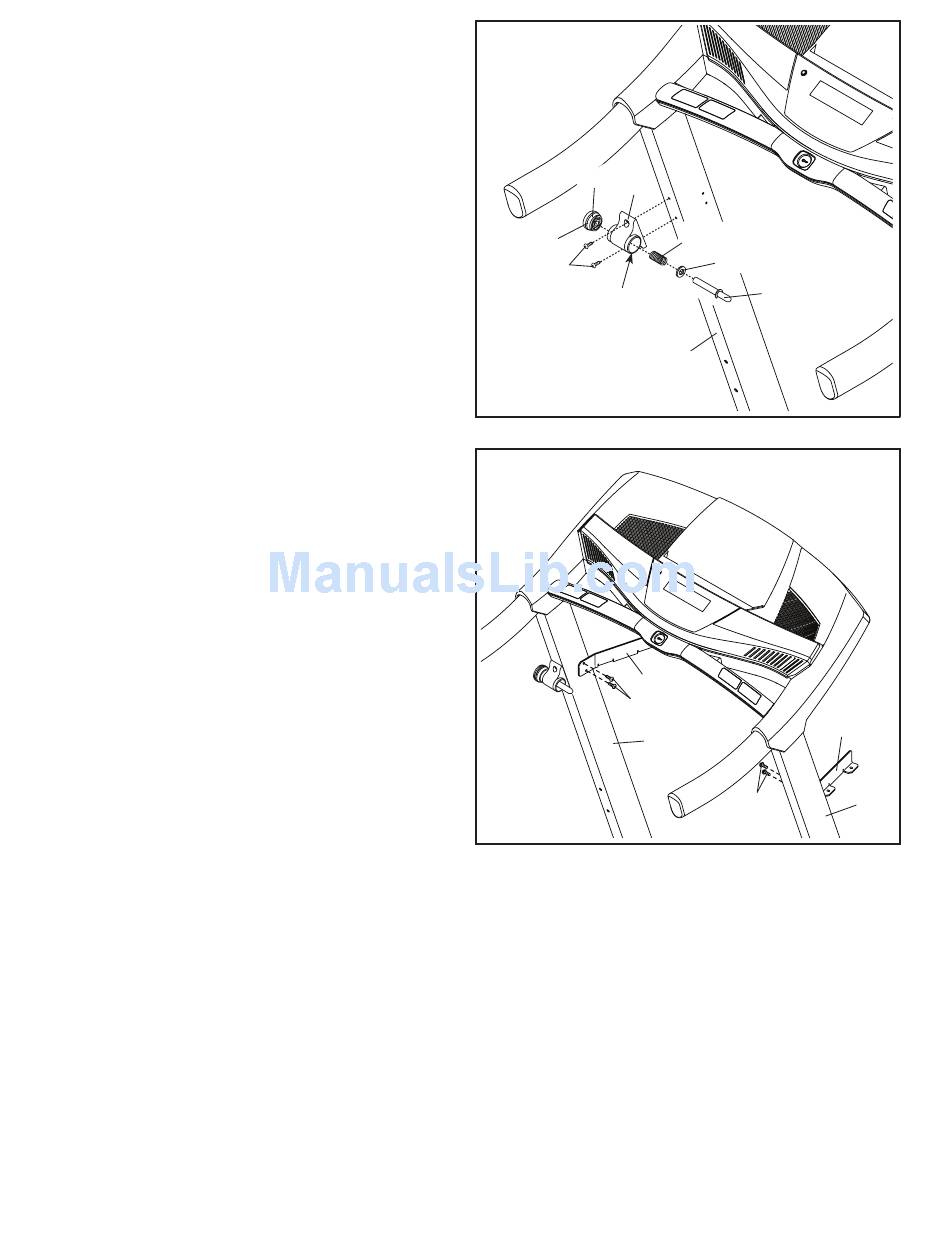

11. Orient the Latch Housing (67) so that the
large hole is on the indicated side. Attach the
Latch Housing to the Left Upright (66) with two
#10 x 3/4" Screws (8) ; start both Screws, and
then tighten them.
Locate the Latch Pin Assembly (68). Remove the
knob from the pin. Make sure that the collar and
the spring are on the pin. (Note: If there are two
collars, place one on each side of the spring.)
Next, insert the pin into the Latch Housing (67).
Then, tighten the knob onto the pin.
12. Attach the Left and Right Tray Brackets (83,
84) to the Uprights (66, 76) with four #8 x 3/4"
Screws (4).
