- Page 1 MP3750/MP3450-10 User Guide...
-
Page 3: Table Of Contents
USER GUIDE Contents Overview ..........................2 Getting Started ........................2 Unpacking myPower ALL Plus ..................2 Getting to Know myPower ALL Plus ................3 Storing myPower ALL Plus .................... 3 Charging myPower ALL Plus ....................4 Charging with a Laptop Power Adapter ................4 Charging with a Solar Panel ................... -
Page 4: Overview
When set to automatic voltage detection, MP3750 automatically detects and sets the voltage for the connected device. When MP3750 is set to manual mode, you simply choose the required voltage for your device. And this lightweight device can power your laptop and a second device at the same time. -
Page 5: Getting To Know Mypower All Plus

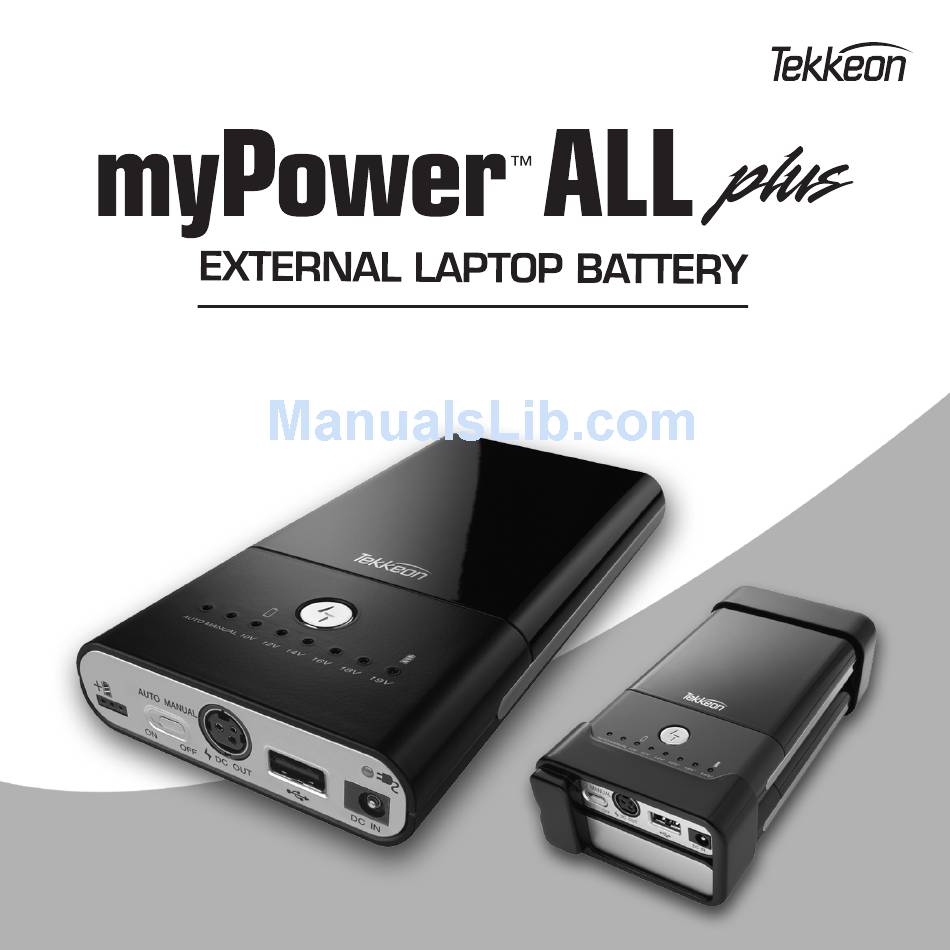

Getting to Know myPower ALL Plus MP3750 MP3450-10 Capacity Display/ USB Port for Connection Charging/USB Indicator Voltage Selector to 5V device Voltage/Capacity Indicators Power/Mode Selector Battery Connection Port/ DC IN For Connection to Battery Connection Port 3-Pin Input Port Power Adapter... -
Page 6: Charging Mypower All Plus
To eliminate the need to carry a separate power adapter, you will use your laptop power adapter to charge MP3750. If your laptop power adapter plug does not fit the MP3750 DC IN jack, you must use the input adapter tip that is compatible with your laptop (provided in the package) to connect the power adapter to MP3750. -
Page 7: Charging With A Solar Panel
1. Connect the solar panel output cable into the DC IN port on myPower ALL Plus. Connect the 3-pin end of the optional Smart 3-PIN Adapter into the 3-Pin Input port on the MP3750 and the other end into the solar panel output port. LED turns on while solar panel is charging myPower ALL Plus 2. -
Page 8: Using Mypower All Plus
1. Locate the polarity symbol on your device in the area around the power connector jack: Center Positive Center Negative WARNING: myPower ALL Plus supports Center Positive polarity only. If your device has a Center Negative polarity, do not power the device with myPower ALL Plus; contact support@tekkeon.com for assistance. -
Page 9: Connect The Power Output Cord
2. Select the output adapter tip that fits securely into the power jack on your portable device. 3. Connect the output adapter tip to the power output cord (but not to the device). Connect the Power Output Cord 1. Plug the large end of the power output cord into the DC OUT jack on myPower ALL Plus. If myPower ALL Plus is in Manual mode (as indicated by the MANUAL LED), the battery will turn on. - Page 10 Most laptop computers have a battery voltage of 11.1V or 14.8V, allowing them to be powered with 12V or 14V. Therefore, it is recommended that you set the voltage to 12V (in manual mode) first, and then test to see if it will power your laptop. If not, increase the voltage to 14V, and retest. Repeat this process until you reach the voltage that will power your laptop.
-
Page 11: Connect The Portable Device
Connect the Portable Device 1. Connect the output adapter tip into the power jack on the portable device (that requires between 10V and 19V). If you have turned on the automatic detection feature in the previous step, the voltage will be automatically detected and set for the connected device. - Page 12 Charge a 5V Device Using Your USB Cable 1. If the MP3750 is set to manual mode, ensure that the power output cord is connected. Alternatively, slide the switch to AUTO. 2. Insert the USB plug on the device cable into the USB port on myPower ALL Plus.
-
Page 13: View Mypower All Plus Battery Capacity
View myPower ALL Plus Battery Capacity The capacity in myPower ALL Plus will decrease as the battery powers and/or charges your devices. The remaining capacity is shown on the capacity indicator, which is accessed as described below. As the remaining capacity decreases, the LEDs will turn off in sequence from right to left. When the myPower ALL Plus battery capacity is low, only one LED will be on. -
Page 14: Adapters
ALL Plus. The following table shows each adapter tip model number, marking, and compatible manufacturers. Output Adapter Tip Input Adapter Tip Connect MP3750 to Laptop Connect Laptop Power to MP3750 Laptop Manufacturers Model No. Marking Model No. -
Page 15: Accessories
You can obtain most adapters, including the Smart 3-Pin Adapter, through the web site, or by contacting Tekkeon by e-mail at support@tekkeon.com, or by phone at 888-787-5888 or 1-714-832-1266. If available through Tekkeon, the adapter will be sent to you for a nominal fee. -
Page 16: Using The Extended Battery (Mp3450-10)
Using the Extended Battery (MP3450-10) You can double the capacity of myPower ALL Plus by adding the extra battery unit MP3450-10. When MP3450-10 is added to MP3750, the battery capacity shown on the indicators includes the capacity available with MP3450-10. -
Page 17: Troubleshooting
MP3750 with the Power/Mode switch in the ON position. Remove and replace the laptop battery to reset the laptop charging circuitry, and connect MP3750 again, with the power switch in the OFF position. Slide the power switch to ON after the laptop is connected. -
Page 18: Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. The limited warranty will be considered void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly serviced, or if the security seal is removed. -
Page 19: Customer Support
Customer support for myPower ALL Plus is available at: Tekkeon, Inc. c/o myPower ALL Plus 3002 Dow Avenue, #134 Tustin, CA 92780 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds. - Page 20 © 2009 Tekkeon, Inc. Rev A All Rights Reserved myPower is a trademark ™ of Tekkeon, Inc. Cut loose. Stay loose.
