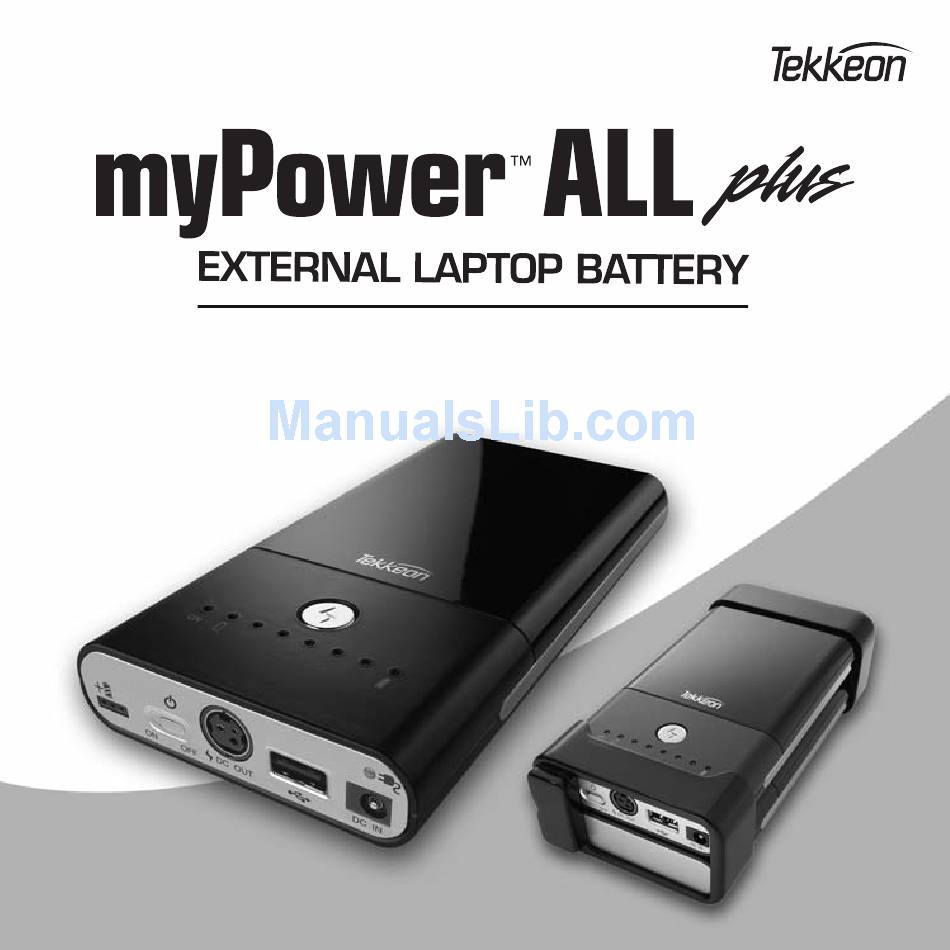

- Page 1 MP3700/MP3450-10 User Guide...
-
Page 3: Table Of Contents
USER GUIDE Contents Overview...2 Getting Started ...2 Unpacking myPower ALL Plus...2 Getting to Know myPower ALL Plus ...3 Storing myPower ALL Plus ...3 Charging myPower ALL Plus ...4 Charging with a Laptop Power Adapter ...4 Charging with a Solar Panel...5 Using myPower ALL Plus...7 Select/Connect the Adapter Tip ...7 Connect the Power Output Cord ...8... -
Page 4: Overview
Overview With myPower™ ALL Plus —the universal rechargeable battery featuring automatic voltage detection, you can power your laptop or other portable devices that require from 9.5V to 20V, plus power and charge just about any 5V portable device from the USB port. Simply connect myPower ALL to your portable device to extend the battery life. -
Page 5: Getting To Know Mypower All Plus
Getting to Know myPower ALL Plus MP3700 MP3450-10 Capacity Display Button USB Port for connection Charging/Power Indicator to 5V device Capacity Display Indicators Power Battery Connection Port/ DC IN Battery Connection Port For connection to 3-Pin Input Port power adapter... -
Page 6: Charging Mypower All Plus
Charging with a Laptop Power Adapter If your laptop power adapter tip does not fit the MP3700 DC IN jack, you must use the input adapter tip that is compatible with your laptop (provided in the package) to connect the power adapter to MP3700. -
Page 7: Charging With A Solar Panel
1. Slide the ON/OFF switch to OFF. 2. Connect the laptop power adapter to the DC IN jack on MP3700. If your power adapter tip does not fit the DC IN jack, connect the input adapter tip that fits your laptop power adapter to the plug on the laptop power adapter, and plug the other end into the DC IN jack on the end of MP3700. - Page 8 To Charge through the 3-Pin Input Port 1. Connect the 3-Pin end of the optional Smart 3-Pin Adapter into the 3-Pin Input port on the MP3700 (shown) and the other end into the solar panel output port. 2. Verify that the charging indicator next to the input jack on the Smart 3-Pin Adapter (shown) will turn on to indicate the battery is charging.
-
Page 9: Using Mypower All Plus
1. Locate the polarity symbol on your device in the area around the power connector jack: Center Positive WARNING: myPower ALL Plus supports Center Positive polarity only. If your device has a Center Negative polarity, do not power the device with myPower ALL Plus; contact support@tekkeon.com for assistance. USER GUIDE Center Negative... -
Page 10: Connect The Power Output Cord
1. Connect the output adapter tip into the power jack on the portable device. 2. If the internal battery is installed in the connected device, turn on the device. 3. Slide the power switch to ON. The MP3700 will automatically detect and set the required output voltage. -
Page 11: Connect The 5V Device Using An Adapter
Connect the 5V Device Using an Adapter 1. Connect the compatible output adapter tip to the retractable USB cable. 2. Connect the retractable USB cable into the USB port on myPower ALL Plus. 3. Connect the adapter tip to your 5V device. 4. -
Page 12: View Mypower All Plus Battery Capacity
View myPower ALL Plus Battery Capacity The capacity in myPower ALL Plus will decrease as the battery powers and/or charges your devices. The remaining capacity is displayed on the capacity indicator, which is accessed as described below. As the remaining capacity decreases, the lights will turn off in sequence from right to left. When the myPower ALL Plus battery capacity is low, only the red light will be on. -
Page 13: Adapters
Connect MP3700 to Notebook Model No. Marking PA-L47 PA-L5D PA-L5F PA-L63 PA-L65 PA-N09 PA-N10 PA-N11 USER GUIDE Input Adapter Tip Connect Laptop Power to MP3700 Model No. Marking PA-L47F BM-AF Not needed Not needed PA-L5FF BM-CF PA-L65F BM-DF/EF PA-N09F BM-16F... - Page 14 You can obtain most adapters, including the Smart 3-Pin Adapter, through the web site, or by contacting Tekkeon by phone at 888-787-5888 or 1-714-832-1266. If available through Tekkeon, the adapter...
-
Page 15: Accessories
Female car charge that connects to myPower ALL Plus to charge your mobile device with your mobile device car charger. PA-SCC1 Smart 3-Pin Adapter to charge myPower ALL Plus with a solar panel. These can be ordered from our web site at www.tekkeon.com or by contacting Tekkeon by phone at 888-787-5888 or 1-714-832-1266. USER GUIDE... -
Page 16: Using The Extended Battery (Mp3450-10)
Using the Extended Battery (MP3450-10) You can double the capacity of myPower ALL Plus by adding the extra battery unit MP3450-10. When MP3450-10 is added to MP3700, the battery capacity shown on the indicators includes the capacity available with MP3450-10. -
Page 17: Troubleshooting
1. Verify that the battery is turned on by sliding the power switch to ON. Please note that with some laptop models, the laptop may shut down if the laptop is connected to MP3700 with the power switch in the ON position. Remove and replace the laptop battery to reset the laptop charging circuitry, and connect MP3700 again with the power switch in the OFF position. -
Page 18: Limited Warranty
The product enclosed herein is warranted to be free of operational defects for a period of one year from the date of purchase. In the event of a defect in operation during the warranty period Tekkeon, Inc. will replace the defective product when the owner returns all product contents. The limited warranty will be considered void if the unit is tampered with, subject to misuse, negligence or accidental damage, has been improperly serviced, or if the security seal is removed. -
Page 19: Customer Support
Customer support for myPower ALL Plus is available at: Tekkeon, Inc. c/o myPower ALL Plus 3002 Dow Avenue, #134 Tustin, CA 92780 888-787-5888 / 714-832-1266 www.tekkeon.com Tekkeon, Inc. must issue a Return Merchandise Authorization (RMA) number for all exchanges or refunds. - Page 20 © 2008 Tekkeon, Inc. Rev A All Rights Reserved myPower is a trademark ™ of Tekkeon, Inc. Cut loose. Stay loose.
