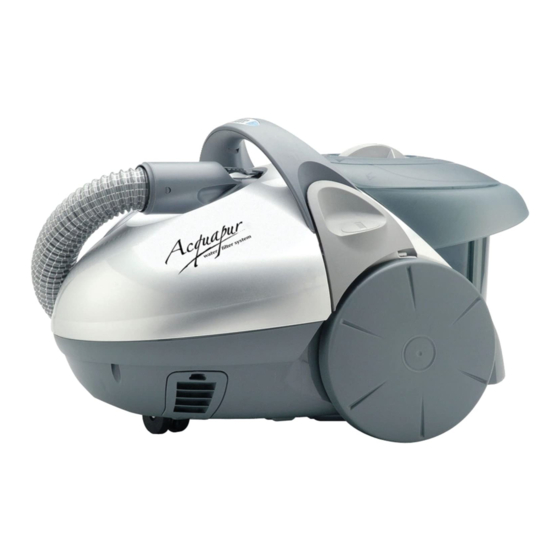

  • Page 1 SERVICE MANUAL VACUUM CLEANER WITH WATER FILTER MODEL: AG – 1200 KOBLENZ ELECTRICA S.A. DE C.V. E-mail: servicio@koblenz-electric.com 1/12 Elaborated August 2013.

  • Page 2: Replacement Procedures

    INDEX I.-OPERATION SISTEM....................Page II.-REPLACEMENT PROCEDURES................Page 2 to 3 III.-FAILURE AND SOLUTIONS..................Page IV.-EXPLOSIVE VACUUM....................Page V.-VACUUM CLEANER PARTS LIST................Page VI.-TANK ASSEMBLY......................Page VII.-DEPOSIT PARTS LIST....................Page VIII.-ACCESORIES......................Page IX.-ACCESORIES PARTS LIST..................Page X.-ELECTRIC DIAGRAM....................Page I.-OPERATION SISTEM. MODEL Volts Watts AG-1200 12O ~ 1200 a).- Motor must work without vibrations b).- The carbon brushes spark should be small and uniform and the commutor must have dark brown strip and uniform II.- REPLACEMENT PROCEDURES...
  • Page 3 4.- TO REPLACE RETRACTIL REEL (4) 4.1.- Follow steps 1.1, 1.2,2.2, 3.2 y 3.3 4.2.- Once disconected the harness and electronic panel of terminal's retractable reel (31) , release accesory compartment , use flat blade screw driver, remove the cable entry (12) clamping bouncing staples to lower part (13) release the screws securing the cable entrance 4.3.- Repleace retractil reel, placing all components on cavity like was initially placed 5.- TO REPLACE ELECTRONIC PANEL (31)
  • Page 4 III. - FAILURE AND SOLUTIONS CAUSE SOLUTION FAILURE Not firmly plugged Check plug connection Plugged or line cord Damaged Replace plugg or line cord NOT TURN Damaged reel turntables Replace Reel Damaged motor Replace motor THE CORD DOES NOT Release all cable and one more time The cable is bent or tangled REWIND FULLY press rewind button...
  • Page 5 IV.- EXPLOSIVE VACUUM 5/12 Elaborated August 2013.

  • Page 6: Parts List Explosive Vacuum

    V.- PARTS LIST EXPLOSIVE VACUUM FAKIR KOBLENZ DESCRIPTION 20 22 059 49-5001-0 HANDLE COVER 20 22 048 49-5002-8 ELECTRONIC 20 22 060 49-5003-6 CARRYING HANDLE 20 54 024 49-5004 - 4 HOSING COVER- ACQUAPUR 20 22 072 49-5005-1 CABLE PUSH BUTTON...

  • Page 7: Tank Assembly

    VI.- TANK ASSEMBLY 7/12 Elaborated August 2013.
  • Page 8 VII.- DEPOSIT PARTS LIST FAKIR KOBLENZ DESCRIPTION 20 22 291 49-5029-1 COVER (CANISTER) 20 22 280 49-5030-9 WATERFILTER INSERT 20 22 284 49-5031-7 GASKET 20 22 285 49-5032-5 FILTER GASKET 20 22 095 49-5033-3 MAIN FILTER 20 22 289 49-5034-1...
  • Page 9 VIII.- ACCESORIES 9/12 Elaborated August 2013.
  • Page 10 IX.-ACCESORIES PARTS LIST. FAKIR KOBLENZ DESCRIPTION 20 18 870 49-5042-4 UPHOLSTERY NOZZLE 20 22 360 49-5043-2 SUCTION HOSE CPL 1650 mm 20 22 361 49-5053-1 SUCTION SOCKET 20 18 840 49-5044-0 TELESCOPIC SUCTION TUBE 20 22 296 49-5045-7 MEASURING BEAKER...

  • Page 11: Electric Diagram

    X.- ELECTRIC DIAGRAM 11/12 Elaborated August 2013.

  • Page 12: Factory Authorized Service

    FACTORY AUTHORIZED SERVICE Thorne Electric Company 610 Lanark Suite 205 San Antonio TX, 78218 Tel (210) 590-1226 Fax (210)590-1258 1-800-548-57 FACTORY KOBLENZ ELECTRICA S.A. DE C.V. AV. CIENCIA NO.28 CUAUTITLAN IZCALLI ESTADO DE MEXICO 54730 LP-AG1200-201308 Web site: http://www.koblenz-electric.com 12/12...
