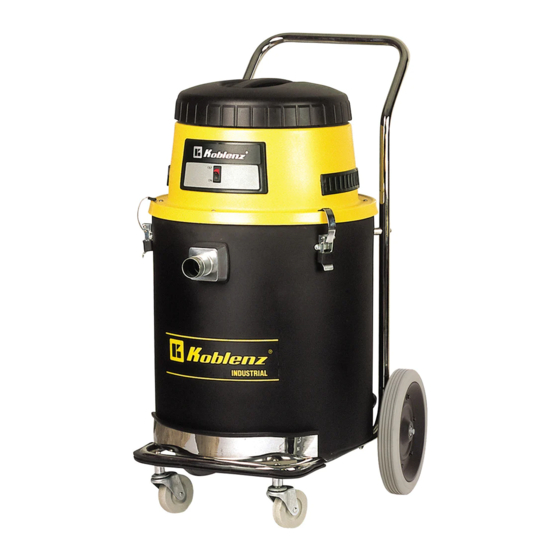

Koblenz AI-1260P Service Manual & Parts List
Wet/dry
Hide thumbs
Also See for AI-1260P:
- Operation instructions manual (13 pages) ,
- Operation instructions manual (12 pages) ,
- Operation instructions manual (12 pages)
Related Manuals for Koblenz AI-1260P
Summary of Contents for Koblenz AI-1260P
- Page 1 SERVICE MANUAL PARTS LIST WET / DRY VACUUM CLEANER MODELS: AI-1260P AI-1660P AI-1960P KOBLENZ ELECTRICA S.A. DE C.V. November-06 LP-AIP-200610 E-mail: thorne_scsm@koblenz-electric.com 1/12 November / 2006...
- Page 2 INDEX PAGE I.- FINAL TEST PRODUCT SAFETY II.- HEAD REPLACEMENT PROCEDURES III.- TROUBLE SHOOTING CHART IV.- VACUUM CLEANER ASSEMBLY V.- VACUUM CLEANER PARTS LIST VI.- HEAD ASSEMBLY VII.- PART LIST AND HEAD ASSEMBLY VIII.- WIRING DIAGRAM IX.- ELECTRICAL RATING 2/12 November / 2006...
- Page 3 I.- FINAL TEST FOR PRODUCT SAFETY A the completion of any repair the product should be electrically tested for running and electric strength as follows 1.- ELECTRIC TEST 1).- Set hip-pot test meter at 1500 volts. 2).- Product switch to ON-position. 3).- Touch one probe of tester to one blade of power cord plug and touch other probe to handle tube, there should be no breakdown.
- Page 4 9.- TO REPLACE THE SUCTION BASE (5) 9.1.- Remove the head assembly from the machine. 9.2.- Remove the four screws (20), and the diffuser elbow (23) and the suction coupling (24). 9.3.- Replace the new suction base (5) placing the seal base (4) reassemble. 10.- TO REPLACE THE COVER LATCH (ONLY PLASTIC TANK) (3) 10.1.- Remove the head assembly from the machine 10.2.- Remove the tree screws (48) and remove the cover latch with components 3A, B, C, D, E and F.
- Page 5 PROBLEM POSSIBLE CAUSE SOLUTlON 1.- Not firmly plugged in. 1.- Check attachment plug. 2.- 8ad ON-OFF switch. 2.- Replace switch. A) Motor does not run 3.- Line cord open 3.- Replace cord. 4.- Motor open 4.- Check motor and wiring. B) Motor runs but cleaner 1.- Dust filter bag c1osed.
- Page 6 V.-VACUUM CLEANER PARTS LIST 6/12 November / 2006...
- Page 7 PART. No. DESCRIPTION AI-1260 P AI-1660 P AI - 1960 P 46-2310-4 HEAD ASSEMBLY 45-0479-1 BAG ASSEMBLY 45-0453-6 COVER LATCH ASSEMBLY 12-0682-0 LATCH GROMET 05-3754-8 LATCH HOOK 12-0392-6 LATCH GROMET 05-2241-7 LATCH LEVER 03-0419-6 RIVET 1/8 X 1 1/8 03-0418-8 RIVET 1/8 X 7/8 12-0582-2 SUCTION BASE GASKET...
- Page 8 PART. No. DESCRIPTION AI-1260 P AI-1660 P AI - 1960 P 04-0026-7 FLAT WASHER .203 X 1/2 01-0761-5 SCREW# 10-32 X 11/4" 27-0197-7 FRONT WHEEL 01-1378-7 SCREW# 8 - 32 X 1/2INOX. 13-1548-0 RETAINING HOSE 04-0068-9 FLAT WASHER .203 X 1/2 12-0661-4 DRAIN PLUG 12-0659-8...
- Page 9 VII.- PART LIST AND HEAD ASSEMBLY 9/12 November / 2006...
-
Page 10: Hexagonal Nut 8-32 2
PART. No. DESCRIPTION AI-1260 P AI-1660 P AI - 1960 P 13-1676·9 COVER HANDLE 01-1659·0 SCREW # 10 X 11/4" 13-1675·1 PLASTIC COVER 12·0693-7 FOAM FILTER S/UL 05-3755-5 CAGE 01-0293-9 SCREW# 10 X 3/4 01-0558-5 SCREW # 6 X 318 13-1114-1 COOLlNG VENTS 01-1251-6... -
Page 11: November
IX.- ELECTRICAL RATING MODEL CAPACITY AI-1260P 12 Gal. AI-1660P 16 Gal. AI-1960P 19 Gal. 11/12 November / 2006... - Page 12 610 Lanark Suite 205 San Antonio TX ,78218 Tel (210) 590-1226 Fax (210) 590-1258 1-800-548-5741 FACTORY Koblenz Electrica, S.A. de C.V. Av. . Ciencia No 28 Cuautitlán Izcalli Edo. de México, C.P. 54730 Tel : 5864-0300 Web site : http://www.koblenz.electric.com KOBLENZ ELÉCTRICA S.A.
