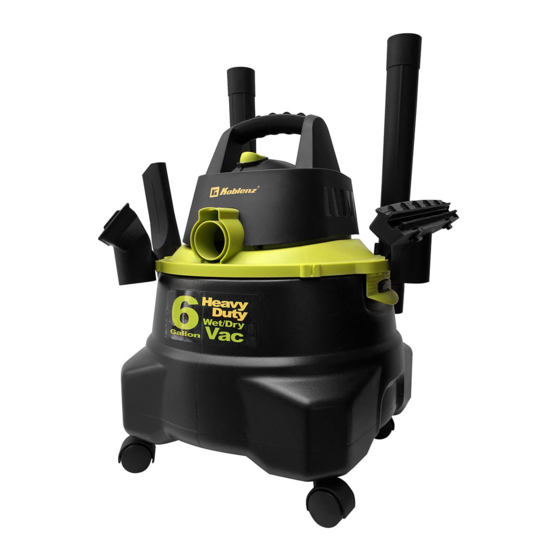

- Page 1 SERVICE MANUAL WET DRY VACUUM CLEANER MODEL: WD-6K WD-9K WD-12K WD-16K KOBLENZ ELECTRICA S.A. DE C.V. E-mail: thorne_scsm@koblenz-electric.com LP-LPWD6-201308 Elaborated: August.2013.
-
Page 2: Table Of Contents
INDEX I. OPERATING SYSTEM II. REPLACEMENT PROCEDURES III. USE WITH DISPOSABLE VACUUM BAG 12 AND 16 GAL. IV. TROUBLE SHOOTING. V. SCHEMATIC DRAWING FOR 6 AND 9 GALLON VACS. VI. VACUUM PARTS LIST 6 AND 9 GALLON. VII. SCHEMATIC DRAWING FOR 12 AND 16 GALLON VACS. VIII. -
Page 3: I. Operating System
I. OPERATING SYSTEM MODEL VOLTS AMPERES WD-6K 120V WD-9K 120V WD-12K 120V WD-16K 120 V There should be no abnormal noise or vibration, the carbon brushes spark should be small and uniform, and the com- mutator must have a dark brown and uniform strip. - Page 4 4.-Assemble the motor head, and the vacuum cleaner is now ready to use. 2. TO REPLACE FILTER (12 AND 16 GAL) The filter should be changed often to maintain peak performance. Note: This filter is made of high quality materials designed to stop very small particles of dust. Handle the filter carefully when removing it to be cleaned or installed.
- Page 5 3. TO REPLACE THE MOTOR 3.1 Push release tab outward, at the same time pull cover up 3.2 Remove the four screws 3.3 Remove the cover 3.4 Disconnect the line cord 3.5 Remove the motor assembly 3.6 Replace the motor, reconnect and reassemble NOTE: DO NOT attempt to repair the motor, send for service 4.
-
Page 6: Iii. Use With Disposable Vacuum Bag 12 And 16 Gal
III. USE WITH DISPOSABLE VACUUM BAG 12 AND 16 GAL 1. Remove pleated filter. 2. Move bag over suction inlet. The bag has a plastic border that must move over the small plastic nubs, all the way to the end. 3. -
Page 7: Iv. Trouble Shooting
IV. TROUBLE SHOOTING CHART FAILURE CAUSE CORRECTION NOT FIRMLY PLUGGED OR CHECK ATTACHMENT PLUG OR DAMAGED. CHANGE THE LINE CORD. NO POWER IN THE OUTLET. VERIFY CURRENT LINE. ON-OFF SWITCH IS DAMAGED DAMAGED OR THERE IS A POOR CORRECT POOR CONTACT. MOTOR OR CONTACT. -
Page 8: V. Schematic Drawing For 6 And 9 Gallon Vacs
V. SCHEMATIC DRAWING FOR 6 AND 9 GALLON VACS. Elaborated: August.2013. - Page 9 VI. PARTS LIST 6 AND 9 GALLONS PART WD-6 K WD-9 K ITEM DESCRIPTION. 00-5435-3 00-5436-1 NUMBER. 52-0128-07-5 Handle 6 and 9 Gal. 49-5952-02-0 Plastic button 6 and 9 Gal. 49-5952-01-2 Switch 6 and 9 Gal. 49-5952-07-9 Engine cover 6 and 9 Gal. 49-5952-03-8 Engine 6 Gal.
-
Page 10: Vii. Schematic Drawing For 12 And 16 Gallon Vacs
VII. SCHEMATIC DRAWING FOR 12 AND 16 GALLON VACS. Hose assy includes items 39, 32 and 20 -10- Elaborated: August.2013. -
Page 11: Cage.
VIII. PARTS LIST 12 AND 16 GALLONS PART WD-12K WD-16K DESCRIPTION. ITEM NUMBER. 00-1158-5 00-1155-1 13-3861-00-5 Handle Cover 12 and 16 Gal. 13-3860-00-7 Handle 12 and 16 Gal. 11-0138-5 Black Rocker Switch. 13-3664-02-9 Handle 12 Gal. 13-3664-01-1 Handle 16 Gal. 12-0953-5 Strain Relief. -
Page 12: Hose Assy. 1
PART WD-12K WD-16K ITEM DESCRIPTION NUMBER 00-1158-5 00-1155-1 13-3672-6 Coupling Diffuser 12 and 16 Gal. 13-3669-2 Crevice Tool 12 and 16 Gal. 45-0843-8 Pleated Filter 12 and 16 Gal. 18-1163-7 Packing Box 12 Gal. 18-1248-6 Packing Box 16 Gal. 19-0654-4 User Manual 12 and 16 Gal. - Page 13 FACTORY AUTHORIZED SERVICE Thorne Electric Company 610 Lanark Suite 205 San Antonio TX, 78218 Tel (210) 590-1226 Fax (210)590-1258 1-800-548-57 FACTORY KOBLENZ ELECTRICA S.A. DE C.V. AV. CIENCIA NO.28 CUAUTITLAN IZCALLI ESTADO DE MEXICO 54730 Web site: http://www.koblenz-electric.com LP-LPWD6-201308 -13-...
