iSync HD and iSync Pro User Manual
Easy to control and operate:
On-board LCD display
■
Store your custom settings for each of the HDMI and Analog Video inputs.
■
Easy to operate IR remote control and RS-232C
■
User-friendly front panel controls
■
RS-232C
■
Front and rear-panel IR sensor
■
Wired IR serial connector
■
Firmware upgradeable
■

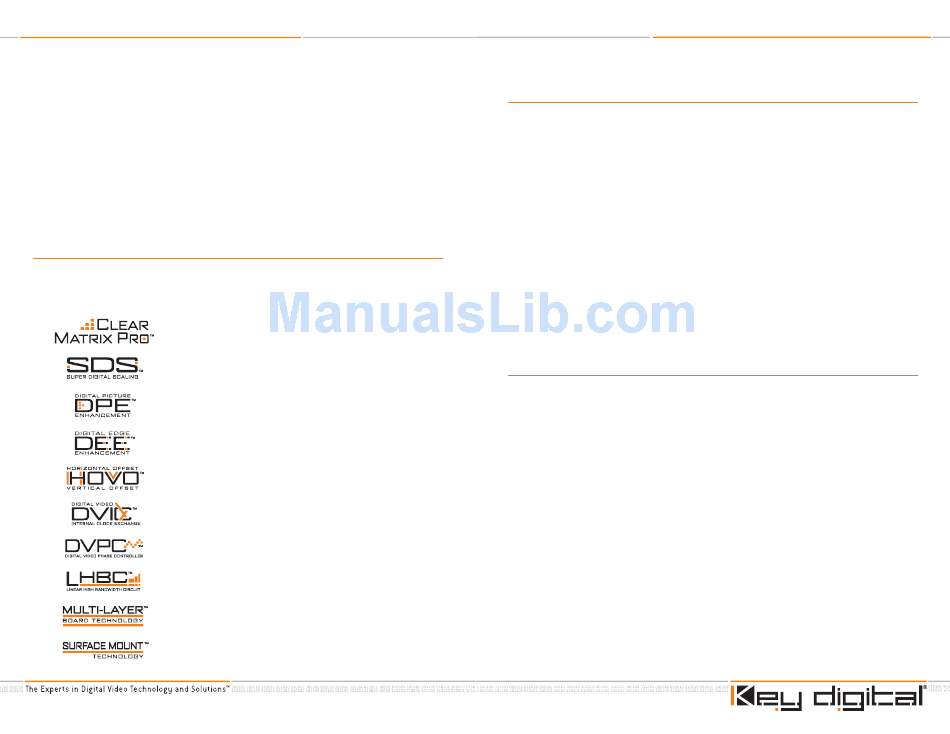

Key Digital ™ Technology
The Technology drives all Key Digital ™ products. The cutting-edge technologies engineered into
your iSync HD [Pro] digital video processor and video/audio switcher include:
Clear Matrix Pro
SDS [Super Digital Scaling]
DPE [Digital picture enhancement]
DEE [Digital Edge Enhancement]
HOVO ™ [horizontal offset - vertical offset]
DVIC ™ [Digital Video Internal Clock Exchange]
DVPC ™ [Digital Video Phase Controller]
LHBC ™ [Liner High Bandwidth Circuit]
Multi-Layer Board Technology
Surface Mount Technology
™
™
™
iSync HD and iSync Pro User Manual
About the iSync HD [Pro]
Thank you for purchasing the Key Digital ™
cated achievement in digital video processing and video switching from Key Digital. The iSync
HD [Pro] is a full-featured digital video processor and switcher able to provide stunning images
to the latest displays, up to and including 1080p. It is flexible and easy to use, and can drive
displays with all popular HD and SD resolutions, at 60 Hz or 50 Hz. This deceptively compact
unit has the performance, features and quality synonymous with Key Digital
pensable flexibility and ease of operation to any integral video/audio system application.
The iSync HD [Pro] is easily configured to interface most any Video and Audio source(s) with
virtually any desired output Display and Audio medium, at the mere touch of a button. Using
either the on-board simple and intuitive pushbutton navigation array with the accompanying
LCD display, or the handy IR Remote Control provided with your unit with its convenient Hot-
Key select feature, you'll appreciate the ease of matching and scaling progressive-scan and
interlaced video source material to the native resolution of your display. Additionally, like all Key
Digital ™ video processors, iSync HD [Pro] is equipped with RS232C, allowing complete external
operational control through Crestron, Elan, AMX, Control 4 and virtually almost any other control
system. The RS232C port also allows for easy software upgrades when used in conjunction
with the program switch set in the proper position.
Versatile video and audio Inputs and Outputs
The iSync HD [Pro] supports a wide array of video inputs, providing flexibility as well as the
means for all digital interfaces with your display. The iSync HD [Pro] is equipped with two (2)
HDMI Digital Video inputs (HDMI is plug-and-play and supports audio), separately selectable
and customizable with HDCP copy protection support. For Analog Video there are individual
analog video inputs that are also customizable. These include:
Component Video (YPbPr)
■
S-Video (NTSC and PAL)
■
Composite Video (CV) (NTSC and PAL)
■
Your iSync HD [Pro] also supports analog left and right stereo pair inputs and outputs and
SPDIF digital audio inputs and outputs.
Using world-renowned Key Digital ™ Clear Matrix Pro technology, the iSync HD [Pro] can scale
any selected video to match the native resolution of your display. It provides superior quality
scaling of all popular HDTV and SDTV input formats (480i, 480p, 576i, 576p, 720i, 720p, 1080i,
1080p) and analog NTSC and PAL video formats, all at 60 Hz or 50 Hz. The various input
interfaces and format options built into the iSync HD [Pro] provide flexibility and pristine
deinterlacing and scaling to the native resolution of your display of choice.
