Introduction

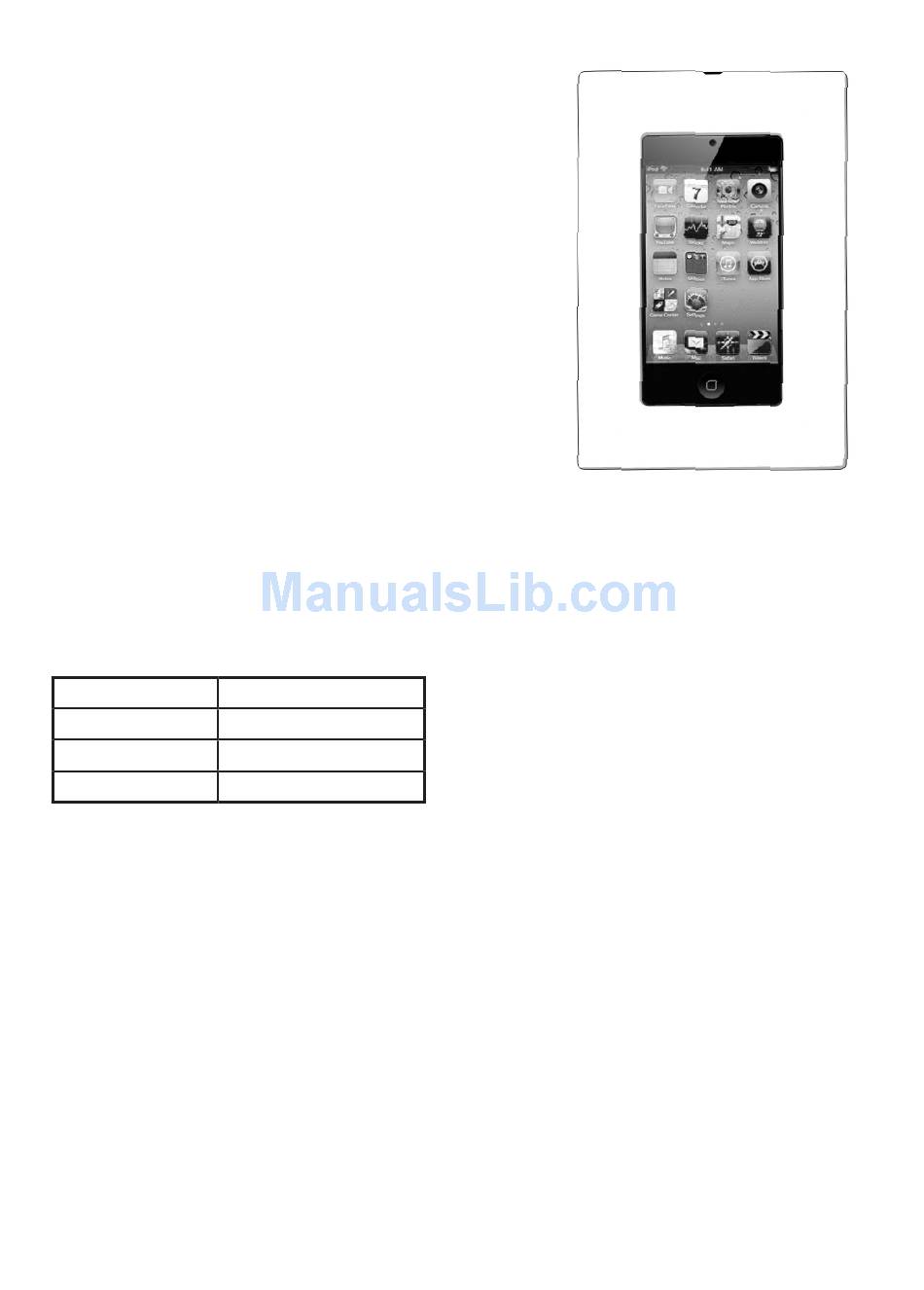

The iPort Control Mount is an in-wall system that
®
allows an iPod touch
publication date. Please visit www.iportmusic.com
for updated/additional iPod product releases) to
become a semi-permanent fixture in your home
control system through wireless applications.
Before installing and using the CM-IW200, please
read and follow all of the instructions in this manual
carefully.
System Capabilities:
• Delivers local-zone unbalanced audio up to 30
feet (9m) from the mount.
• Charges the iPod touch while it is mounted.
• Features variable audio volume control via the
installed iPod touch in portrait orientation.
• Fixed audio volume control via connected audio system such as a receiver.
• Provides additional long distance power only up to 200' using 18 awg wire. See chart
below for additional wire specs. Note: Audio distance is still limited to 30 feet from
the mount and wall plate. For additional power-only distance, use the 2 pin connec-
tor located on the back of the audio wall plate. (See Figure 3)
Wire Gauge
22awg
20awg
18awg
iPort Control Mount Box Contents:
(1) iPort in-wall mounting system (faceplate and mounting cradle)
( 1) Audio wall plate
(1) Regulated power supply
(1) Installation cut-out template
(1) Instruction manual

Required Tools

The following tools are required to install the iPort:
• #2 Phillips screwdriver
• W ire cutters and wire strippers
• R J-45 cable crimp tool and modular connectors
• S heet rock saw (for retrofitting into an existing wall)
CM-IW200
(4th generation only as of
®
Distance (Feet)
75
120
200
2
Instruction Manual
