iPort 72356 Manual

Connect wall mount black
Hide thumbs

Advertisement

Quick Links

Download this manual
CONNECT
MOUNT
WALLM OUN T

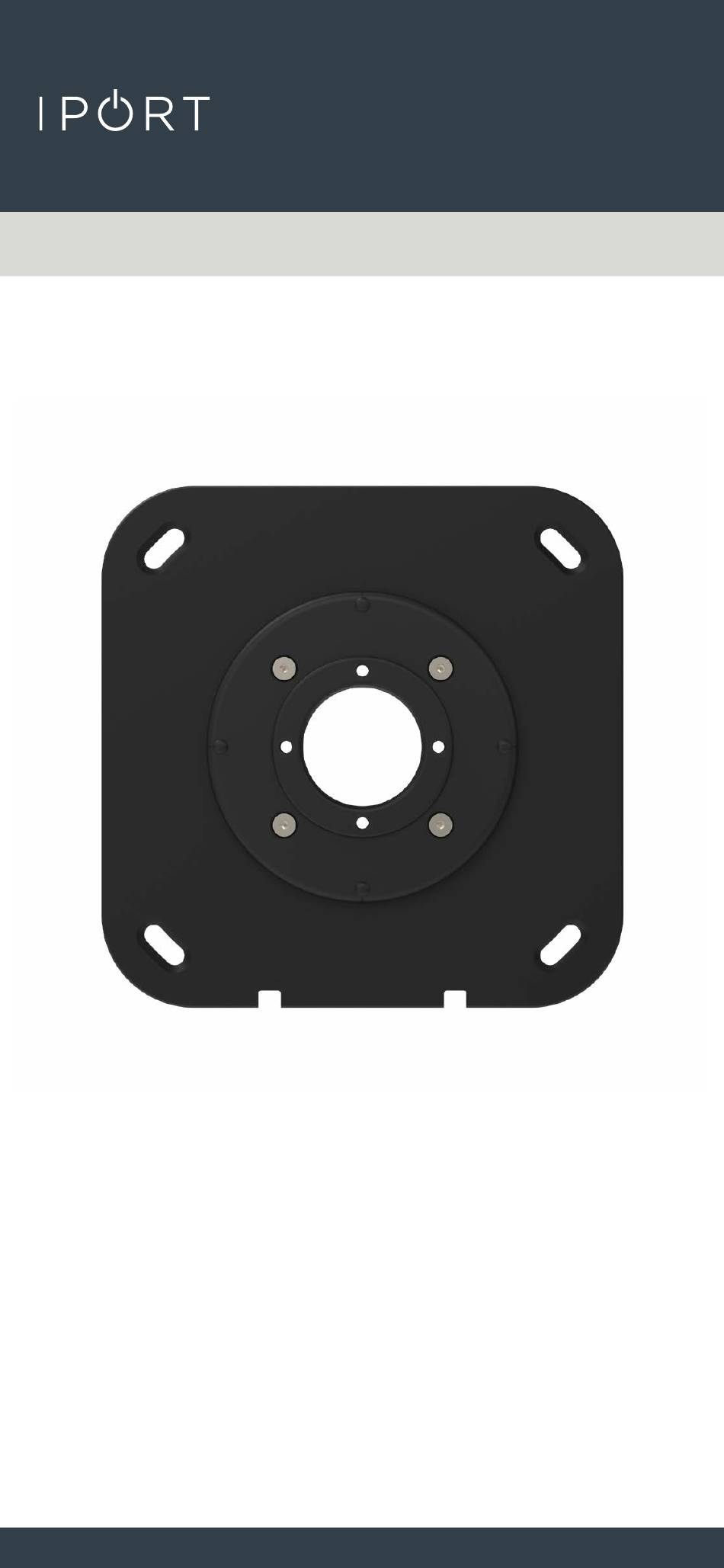

72356 - CONNECT Wall Mount Black
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 72356 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iPort 72356

Summary of Contents for iPort 72356

  • Page 1 CONNECT MOUNT WALLM OUN T 72356 - CONNECT Wall Mount Black...
  • Page 2 Case. • Mounting Bracket - The removable plastic insert that attaches to the CASE connecting the CASE to the Wall Mount bracket • IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.
  • Page 3 CONNECT MOUNT WALLM OUN T M O U NT I N STA LL OPT IONS Before starting, determine the install scenario that best describes your desired install. Then click on the title to be directed to the appropriate install steps. New Construction using Cat 6 Cable | pg.
  • Page 4 CONNECT MOUNT WALLM OUN T IPORT CONNECT WallMount Install New Construction - Cat6 Before Construction is complete 1. Determine the desired location of the IPORT CONNECT WallMount will live when the construction is completed.
  • Page 5 CONNECT MOUNT WALLM OUN T New Constructions Cat6 Install a 1 Gang electrical box or low voltage ring in the desired location of the Mount. Electrical NOTE: The CONNECT WallMount will cover a 1G electrical box only. A 2 Gang electrical box will interfere with the mounting hardware.
  • Page 6 CONNECT MOUNT New Constructions Cat6 WALLM OUN T Run a Cat6 cable terminated with an RJ45 Connectors (T568A or T568B) from the WallMount location to a network rack location and terminate the other end of the cable the same as before. NOTE: Make sure to secure the Cat6 cable appropriately onto the Electrical box or Low Voltage ring to retrieve at a later time.
  • Page 7 CONNECT MOUNT New Constructions Cat6 WALLM OUN T Installing the Mount After Construction Terminate the Cat6 with an RJ45 Connector if not done so previously using T568A or T568B standards. Remove the Mount, Drywall anchors and Screws from the box and place on a table.
  • Page 8 CONNECT MOUNT New Constructions Cat6 WALLM OUN T Insert the WallMount over the 1G box.
  • Page 9 CONNECT MOUNT New Constructions Cat6 WALLM OUN T 7. Use a leveling tool to level the Wall Mount and mark the 4 locations for the provided anchors. Remove the WallMount from the 1G Box. Screw the 4 provided anchors into the wall where marked.
  • Page 10 CONNECT MOUNT New Constructions Cat6 WALLM OUN T Connect the Molex Extension Cable to the Poe+ Network adapter making sure the gold pins are facing away from the molex connector. 10. Feed the cable though the hole in the mount.
  • Page 11 CONNECT MOUNT WALLM OUN T 11. Connect the Cat6 Cable to the Network Adapter and attach the Network Adapter onto the Connect Mount.
  • Page 12 CONNECT MOUNT WALLM OUN T New Constructions Cat6 12. Insert the Mount back into the 1G box and use the provided screws to attach the Mount to the wall making sure to level the mount before tightening the screws.
  • Page 13 CONNECT MOUNT New Constructions Cat6 WALLM OUN T 13. Insert the CONNECT mounting bracket into the CONNECT CASE making sure the bracket snaps into place securely.
  • Page 14 CONNECT MOUNT New Constructions Cat6 WALLM OUN T 14. Place the Case onto the MOUNT in the desired portrait or landscape orientation. Feed the IPORT Molex cable though the center of the mounting bracket.
  • Page 15 CONNECT MOUNT New Constructions Cat6 WALLM OUN T 15. Use the provided 4 machine screws to attach the Mounting Bracket to the CONNECT Mount Bracket. 16. Plug the molex connector from the Mount into the cable on the CONNECT CASE. Note the gold pins are facing outward when connecting into the Mount cable.
  • Page 16 CONNECT MOUNT WALLM OUN T Insert the iPad into the attached Case and install the top onto the Case.
  • Page 17 CONNECT MOUNT New Constructions Cat6 WALLM OUN T Use the provided IPORT Security tool to lock the Case top onto the Case securing the iPad. COMPLETE...
  • Page 18 CONNECT MOUNT WALLM OUN T Installing the Mount in Existing Construction - Cat6 Determine the desired location of the IPORT CONNECT WallMount. Use a 2-3/4” (70mm) hole saw to cut a hole in the desired location of the Wall Mount.
  • Page 19 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T Insert the Wall Mount into the 2-3/4 - inch hole and use a leveling tool to level the Mount. Mark the 4 locations for the provided Anchors. Remove the WallMount from the wall once you have marked the 4 anchor locations.
  • Page 20 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T Screw the provided anchors into the wall where marked.
  • Page 21 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T Use the 2 3/4 - inch hole to fish a Cat6 cable to a network rack. Terminate both ends the Cat6 with an RJ45 Connector using T568A or T568B standards...
  • Page 22 CONNECT MOUNT WALLM OUN T Connect the Molex Extension Cable to the Poe+ Network adapter making sure the gold pins are facing away from the molex connector. Feed the cable though the hole in the mount.
  • Page 23 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T 10. Connect the Cat6 Cable to the Network Adapter and attach the Network Adapter onto the Connect Mount.
  • Page 24 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T 11. Insert the WallMount back into the wall and use the provided screws to attach the WallMount to the wall anchors making sure to level the WallMount before tightening the screws.
  • Page 25 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T 12. Insert the CONNECT mounting bracket into the CONNECT CASE making sure the bracket snaps into place securely.
  • Page 26 CONNECT MOUNT WALLM OUN T 13. Place the Case onto the MOUNT in the desired portrait or landscape orientation. Feed the IPORT Molex cable though the center of the mounting bracket.
  • Page 27 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T 14. Use the provided 4 machine screws to attach the Mounting Bracket to the CONNECT Mount Bracket. 15. Plug the molex connector from the Mount into the cable on the CONNECT CASE. Note the gold pins are facing outward when connecting into the Mount cable.
  • Page 28 CONNECT MOUNT Existing Constructions Cat6 WALLM OUN T Insert the iPad into the attached Case and install the top onto the Case.
  • Page 29 CONNECT MOUNT WALLM OUN T Use the provided IPORT Security tool to lock the Case top onto the Case securing the iPad. COMPLETE...
