Summary of Contents for iPort 72393

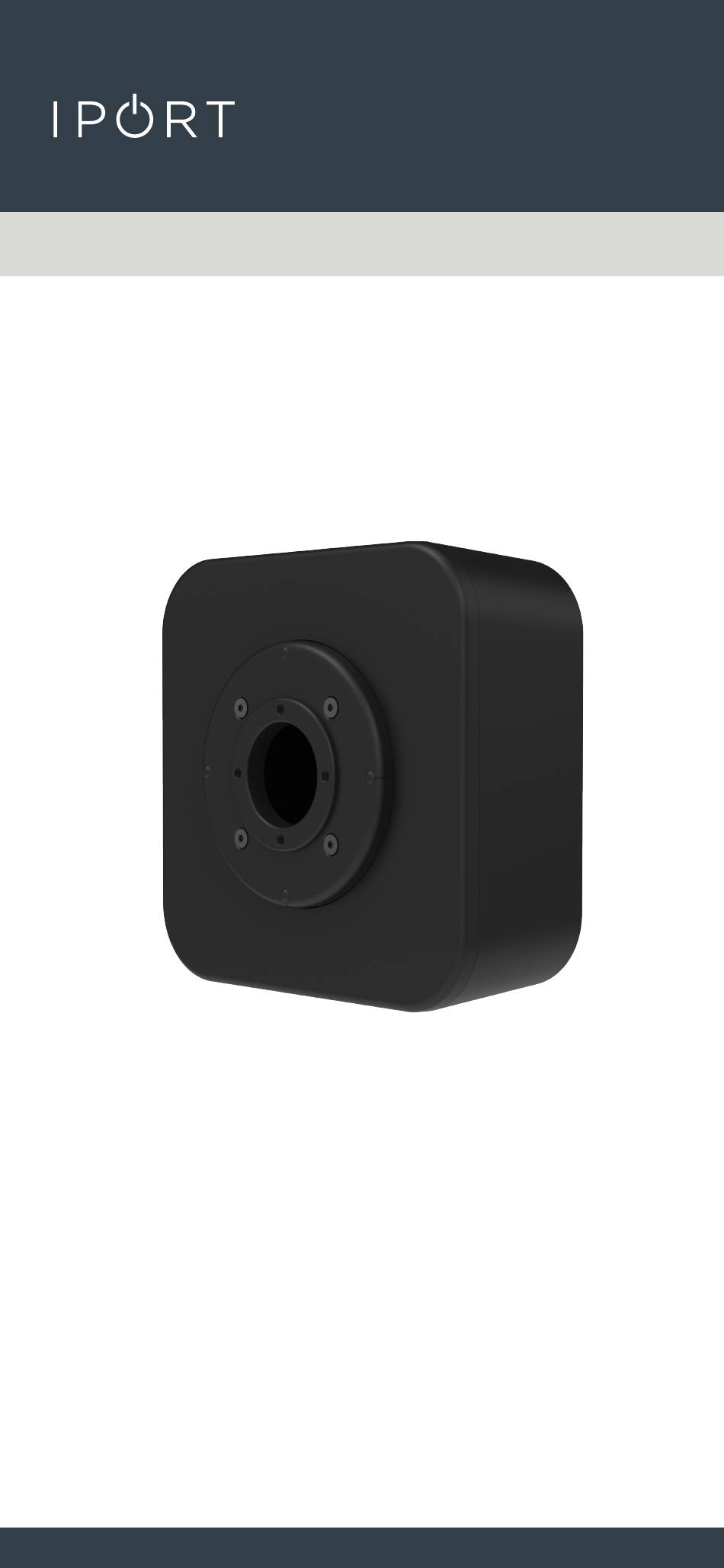

- Page 1 CONNECT MOUNT V ESA MO U NT 72393 - CONNECT VESA Mount - Black...
- Page 2 PRO VESA Station consisting of the Station, Cover and screws. • Station Cover - The thin plastic cover arround the round charging portion of the VESA Station. • IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.
- Page 3 CONNECT MOUNT V ESA MO U NT 1. The IPORT CONNECT VESA Station is desigend to conform to MIS-D standard and will work with most 75 mm x 75mm and 100mm x 100mm VESA mounts. 2. The IPORT CONNECT VESA Station...
- Page 4 CONNECT MOUNT V ESA MO U NT Remove the 4ea M4x10mm Screws from the back of the VESA Station.
- Page 5 CONNECT MOUNT V ESA MO U NT Install the Screws through the appropriate holes for your mount and screw into the back of the VESA Mount.
- Page 6 CONNECT MOUNT V ESA MO U NT Remove the ruber plug from the bottom of the VESA Mount and set aside for later.
- Page 7 CONNECT MOUNT V ESA MO U NT Insert the USB-C to Molex Cable thorugh the hole in the bottom of the VESA Station.
- Page 8 CONNECT MOUNT V ESA MO U NT Place the rubber grommit over the USB-C cable making sure to positoin the hooking end of the grommit away from the USB-C connector.
- Page 9 CONNECT MOUNT V ESA MO U NT Insert the rubber grommit with the hook first then pressing the grommit in all the way to secure it in place.
- Page 10 CONNECT MOUNT V ESA MO U NT...
- Page 11 CONNECT MOUNT V ESA MO U NT...
- Page 12 CONNECT MOUNT V ESA MO U NT 13. Insert the CONNECT mounting bracket into the CONNECT CASE making sure the bracket snaps into place securely.
- Page 13 CONNECT MOUNT V ESA MO U NT 14. Place the Case onto the MOUNT in the desired portrait or landscape orientation. Feed the IPORT Molex cable though the center of the mounting bracket.
- Page 14 CONNECT MOUNT V ESA MO U NT 15. Use the provided 4 machine screws to attach the Mounting Bracket to the CONNECT Mount Bracket. 16. Plug the molex connector from the Mount into the cable on the CONNECT CASE. Note the gold pins are facing outward when connecting into the Mount cable.
- Page 15 CONNECT MOUNT V ESA MO U NT Insert the iPad into the attached Case and install the top onto the Case.
- Page 16 CONNECT MOUNT V ESA MO U NT Use the provided IPORT Security tool to lock the Case top onto the Case securing the iPad. COMPLETE...
