- Page 1 Dolphin® 9500 Series Mobile Computer Microsoft® Windows Mobile® 5.0 ™ Quick Start Guide...

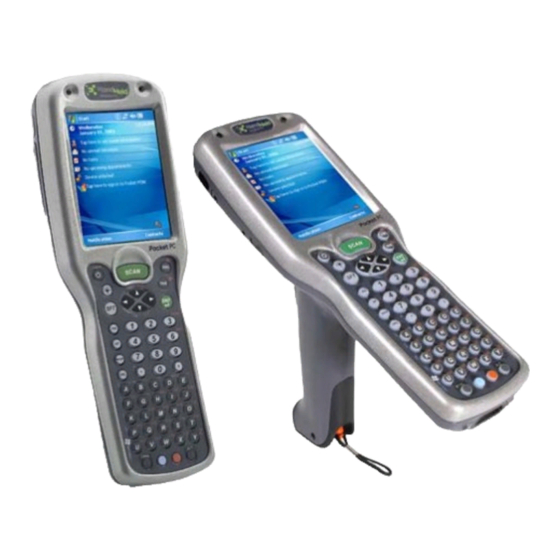

- Page 3 Dolphin 9500 Series Quick Start Guide Dolphin 9500 Series Terminals There are four terminals in the Dolphin 9500 Series: Dolphin 9500 Ergonomic form factor for single-handed use. Dolphin 9550 Integrated pistol grip for high-volume scanning applications. Dolphin 9501 Flashlight form factor with a laser scanner and imager.
-
Page 4: Hardware Overview
Hardware Overview The front, side, and bottom panels of all the terminals in the Dolphin 9500 Series are the same. Front Panel Side Panel Image Engine window Decode LED Scan LED Magnesium- IrDA COM Port alloy top cover Access Door to the... - Page 5 Dolphin 9500/9501 Back Panel Speaker Stylus (in slot) Microphone Battery Well (underneath the battery) Battery Note: The back panel of the Dolphin 9501 has an expanded bottom housing to accommodate the laser engine. Dolphin 9550/9551 Back Panel Dolphin 9550/9551 terminals feature an integrated pistol-grip on the back panel. Image Engine Window Rubber...
- Page 6 Setting Up Dolphin 9500 Series Terminals 1. Unpack the carton and verify its contents - page 4. 2. Install the battery in the terminal - page 4. 3. Charge the main battery in the terminal for a minimum of four hours - page 4.
- Page 7 For charging, use a Dolphin 9500 Series peripheral and the power cables provided by Hand Held Products. Use of peripherals or cables not sold/manufactured by Hand Held Products will void the warranty and may damage the terminal.
-
Page 8: Resetting The Terminal
Resetting the Terminal There are two ways to reset the terminal: a soft reset and a hard reset. Soft Reset: Press and hold the CTRL + SFT keys. A soft reset re-boots the terminal without erasing RAM data. Hard Reset: Press and hold the CTRL + ESC keys. -
Page 9: Online Technical Assistance
Telephone: +603-6201-7020 E-mail: aptechsupport@handheld.com Online Technical Assistance You can also access technical assistance online at www.handheld.com. Product Service and Repair Hand Held Products provides service for all its products through service centers throughout the world. To obtain warranty or non-warranty service, return the unit to Hand Held Products (postage paid) with a copy of the dated purchase record attached. -
Page 10: Online Product Service And Repair Assistance
Asia Pacific Telephone: +852-2511-3050 Fax: +852-2511-3557 E-mail: apservice@handheld.com Japan Telephone: +813-5770-6312 Fax: +813-5770-6313 E-mail: apservice@handheld.com Online Product Service and Repair Assistance You can also access product service and repair assistance online at www.handheld.com. Dolphin® 9500 Series Mobile Computer Quick Start Guide... -
Page 11: Limited Warranty
Hand Held Products, Inc. extends these warranties only to the first end users of the products. These warranties are non-transferable. The limited duration of the warranty for the Dolphin 9500 Series is as follows: • Dolphin 9500/9550 terminals with an integrated imager are covered by a two-year limited warranty. - Page 12 • Use only power adapters approved for use by Hand Held Products. Failure to do so may result in improper operation or damage to the unit and will void the warranty. How to Extend Your Warranty Hand Held Products offers a variety of service plans on our hardware products. These agreements offer continued coverage for your equipment after the initial warranty expires.
- Page 13 Dolphin® 9500 Series Mobile Computer Quick Start Guide...
- Page 14 Dolphin® 9500 Series Mobile Computer Quick Start Guide...
- Page 15 Hand Held Products. 2007 Hand Held Products, Inc. All rights reserved. Web Address: www.handheld.com Trademarks Dolphin, Dolphin RF, HomeBase, Mobile Base, and QuadCharger are trademarks or registered trademarks of Hand Held Products, Inc.
