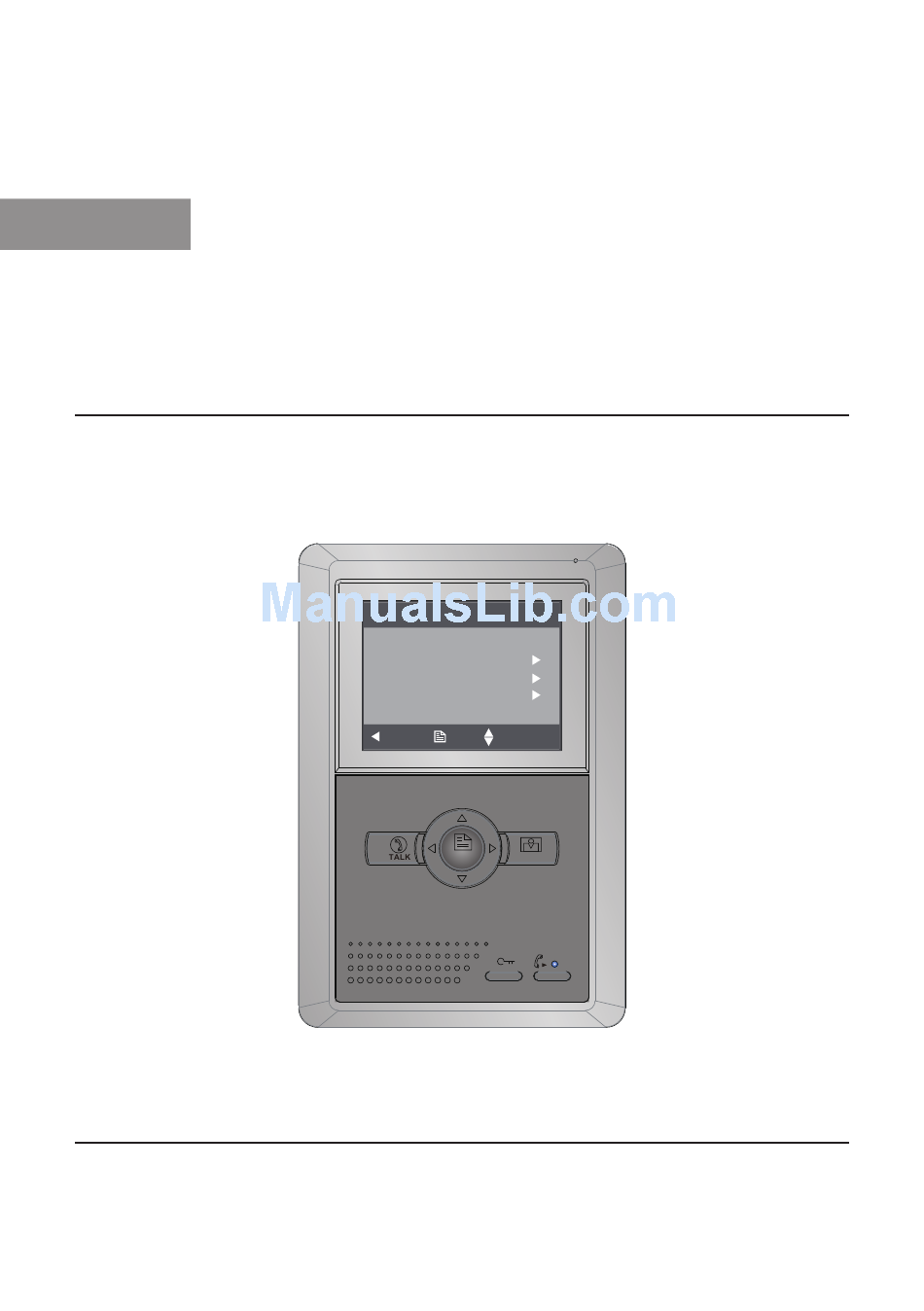

Page 1: User Manual
English VIDEO INTERCOM SYSTEM USER MANUAL Main Menu Monitor ... Intercom Alarm Function ... User Setup Close About Select Item MONITOR MENU C5-AT25/D4 Version 1.0 120313... -
Page 3: Parts And Functions
1. Parts and Functions Microphone LCD Screen Select Item Mounting Hook Navigation Button MENU Button MONITOR Button TALK Button MONITOR TALK MENU Main Connection Port UNLOCK Button Speaker LED Indicator Mounting Hook CALL Button 2. Mounting 1. Fix 2 screws to the wall at a appropriate height 2. -
Page 4: Image And Volume Adjustment
2. Operation Instructions 1. When visitor inputs room number in Door Station of the block or main entrance, the Monitor rings, at the same time, the screen displays the visitor’s image. 2. By pressing TALK Button, you can talk with the visitors for 70 seconds. - Page 5 4. Operation for ring selection User Setup Door Station Call Select item on main menu page to enter setup page.Select Tone Inercom Call Tone DoorBell Call Tone item, There are 12 pieces ring tones can be selected.use Button to select last/next ring tone, press MENU button to save and exit. Door Station Call Tone :set the ring tone calling from outdoor station.
-
Page 6: Date And Time Setting
6. Date and Time Setting Date&Time Setup User Setup Select item on main menu page to enter setup page,then use ▲ / ▼ button to select Date&Time Setup... item and pres MENU button to 2010 - 12 - 20 17:17 enter. - Page 7 9. Defense Alarm Function(Optional) This system have auto-alarm function to ensure the security for the house owner. Total 4 different sensors were placed to protect different defense area. When the sensor was triggered, the monitor will sent out alarm sound immediately and will sent the alarm signal to the guard center at the same time.
- Page 8 ○ Operation instructions： Select Alarm Function on main menu Alarm Function page to enter alarm function page as Armed-Out shown on the right. Armed-Stay Home Disarm Alarm Status ... 1. Select item to trigger Armed-Out Change Password ... defense function,If the armed function Exit Adjust is activated,the...
-
Page 9: Remote Control Function(Optional)
10. Remote Control Function(optional) This function should be customized. Keypad functions of the remote control. [A] Button: Work as Emergency Help Button, press and hold this button for 3s, the monitor will sent out the emergency help signal to the guard center. [B] Button: Arm button, press and hold this button for 1s will arm the system(same result as enter Main Menu-->... -
Page 10: Specification
13. Specification ● Power supply for Monitor: DC 15~18V ● Power consumption: <0.5W on standby, <15W on working ● Monitor screen: 4 Inch digital TFT ● Video signal: 1Vp-p, 75Ω, CCIR standard ● Resolution: >300 TV lines ● Door Camera power: DC 10~12V (Supplied by Monitor) ●... - Page 12 Please read this manual carefully before using the product you purchase, and keep it well for future use.We reserve the right to modify the specification in this manual at any time without notice.
