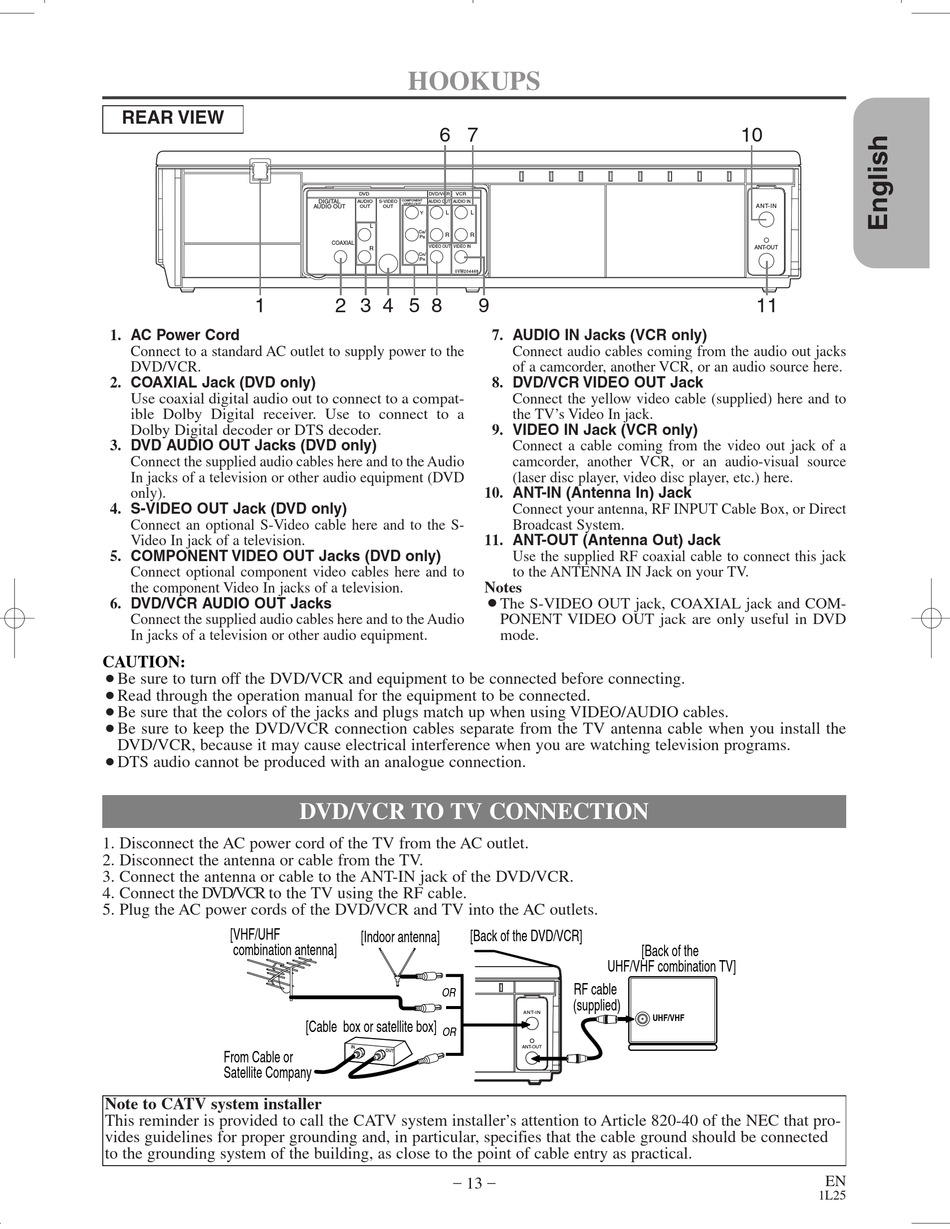

REAR VIEW
1
1. AC Power Cord
Connect to a standard AC outlet to supply power to the
DVD/VCR.
2. COAXIAL Jack (DVD only)
Use coaxial digital audio out to connect to a compat-
ible Dolby Digital receiver. Use to connect to a
Dolby Digital decoder or DTS decoder.
3. DVD AUDIO OUT Jacks (DVD only)
Connect the supplied audio cables here and to the Audio
In jacks of a television or other audio equipment (DVD
only).
4. S-VIDEO OUT Jack (DVD only)
Connect an optional S-Video cable here and to the S-
Video In jack of a television.
5. COMPONENT VIDEO OUT Jacks (DVD only)
Connect optional component video cables here and to
the component Video In jacks of a television.
6. DVD/VCR AUDIO OUT Jacks
Connect the supplied audio cables here and to the Audio
In jacks of a television or other audio equipment.
CAUTION:
¡
Be sure to turn off the DVD/VCR and equipment to be connected before connecting.
¡
Read through the operation manual for the equipment to be connected.
¡
Be sure that the colors of the jacks and plugs match up when using VIDEO/AUDIO cables.
¡
Be sure to keep the DVD/VCR connection cables separate from the TV antenna cable when you install the
DVD/VCR, because it may cause electrical interference when you are watching television programs.
¡
DTS audio cannot be produced with an analogue connection.
1. Disconnect the AC power cord of the TV from the AC outlet.
2. Disconnect the antenna or cable from the TV.
3. Connect the antenna or cable to the ANT-IN jack of the DVD/VCR.
4. Connect the DVD/VCR to the TV using the RF cable.
5. Plug the AC power cords of the DVD/VCR and TV into the AC outlets.
[VHF/UHF
combination antenna]
From Cable or
Satellite Company
Note to CATV system installer
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that pro-
vides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected
to the grounding system of the building, as close to the point of cable entry as practical.

HOOKUPS

6 7
DVD
DVD/VCR
VCR
COMPONENT
DIGITAL
AUDIO
S-VIDEO
AUDIO OUT
AUDIO IN
VIDEO OUT
AUDIO OUT
OUT
OUT
Y
L
L
C
/
B
R
P
B
COAXIAL
VIDEO OUT
VIDEO IN
R
C
/
R
P
R
0VM204468
2 3
4
5
8

DVD/VCR TO TV CONNECTION

[Indoor antenna]
OR
[Cable box or satellite box]
OR
IN
OU T
– 13 –
L
R
9
7. AUDIO IN Jacks (VCR only)
Connect audio cables coming from the audio out jacks
of a camcorder, another VCR, or an audio source here.
8. DVD/VCR VIDEO OUT Jack
Connect the yellow video cable (supplied) here and to
the TV's Video In jack.
9. VIDEO IN Jack (VCR only)
Connect a cable coming from the video out jack of a
camcorder, another VCR, or an audio-visual source
(laser disc player, video disc player, etc.) here.
10. ANT-IN (Antenna In) Jack
Connect your antenna, RF INPUT Cable Box, or Direct
Broadcast System.
11. ANT-OUT (Antenna Out) Jack
Use the supplied RF coaxial cable to connect this jack
to the ANTENNA IN Jack on your TV.
Notes
¡The S-VIDEO OUT jack, COAXIAL jack and COM-
PONENT VIDEO OUT jack are only useful in DVD
mode.
[Back of the DVD/VCR]
UHF/VHF combination TV]
RF cable
(supplied)
ANT-IN
ANT-OUT
10
ANT-IN
ANT-OUT
11
