DVD/VCR Combo (DVD PLAYER with VIDEO CASSETTE RECORDER)
INSTRUCTION MANUAL
MODEL
DV-PF7E(UK)
AV3
VIDEO IN
L (mono)
AUDIO IN R
PAL
REC TIMER
Instruction manual
To obtain the best performance and ensure years of trouble-
free use, please read this instruction manual completely.
VIDEO Plus+ and PlusCode are
registered trademark of Gemstar
Development Corporation.
The VIDEO Plus+ system is
manufactured under licence from
Gemstar Development Corporation.
MP3 PLAYBACK DVD / DVD-R / CD / CD-R / CD-RW COMPATIBLE
VCR
DVD
PROGRAM
OUTPUT
DVD/VCR Combo DV-PF7E(UK)

Advertisement

loading

  Related Manuals for Hitachi DV-PF7UK

  Summary of Contents for Hitachi DV-PF7UK

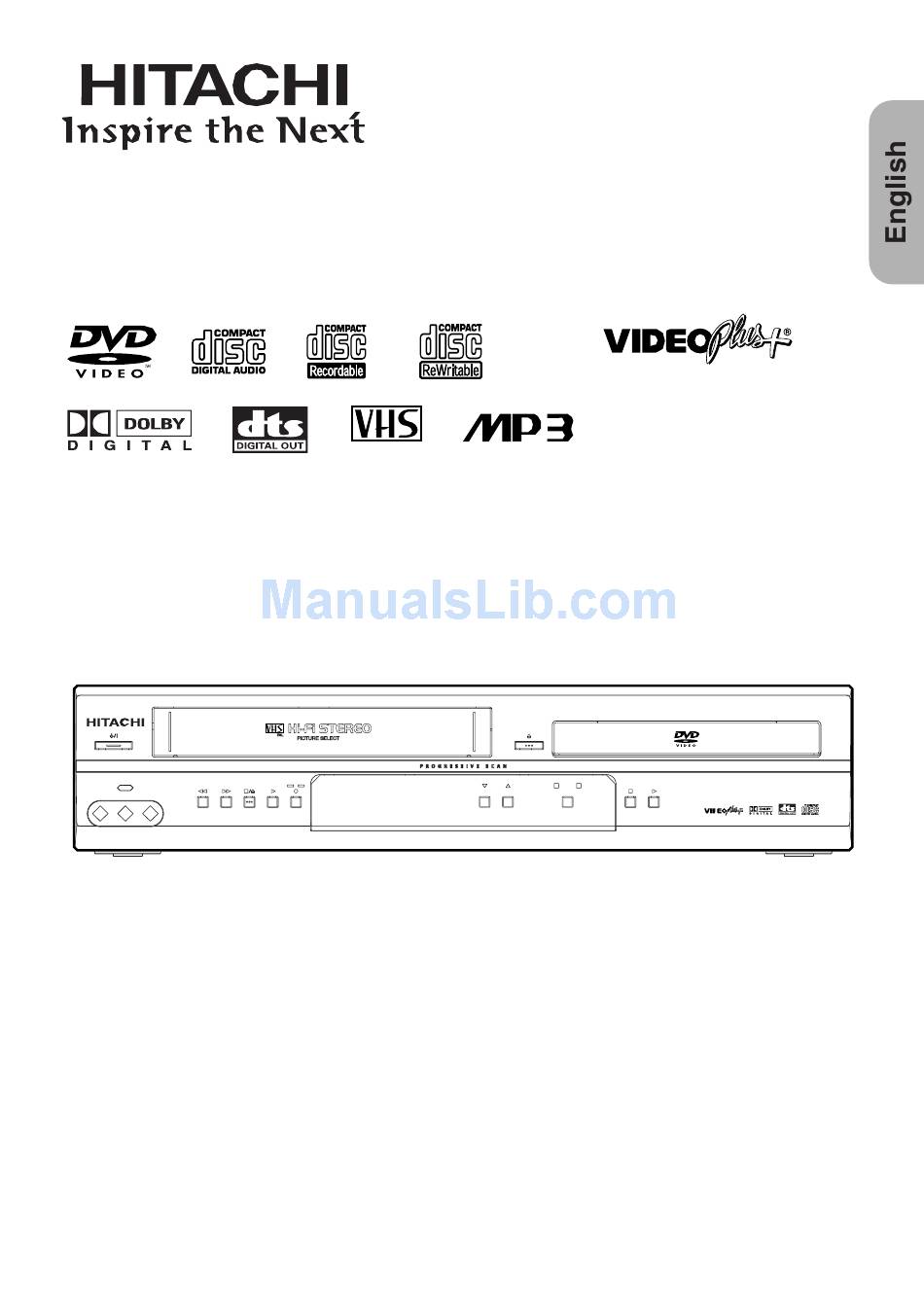

  • Page 1 DVD/VCR Combo (DVD PLAYER with VIDEO CASSETTE RECORDER) INSTRUCTION MANUAL VIDEO Plus+ and PlusCode are registered trademark of Gemstar Development Corporation. The VIDEO Plus+ system is manufactured under licence from Gemstar Development Corporation. MODEL DV-PF7E(UK) MP3 PLAYBACK DVD / DVD-R / CD / CD-R / CD-RW COMPATIBLE REC TIMER DVD/VCR Combo DV-PF7E(UK) PROGRAM...
