- Page 1 DCR-2500 Wireless Receiver User Guide www.dakotaalert.com DCR2500 Manual.indd 1 4/6/2010 8:23:34 AM...

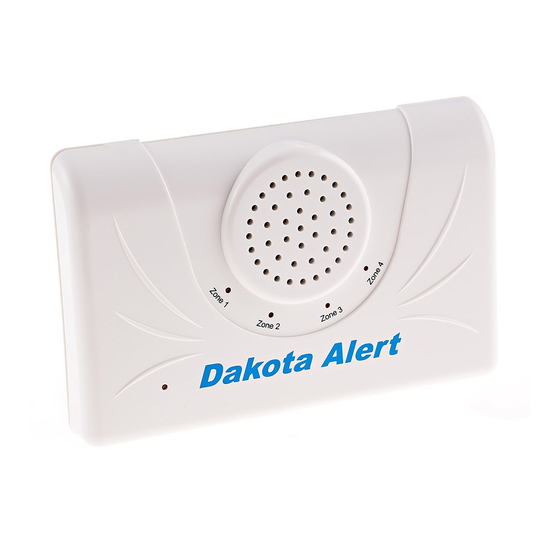

- Page 2 The DCR-2500 receiver can be used with any of the Dakota Alert 2500 series transmitters. The DCR-2500 plugs in to a standard wall outlet and can be placed on a table or mounted on the wall. When the receiver gets a signal from the transmitter one of 4 different tones (Classical, Westmin- ster Chime, Ding Dong, Whistle) will sound for a few seconds.
- Page 3 Figure 1 For maximum range between the transmitter and receiver, the receiver should be mounted hori- zontally on a wall and as high off the floor as possible. Although the maximum range is about ½ mile, things such as hills, trees, metal siding and stucco can all reduce the range. DCR2500 Manual.indd 3 4/6/2010 8:23:35 AM...
- Page 4 coding the receiver: 1. Open the receiver case by inserting a small screw driver into one of the pry notches on the side of the case. 2. Gently lift off the front cover. 3. Locate the 8 dip switches on the receiver (Figure 1-3) and make sure they are set identical to the first 8 dip switches on the transmitter.
- Page 5 tone, relay and voltage output: 1. Each of the four transmitter zones (selectable by switch 9 & 10) will sound a tone and activate the corresponding relay on the receiver. 2. The form “C” relays are rated for 24 VDC at 3 Amp maximum current. 3.
- Page 6 Zone lights: The receiver has a red led light for each of the four zones. The lights can be set to blink for every activation up to ten and then repeat or turn on once for ten seconds when a signal is received. 1.
- Page 7 4. To cancel the reminder beep press the “A” button for 0.5 seconds. 5. You can also use jumper “J2” (Figure 1-5) in the receiver to select which zones will have the reminder beep. If the jumper covers both pins for a zone, that zone will have the reminder beep. If the jumper is on only one pin, the zone will not have the reminder beep.
- Page 8 WARRANTY: Dakota Alert warrants this product to be free of defects in material and workman- ship for a period of one year from the date of purchase. This warranty does not cover damage resulting from accident, abuse, act of God or improper operation.
