PR-2500
Portable
Receiver
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PR-2500 and is the answer not in the manual?

Questions and answers

Related Manuals for Dakota Alert PR-2500

Summary of Contents for Dakota Alert PR-2500

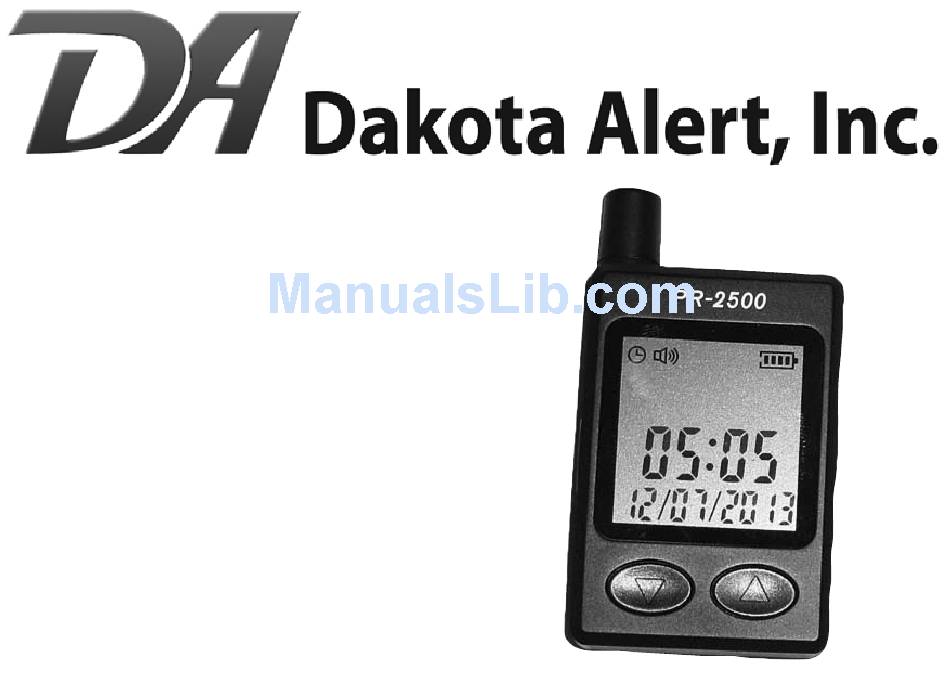

  • Page 1 PR-2500 Portable Receiver Owner’s Manual...
  • Page 2 1. This device may not cause harmful interference. 2. This device must accept any interference, including interference that may cause undesired operation. iNTrOduCTiON The PR-2500 receiver is compatible with all Dakota Alert 2500 and 3000 series transmitters. The PR-2500 is capable of receiving and storing alert signals from four zones.
  • Page 3 Each zone can store up to 400 events with a time and date stamp or up to 999 events without a time and date stamp. The PR-2500 is pow- ered by a rechargeable Li-Ion battery which will hold a charge for up to 10 days.
  • Page 4 Figure 2 THE Pr-2500 (Figure 2) 1. LCD display 2. (Side button) ON/OFF and Mode button 3. Left Button 4. Right Button 5. Charger plug 6. Reset button...
  • Page 5 LCd display - Time/date Mode LCd display alert Mode (Figure 3) (Figure 4) 1. Time and Date mode 1. Last Channel received 2. Audible Tone icon 2. Number of alerts stored on 3. Vibrate Alert icon the indicated channel 4. Lock icon 3.
  • Page 6 Mode When the PR-2500 receives an alert, the LCD display changes to alert mode. The dis- play will remain in alert mode, showing the most recent alert received until manually reseting to time/date mode. Push the right button to change from the alert mode to the time/date mode.
  • Page 7 Setting the Time and date 1. Push the side and right button to enter the time/date setting screen in the pro- gramming mode. The hour digits will be flashing. 2. Push the right button to change the hour to the correct setting.
  • Page 8 Programming the vibrate alert From the audible tone setting screen, push the side button to access the vibrate alert programming screen. The vibrate alert icon will flash and there will be “ON” or “OFF” in the upper right section of the display. Use the right button to toggle between on and off.
  • Page 9 Locking the display Pushing the left and right buttons at the same time will lock the display in the time/ date mode. The top of the display (figure 3) and no other screens can be viewed. Pushing the left and right buttons again will unlock the display. Viewing alert log Push the side and left buttons at the same time to acess the alert log.

  • Page 10: Reset Button

    If the PR-2500 stops responding correctly, the reset but- ton should be pushed. The reset button is located inside the small hole directly below the side button (figure 2).
  • Page 11 WarraNTY Dakota Alert warrants this product to be free of defects in material and workman- ship for a period of one year from the date of purchase. This warranty does not cover damage resulting from accident, abuse, act of God or improper operation.
  • Page 12 Dakota Alert, Inc. Phone: (605) 356-2772 32556 E. Main Street Fax: (605) 356-3662 P0 Box 130 Web: www.dakotaalert.com Elk Point, SD 57025...
