Summary of Contents for Dakota Alert RE-4k Plus

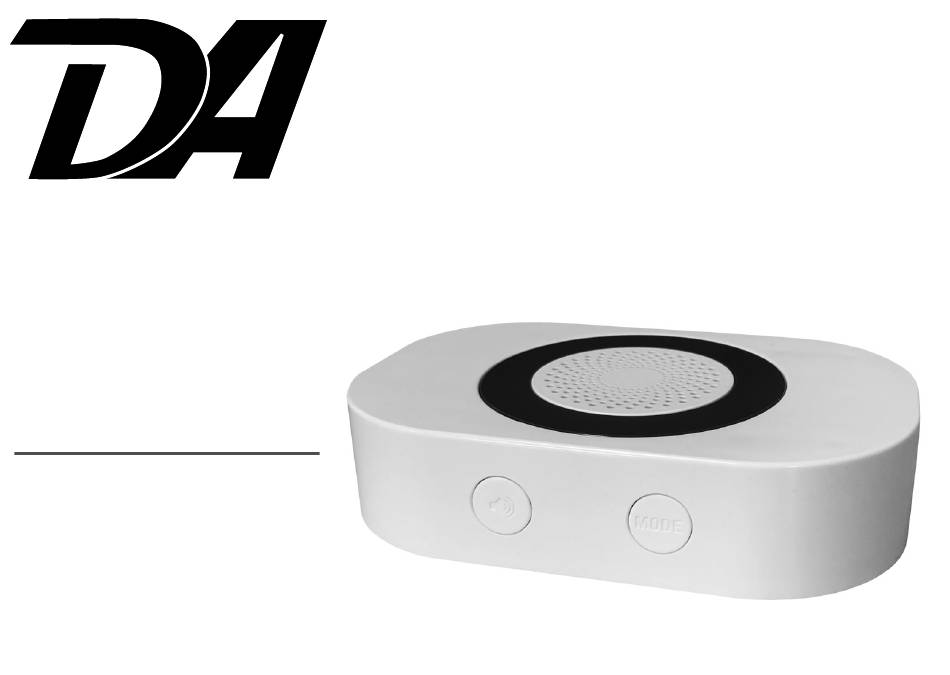

- Page 1 Dakota Alert ® WIRELESS SECURITY EQUIPMENT Wireless Receiver RE-4k Plus USER GUIDE www.dakotaalert.com...

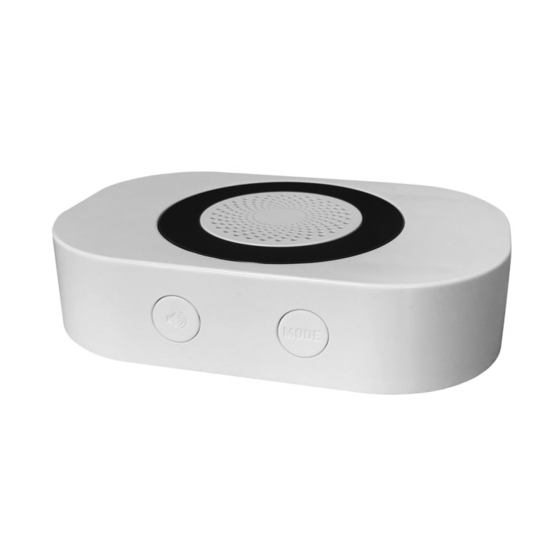

- Page 2 OVERVIEW Bottom Power adapter jack Terminals Front Speaker LEDs Volume button Mode button Back DIP switches Mounting holes...
-
Page 3: Package Contents
PACKAGE CONTENTS • RE-4k Plus receiver • Power adapter • User Guide POWERING YOUR RECEIVER 1. Connect the power adapter to the jack in the bottom of the receiver. 2. Plug the power adapter into an AC outlet. Power adapter... -
Page 4: Setting Up Your Receiver
SETTING UP YOUR RECEIVER “Basic Setup” lets you choose the tune and LED settings you want for Dakota Alert 4000 Series transmitters. In addition to tune and LED settings, “Advanced Setup” lets you set up exterior sensors using the Relay 1, Relay 2, and the 12 VDC terminals. - Page 5 4. After you choose a tune, activate the transmitter (for example, press its button or wave your hand over its motion sensor). The receiver emits a short beep to confi rm the transmitter has been coded. Note: If you accidentally activate the transmitter on the wrong tune, press the (volume) button to reselect a tune and reactivate the transmitter.
- Page 6 ADVANCED SETUP Note: You can connect up to 16 Dakota Alert 4000 Series transmitters to your receiver. Each transmitter can be set to independently sound a tune, fl ash the LED, or control the 12VDC output and relay outputs for the selected time.
- Page 7 4. Press the (volume) button repeatedly until you fi nd the tune you want to sound when a transmitter is activated. 1 Ding Dong (high) Alarm/Siren William Tell 13 Beep (high) 2 Ding Dong (low) Coo Coo Clock 10 Canon in D 14 Beep (low) 3 Westminster Bird Chirping...
- Page 8 CONNECTING WIRES TO THE TERMINALS The RE-4k Plus receiver has two relay outputs (NO, COM, NC) and a 12 VDC (+ and –) output terminal. Back of receiver 1. To connect lead wires to the terminals, strip off 3/8” (10 mm) of insulation from the end of the wire.
-
Page 9: Adjusting The Volume
LOW BATTERY INDICATOR If the RE-4k Plus receiver plays your transmitter’s tune twice and the LED blinks slowly for ten minutes after the transmitter is activated, your sensor’s battery is low. Replace the battery. -
Page 10: Mounting The Receiver
DELETING ALL SENSORS 1. Press and hold the MODE button for three seconds until the LEDs fl ash slowly. 2. Press and hold the MODE and (volume) buttons again for fi ve seconds. The four lights fl ash quickly, then turn off . The receiver is reset, and all codes are deleted. Note: To recode transmitters to the receiver, see “Basic Setup”... -
Page 11: Specifications
WARRANTY Dakota Alert warrants this product to be free of defects in materials and workmanship for a period of one year from the date of purchase. This warranty does not cover damage resulting from accident, abuse, act of God, or improper operation. -
Page 12: Legal Notices
• Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. WARNING: Cancer and Reproductive Harm. Go to www.P65Warnings.ca.gov for more information. Dakota Alert, Inc. Dakota Alert ® www.dakotaalert.com WIRELESS SECURITY EQUIPMENT...
