Owner's Manual

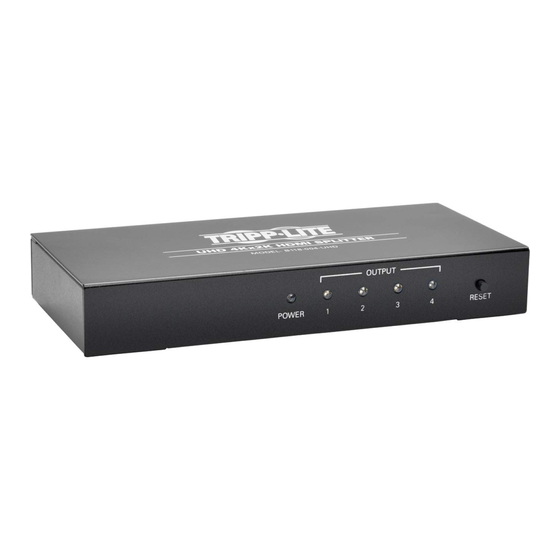

HDMI Splitters
Models: B118-002, B118-004
Product Features
Package Contents
Optional Accessories
Standard Installation Instructions
Cascaded Installation Instructions
Troubleshooting
Warranty & Warranty Registration
1111 W. 35th Street, Chicago, IL. 60609 • www.tripplite.com/support
Copyright © 2013 Tripp Lite. All rights reserved.
1
2
2
2
3
4
5
6
8/2/2013 4:04:44 PM
Advertisement
Table of Contents
Related Manuals for Tripp Lite B118-004
Summary of Contents for Tripp Lite B118-004
- Page 1 Product Features Package Contents Optional Accessories Standard Installation Instructions Cascaded Installation Instructions Troubleshooting Warranty & Warranty Registration 1111 W. 35th Street, Chicago, IL. 60609 • www.tripplite.com/support Copyright © 2013 Tripp Lite. All rights reserved. 13-07-120 93-32BD.indd 1 8/2/2013 4:04:44 PM...
-
Page 2: Product Features
• Supports High-Speed HDMI and 3D • HDCP and EDID compatible • Expand the number of connected displays by cascading multiple splitters together • Plug and play; no software or drivers required Package Contents • B118-002 or B118-004 HDMI Splitter • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 1.2A) • Owner’s Manual Optional Accessories: • P566-Series HDMI to DVI Adapter Cables* • P568-Series High-Speed HDMI Cables *When using a HDMI to DVI adapter cable, only the video signal will be transmitted to the DVI monitor. -
Page 3: Standard Installation Instructions
Standard Installation Instructions Note: The maximum distances referenced in these instructions have been tested at a video resolution of 1080p (60Hz) with 36-bit (12-bits per channel) Deep Color using 28AWG HDMI cables. Longer distances between the splitter and connected monitors are achievable using 24AWG HDMI cables and/or a source that is set to display a lower video resolution. -
Page 4: Cascaded Installation Instructions
Cascaded Installation Instructions Note: The maximum distances referenced in these instructions have been tested at a video resolution of 1080p (60Hz) with 36-bit (12-bits per channel) Deep Color using 28AWG HDMI cables. Longer distances between the splitter and connected monitors are achievable using 24AWG HDMI cables and/or a source that is set to display a lower video resolution. -
Page 5: Troubleshooting
Troubleshooting If you are unable to get an acceptable image after following the installation instructions, try the troubleshooting tips below. Press the reset button on the front of the splitter to reset the signal being sent to the connected displays. Is the external power supply that came with the product connected and plugged into a working power source? For the product to function properly, it must be connected to and receiving power from the external power supply. Was the power to the connected devices turned off prior to installation? If not, restart them. What resolution are you trying to reach? Tripp Lite’s HDMI splitters are tested to support up to 1080p @ 60Hz video resolution, at 36-bit (12- bits per channel) Deep Color. What length HDMI cable are you using? (See the Installation section in this manual for details on the maximum cable distance). The shorter the cable being used, the higher the resolution you will be able to obtain. If you are not able to get an acceptable image, try using a shorter cable, or lowering your source’s video resolution, or color depth settings. What type of cabling are you using? Inferior cabling can result in poor performance, so it is important that you use cables that can support the video resolution you are trying to obtain. It is recommended that you use Tripp Lite’s P568-Series High-Speed HDMI cables, as they have been tested to work with the B118-Series splitters. -
Page 6: Warranty & Warranty Registration
Warranty & Warranty Registration 1-Year Limited Warranty TRIPP LITE warrants its products to be free from defects in materials and workmanship for a period of one (1) year from the date of initial purchase. TRIPP LITE’s obligation under this warranty is limited to repairing or replacing (at its sole option) any such defective products. To obtain service under this warranty, you must obtain a Returned Material Authorization (RMA) number from TRIPP LITE or an authorized TRIPP LITE service center. Products must be returned to TRIPP LITE or an authorized TRIPP LITE service center with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment which has been damaged by accident, negligence or misapplication or has been altered or modified in any way. EXCEPT AS PROVIDED HEREIN, TRIPP LITE MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; therefore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser. - Page 7 Warranty & Warranty Registration WEEE Compliance Information for Tripp Lite Customers and Recyclers (European Union) Under the Waste Electrical and Electronic Equipment (WEEE) Directive and implementing regulations, when customers buy new electrical and electronic equipment from Tripp Lite they are entitled to: • Send old equipment for recycling on a one-for-one, like-for-like basis (this varies depending on the country) • Send the new equipment back for recycling when this ultimately becomes waste WARNING Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended. Do not use this equipment in the presence of a flammable anesthetic mixture with air, oxygen or nitrous oxide.
- Page 8 1111 W. 35th Street, Chicago, IL. 60609 • www.tripplite.com/support 13-07-120 • 93-32BD_revA 13-07-120 93-32BD.indd 8 8/2/2013 4:04:45 PM...
