Owner's Manual
Model #: B118-302-R

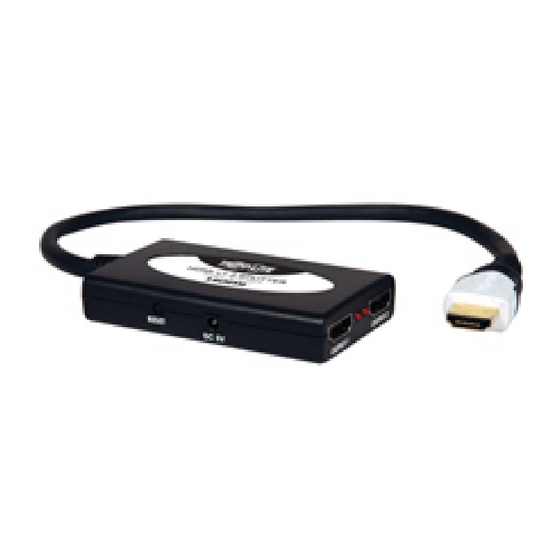

HDMI v1.3 Splitter - 2Port
Description
Tripp Lites v1.3 HDMI Splitter allows a digital signal to be displayed on multiple HDMI or DVI-D Single Link monitors. Up to 64 displays can be
connected by cascading additional splitters up to three levels. Splitters can be stationed up to 100ft away from the video source with a combination of
Tripp Lite long length HDMI cables ( P568-050, P568-100 ), and HDMI Signal Booster, Tripp Lite B122-000 or B123-001.
Applications
Retail, Classroom, Movie Theaters...anywhere a HD signal needs to be broadcast to multiple digital dispays
Package Includes
B118-302-R 2-Port v1.3 HDMI Splitter
Power Adapter
Owners Manual
Features
HDMI v1.3 and HDCP Compliant
Compatible with 720i, 720p, 1080i, and 1080p Resolutions
Connects to both HDMI and DVI-D Single Link Displays
Cascadable to support up to 64 displays
1-Year Limited Warranty
Specifications
CONNECTIONS
Connector A
Connector B
Highlights
HDMI (FEMALE)
(X2) HDMI (FEMALE)
HDMI v1.3 and HDCP Compliant
Compatible with 720i, 720p, 1080i, and 1080p Resolutions
Connects to both HDMI and DVI-D Single Link Displays
Tripp Lite
1111 West 35th Street
Chicago, IL 60609 USA
Telephone: +(773) 869 1234
E-mail:
saleshelp@tripplite.com
