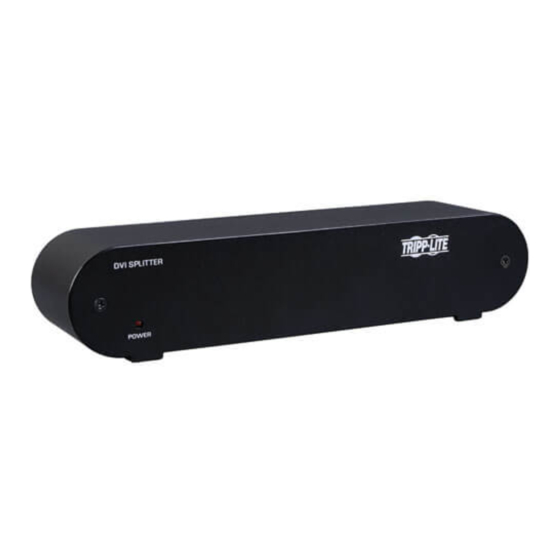

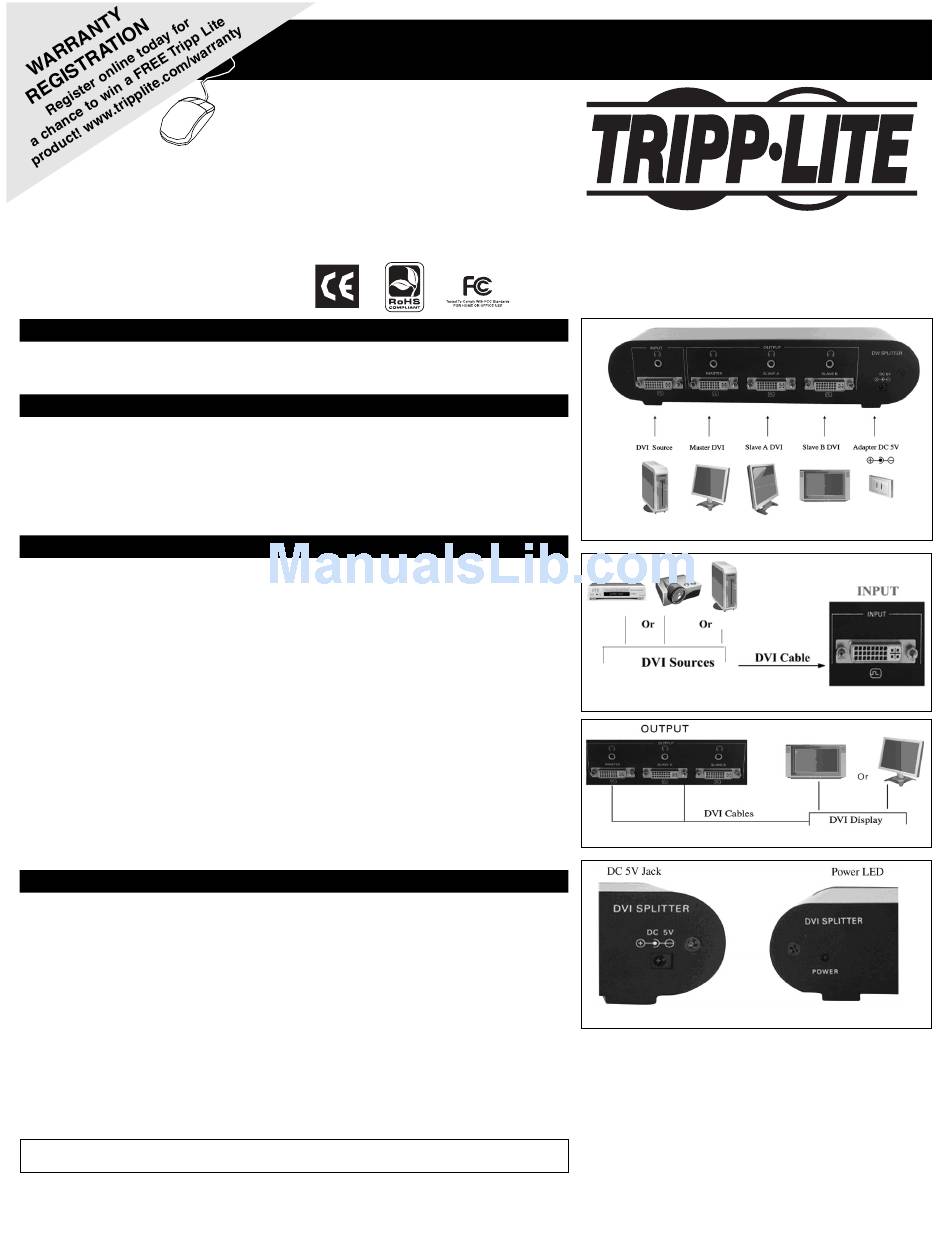

Tripp Lite DVI Video Splitter/Booster w/Audio B116-A03 Owner's Manual

DVI Single Link
1-to-3 Splitter with Audio
Model: B116-A03

Package Contents

• B116-A03 DVI Single Link 1-to-3 Splitter
• Owner's Manual

Overview and Product Features

The B116-A03 DVI Single Link 1-to-3 Splitter enables a single DVI+ Audio source to be split
and displayed on up to three DVI monitors simultaneously. Key product features are:
• 5V, 1A power consumption
• Supports bandwidths up to 4.95Gbps
• Supports resolutions up to 1920 x 1080

Installation

Figure 1: Location of Input/Output Connections
1. Connect the DVI source device to the splitter marked INPUT on the B116-A03. Connect
DVI source headphones or speakers to the audio jack. (Figure 2)
Figure 2: Connection of DVI Sources
2. Connect the DVI and audio cables between the DVI displays and the B116-A03 splitters
marked OUTPUT MASTER, OUTPUT SLAVE A and OUTPUT SLAVE B. (Figure 3)
• Make sure that the DVI and audio source cables are connected to the INPUT port, and
that and the DVI and audio display cables are connected the OUTPUT ports.
• The lowest-resolution display must be connected to the OUTPUT MASTER port at all
times. This resolution will be used for all slave monitors.
• OUTPUT SLAVE A and OUTPUT SLAVE B are interchangeable
Figure 3: Connection of Output Devices
3. Connect the cord from the DC adapter to the DC 5V jack and plug it into a wall outlet. The
front POWER LED will illuminate. (Figure 4)
Figure 4: Connection of DC Adapter
4. Turn on the power to your DVI display before powering your DVI sources.

Troubleshooting

If you experience problems with your B116-A03, switch, try the following remedies:
• Ensure that source and display cabling is working properly. Connect a DVI cable between
the source and the display to verify that the cable is functional. Repeat to test all cables.
• If DVI cables are functioning properly, use two cables to test the ports on the B116-A03
splitter. Connect one cable between the DVI source and the INPUT port. Use the second
cable to plug between the OUTPUT MASTER and the DVI display. Using the same
display, continue testing by connecting the display to OUTPUT SLAVE A and OUTPUT
SLAVE B. If all ports work, the B116-A03 is functioning correctly.
• If the unit is plugged in and the Power LED is not lit, verify that the power supply is
functioning. Use a voltmeter to measure the output of the DC adapter to verify that 5V is
present. If output is 5V, the DC adapter is functional and the B116-A03 switch has failed.
Note: The positive (+) is in the middle of the plug and the ground (-) is on the exterior of
the plug.
Warranty & Warranty Registration on Page 4
Note: Follow these instructions and operating procedures to ensure correct performance and to prevent damage to this unit or to its connected devices.
Owner's Manual
• AC Adapter (100-240V), 5V 1A Output
