Tripp Lite B116-002 Owner's Manual

Model: B116-002

Package Contents

• B116-002 DVI Single Link 1-to-2 Splitter
• AC Adapter (100-240V), 5V 0.5A Output
• Owner's Manual

Overview and Product Features

The B116-002 DVI Single Link 1-to-2 Splitter enables a single DVI source to be split and
displayed on two DVI monitors simultaneously. Key product features are:
• 5V 0.5A power consumption
• Supports resolutions to UXGA
• Up to 165 MHz pixel rates

Installation

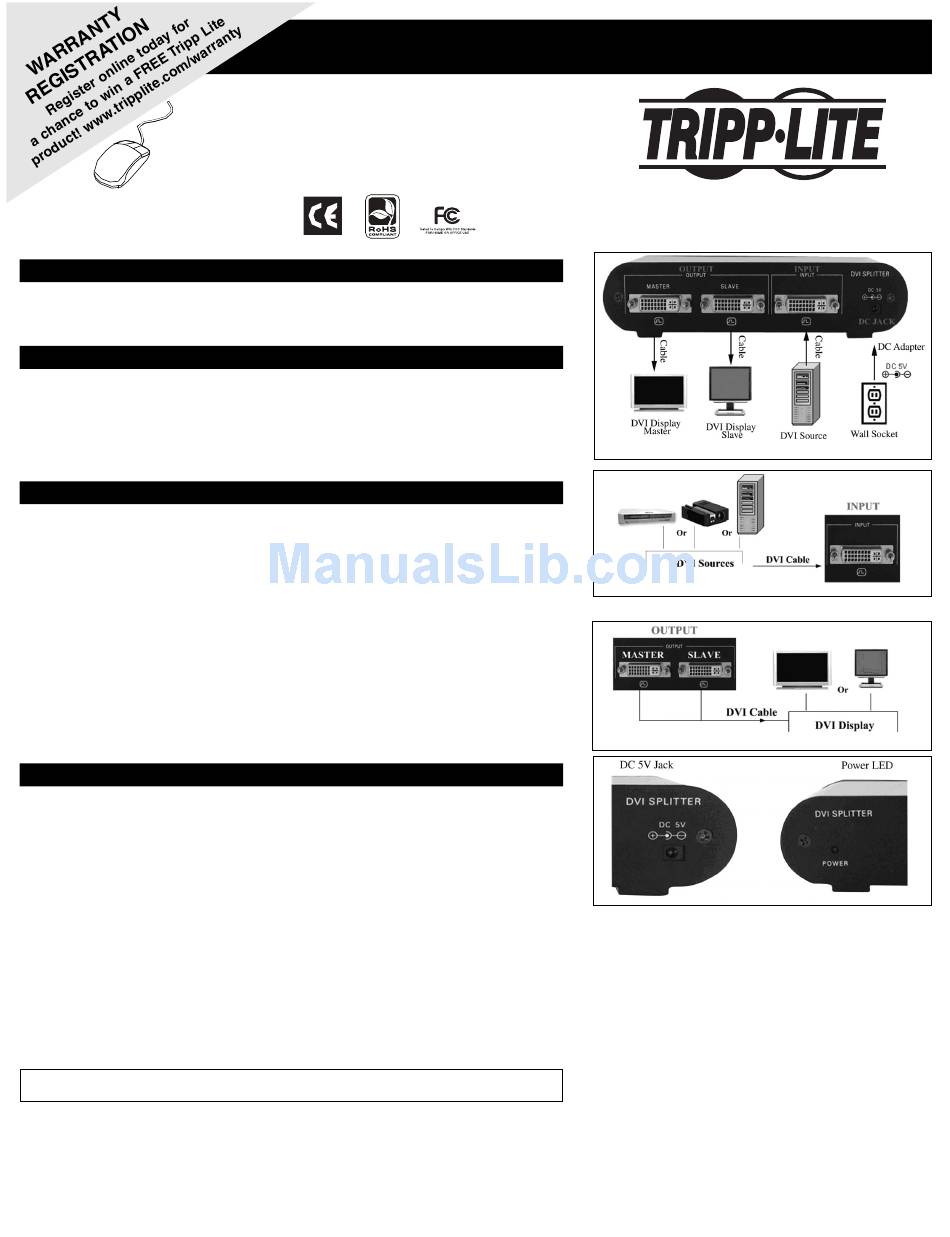

Figure 1: Location of Input/Output Connections
1. Connect the DVI source device to the splitter marked INPUT on the B116-002. (Figure 2)
Figure 2: Connection of DVI Sources
2. Connect the DVI cables between the DVI displays and the B116-002 splitters marked
OUTPUT MASTER and OUTPUT SLAVE. Make sure that the DVI source cables are
connected to the INPUT port, and that and the DVI display cables are connected the
OUTPUT ports. (Figure 3)
Figure 3: Connection of DVI Display
3. Connect the cord from the DC adapter to the DC 5V jack and plug it into a wall outlet. The
front POWER LED will illuminate.(Figure 4)
Figure 4: Connection of DC Adapter
4. Turn on the power to your DVI display before powering your DVI sources.

Troubleshooting

If you experience problems with your B116-002, switch, try the following remedies:
• Ensure that source and display cabling is working properly. Connect a DVI cable between
the source and the display to verify that the cable is functional. Repeat to test all cables.
• If DVI cables are functioning properly, use two cables to test the ports on the B116-002
splitter. Connect one cable between the DVI source and the INPUT port. Use the second
cable to plug between the OUTPUT MASTER and theDVI display. Using the same display,
continue testing by connecting the display to OUTPUT SLAVE. If all ports work, the
B116-002 is functioning correctly.
• If the unit is plugged in and the Power LED is not lit, verify that the power supply is
functioning. Use a voltmeter to measure the output of the DC adapter to verify that 5V is
present. If output is 5V, the DC adapter is functionaland the B116-002 switch has failed.
Note: The positive (+) is in the middle of the plug and the ground (-) is on the exterior of
the plug.
Warranty & Warranty Registration on Page 4
Note: Follow these instructions and operating procedures to ensure correct performance and to prevent damage to this unit or to its connected devices.
Owner's Manual
DVI Single Link
1-to-2 Splitter
Copyright © 2007 Tripp Lite. All rights reserved.
Tripp Lite World Headquarters
1111 West 35th Street, Chicago, IL 60609 USA • (773) 869-1234
www.tripplite.com
Figure 1.
Figure 2.
Figure 3.
Figure 4.
