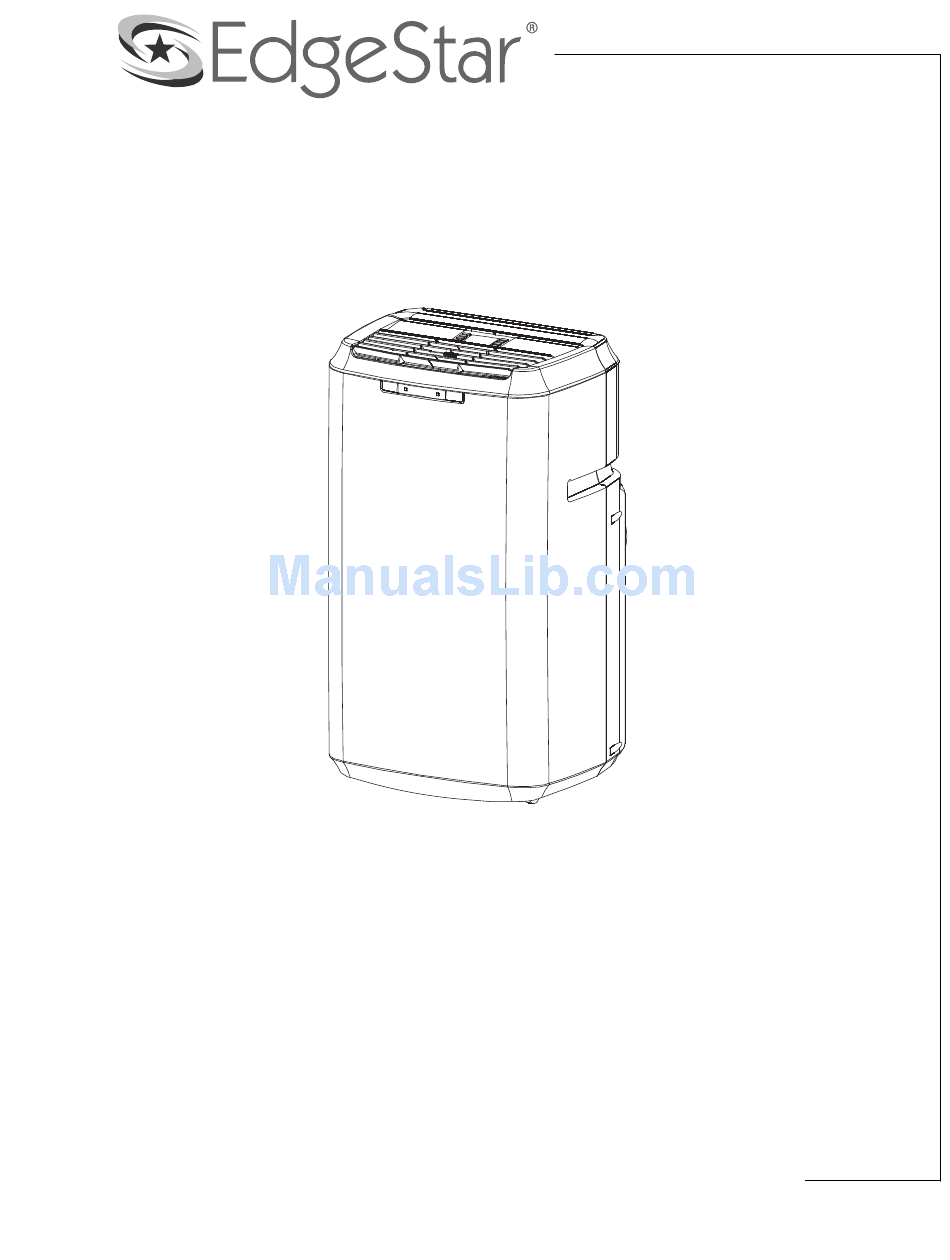

- Page 1 Portable Air Conditioner AP12005ECO Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
ENERGY SAVING GUIDE ................... 15 MAINTENANCE ....................16 ................... 16 LEANING THE UNIT ................. 16 LEANING THE PRE FILTER ................16 REPARATION FOR TORAGE TROUBLESHOOTING ..................17 ................. 18 ROUBLESHOOTING CONTINUED SPECIFICATIONS ....................19 EDGESTAR LIMITED WARRANTY ..............20 EdgeStar Portable Air Conditioner... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Parts Identification Front View Remote Control Power Button Indicator Light Button Handle Back View Pre-filter Air Intake Exhaust Outlet Air Intake Power Cord Caster Drain Port EdgeStar Portable Air Conditioner... -
Page 6: Installing The Carbon Filter
Installing the Carbon Filter Your portable air conditioner ships with a pre-filter and an activated carbon filter. The carbon filter will help remove contaminates and odors from the air. It is recommended you replace the carbon filter every two to three months, or as needed. It is necessary to clean the pre-filter periodically. -
Page 7: Window Kit Installation Instructions
Your window kit can be installed on a horizontal or vertical sliding window as shown in the following pictures: Follow the instructions on the next pages to install the window kit. EdgeStar Portable Air Conditioner... -
Page 8: Installing The Grated Adapter
Installing the grated adapter 1. Insert the round grated adapter through the back grooved side of the window kit plate with hole. 2. Secure the grated adapter by fastening the screws from flat side of the window kit plate to the holes on the grated adapter. -
Page 9: Installing The Window Plates
4. Lower the window to secure the window kit in place. You CAUTION: Secure your may need to use duct tape to better secure the window kit. window by using window locks. Please contact your EdgeStar retailer to purchase window locks. EdgeStar Portable Air Conditioner... -
Page 10: Attaching The Duct Connectors To The Exhaust Hose
Attaching the duct connectors to the exhaust hose 5. Attach the connectors to the hose: A. Extend the ends of the exhaust hose B. Thread the duct connector on by turning it clockwise until it stops. 6. Roll the unit towards the window kit. Leave a space that is at least 20 inches to the wall. -
Page 11: Connecting The Duct Connector To The Unit
8. Align the slots on the duct connector to the tabs on the grated adapter and snap in place. After you have installed the exhaust hose and window kit, you can plug in your portable air conditioner and start using it. EdgeStar Portable Air Conditioner... -
Page 12: Draining The Unit
Your portable air conditioner is designed to exhaust condensate Notes about the Exhaust water that is collected from the air. This water, in either gaseous or hose droplet form, will be expelled out the exhaust port of the unit. Please take this into account when deciding how to vent it. 1. -
Page 13: Remote Control Overview
Do not attempt to recharge batteries not designed to be recharged. All batteries should be replaced at the same time. Do not mix old and new batteries. Do not dispose of batteries in a fire as they may explode. EdgeStar Portable Air Conditioner... -
Page 14: Remote Control Lcd Indicators
Remote Control LCD Indicators Clock Indicator Transmitter Indicator Timed Hours Speed Indicators Timer Indicator Mode Indicators Fahrenheit and Temperature Setting Indicator Celsius Indicator Indicators Transmitter Appears when the Power or Timer button is signaling the unit. Fan Speed Shows the set fan speed between Automatic, High, Medium and Low. -
Page 15: Operating The Remote Control
Additionally, the ambient temperature in the room will probably rise by a few degrees if you do not use the exhaust hose. You will not be able to change the thermostat temperature while in Dehumidifying Mode. EdgeStar Portable Air Conditioner... -
Page 16: Fan Only Mode
Fan Only mode is used to circulate the air in your room. No temperature Fan Only Mode setting is needed. The front panel lights will be green. To operate the unit in Fan Only mode: 1) Make sure the power cord is plugged into a power outlet. 2) Press the Power button on the remote control. -
Page 17: Timer
The front panel has an emergency power switch. The power switch can be used when the unit needs to be shut off or turned on without the remote control. You can turn off the front panel lights by hitting the Lamp Off switch. EdgeStar Portable Air Conditioner... -
Page 18: Energy Saving Guide
Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner: Do not cover the air outlet (exhaust) while in use. Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air intake. -
Page 19: Maintenance
2) Power off the unit, and clean or change the filters. 3) Unplug and carefully wind the power cord. 4) Remove the exhaust hose and duct connectors and keep them in a safe place. EdgeStar Portable Air Conditioner... -
Page 20: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is Unit is not receiving Make sure the unit is not functioning at all power plugged in LCDI power cord is Press the Reset button tripped on the LCDI cord Insufficient power... -
Page 21: Troubleshooting Continued
The filter may be dusty Clean the filter and or blocked replace it if needed Dirty condenser coils Carefully vacuum the coils clean Obstructed air intake Remove anything or exhaust ports blocking the ports EdgeStar Portable Air Conditioner... -
Page 22: Specifications
Specifications Description of product Portable Air Conditioner Model AP12005ECO Voltage/Frequency 115V/60Hz Input Power 900W Current 9.5A Color Silver Coolant R410A Timer 24 Hour Dimensions 30.9” x 17.1” x 15” H x W x D Weight 67 lbs... -
Page 23: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 24 E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2009 Living Direct, Inc.
