EdgeStar AP16000G Service Manual

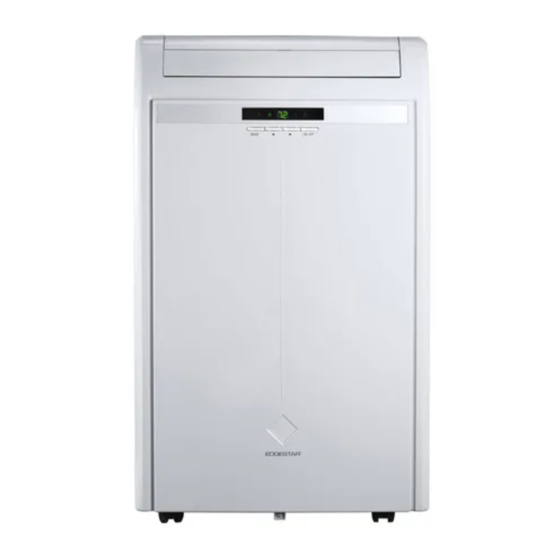

Large room 220v portable single hose air conditioner
Hide thumbs Also See for AP16000G:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Document Type: Service Manual
Version: V1.0 04132018

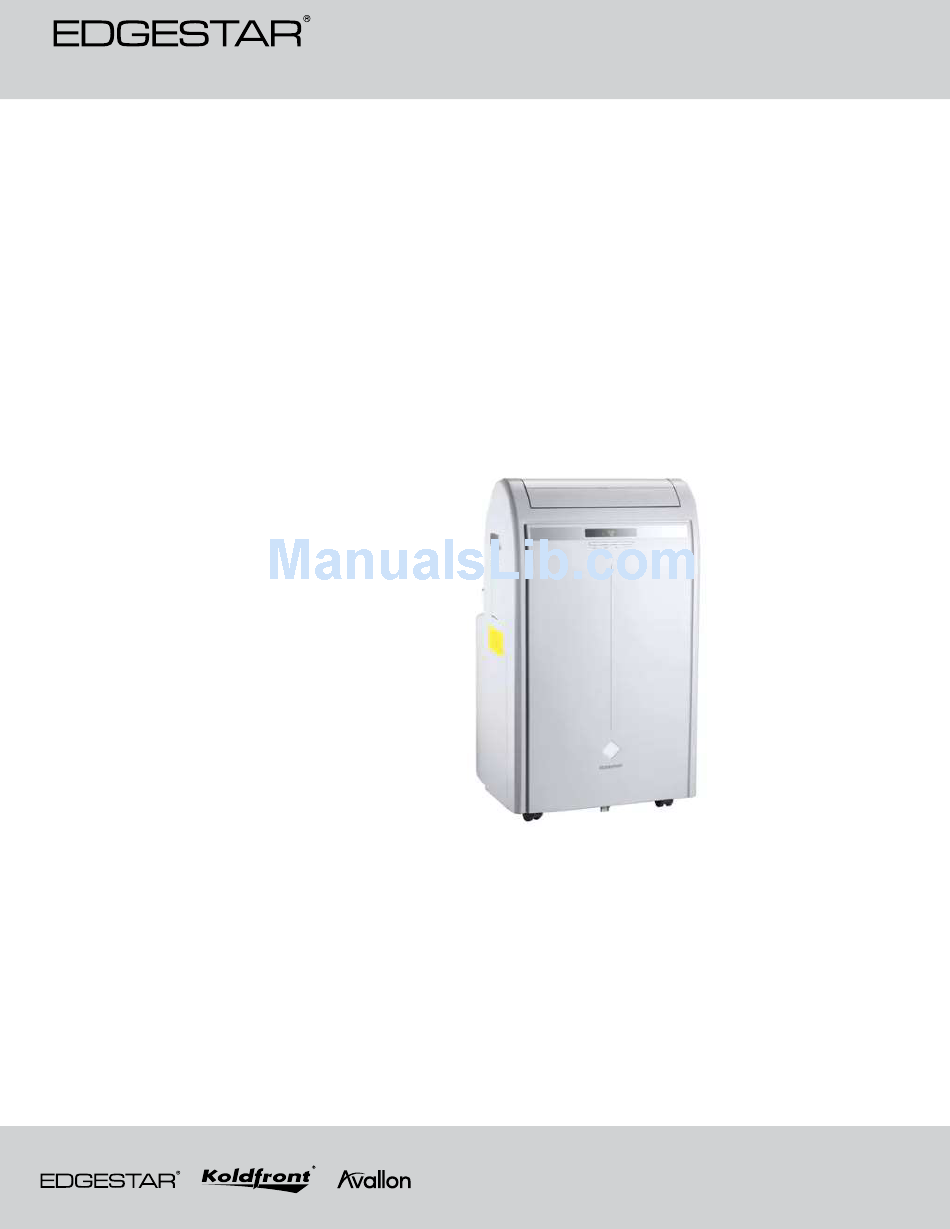

SERVICE MANUAL

Large Room 220V Portable Single Hose Air
Conditioner
MODEL:
AP16000G
CAUTION: READ ALL SAFETY PRECAUTIONS IN THIS
MANUAL BEFORE SERVICING THE UNIT
EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754
support.edgestar.com • service@edgestar.com • edgestar.com
*Warranty service should be performed by an authorized service representative only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP16000G and is the answer not in the manual?

Questions and answers

Related Manuals for EdgeStar AP16000G

Summary of Contents for EdgeStar AP16000G

  • Page 1: Service Manual

    Conditioner MODEL: AP16000G CAUTION: READ ALL SAFETY PRECAUTIONS IN THIS MANUAL BEFORE SERVICING THE UNIT EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754 support.edgestar.com • service@edgestar.com • edgestar.com *Warranty service should be performed by an authorized service representative only.

  • Page 2: Table Of Contents

    CONTENTS CONTENTS ............................1 SAFETY PRECAUTIONS ........................2 ELECTRICAL SAFETY ........................3 GENERAL SAFETY ......................... 4 1 SPECIFICATIONS ........................... 5 2 EXPLODED VIEW AND PARTS LIST ....................7 3 WIRING DIAGRAM ........................9 4 PCB DIAGRAM ..........................10 5 REFRIGERANT SYSTEM DIAGRAM ....................10 6 MODES AND OPERATING CONDITIONS ..................

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WARNING: This manual and the information contained herein is intended for use by certified technicians. The manufacturer or seller is not responsible for the interpretation or misuse of the information provided, nor does it assume any liability in connection with its use. The safeguards and warnings indicated in this manual do not cover all possible conditions which may occur.

  • Page 4: Electrical Safety

    Electrical Safety  Do not exceed the power outlet ratings.  It is recommended that the unit be connected to its own circuit.  A standard electrical supply that is properly grounded in accordance with the National Electrical Code and all state and local codes and ordinances is required. ...

  • Page 5: General Safety

    General Safety  Always unplug an appliance from the power supply before attempting any service. Disconnect the power cord by grasping the plug, not the cord.  Do not allow children or pets to play on or in the appliance. ...

  • Page 6: Specifications

    1 Specifications Product Code AP16000G Rated Voltage 208/230 Rated Frequency Power Phases Supply Cooling Capacity 4836 Heating Capacity Cooling Power Input 2100 Heating Power Input Cooling Power Current 9.70 Heating Power Current Rated Input 2360 Rated Current 12.88 Input of Heater...
  • Page 7 Refrigerant R410A Refrigerant Charge 29.6 Compressor Model QXA-C165RC030 Compressor Oil RB68EP/FVC68D Compressor Type Rotary L.R.A. Compressor RLA Compressor Power Input 1690 Overload Protector build in Fan Type Centrifugal Compress Diameter Length(DXL) inch 8 9/16X4 5/16 Fan Motor Speed(H/ML) r/min 810/710/610 Output of Fan Motor Fan Motor RLA 0.28...

  • Page 8: Exploded View And Parts List

    2 Exploded View and Parts List...
  • Page 9 Part Name Part Name Decorative Board Sub-Assembly Latch Decorative Board Condenser Assembly Decorative Block Motor Holder (Lower) Decorative Strip Fan Motor Front Panel Centrifugal Fan Display Board Diversion Circle (Lower) Button Discharge Tube Sub-Assembly Fan Motor Capillary Assembly Motor Holder (Upper) Discharge Charge Valve Sub-Assembly Electric Box Assembly Capillary Sub-Assembly...

  • Page 10: Wiring Diagram

    3 Wiring Diagram...

  • Page 11: Pcb Diagram

    4 PCB Diagram No. Item Neutral wire connectors Varistor Fuse Compressor relay Buzzer Display board connectors Water level switch connector Condenser temperature sensor connector Room/ambient temperature sensor connector Frost sensor connector NA for this model Louver/Stepping motor connector Flinger/Draw water motor connector Condenser fan connector NA for this model Evaporator fan connector...

  • Page 12: Modes And Operating Conditions

    6 Modes and Operating Conditions 6.1 Temperature Parameters Indoor preset temperature (Tpreset) Indoor ambient temperature (Tamb.) 6.2 Cooling Mode When Tamb ≥ Tpreset +1ºC(2ºF) the unit operates in cooling mode. The compressor runs and the indoor fan operates at the set fan speed. When Tamb ≤...

  • Page 13: Auto Mode

    6.5 Auto Mode In auto mode standard cooling Tpreset=77ºF(25ºC); standard heating Tpreset=68ºF(20ºC)  When Tamb > 79ºF(26ºC) the unit runs in auto cooling mode. When Tamb < 68ºF(20ºC) the unit runs in auto fan mode. If the unit is operating in fan mode and 68ºF(20ºC) ≥ Tambient ≥ 73ºF(23ºC), the unit will stay in fan mode.

  • Page 14: Troubleshooting

    7 Troubleshooting 7.1 Troubleshooting Guide Problem Possible Cause Solution Wall plug is disconnected. Insert plug firmly into proper wall outlet. House fuse blown or circuit breaker Replace fuse with time delay type or reset circuit tripped. breaker. Press the RESET button on the power cord. If power Power cord is tripped.

  • Page 15: Error Codes

    When unit is turned on or off the outer Normal sound. Outer shell is contracting or expanding shell “pops” or “clicks.” and will stop after a few minutes. When unit is turned on or off “boiling” or Normal sound. The cause is refrigerant flowing inside the “running water”...
  • Page 16 Restriction in refrigeration system. Locate and clear restriction, then recharge refrigerant. Water flinger motor defective or fly wheel obstructed. Clear obstructions, repair alignment of motor or replace if defective. Water reservoir full. Drain water from unit. Level switch stuck or being interfered with. Remove any obstructions from water tray and/or unstick switch.

  • Page 17: Unit Disassembly

    8 Unit Disassembly...
  • Page 23 DATE REVISION NOTES 04/13/2018 INITIAL DOCUMENT EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754 support.edgestar.com • service@edgestar.com • edgestar.com *Warranty service should be performed by an authorized service representative only.
