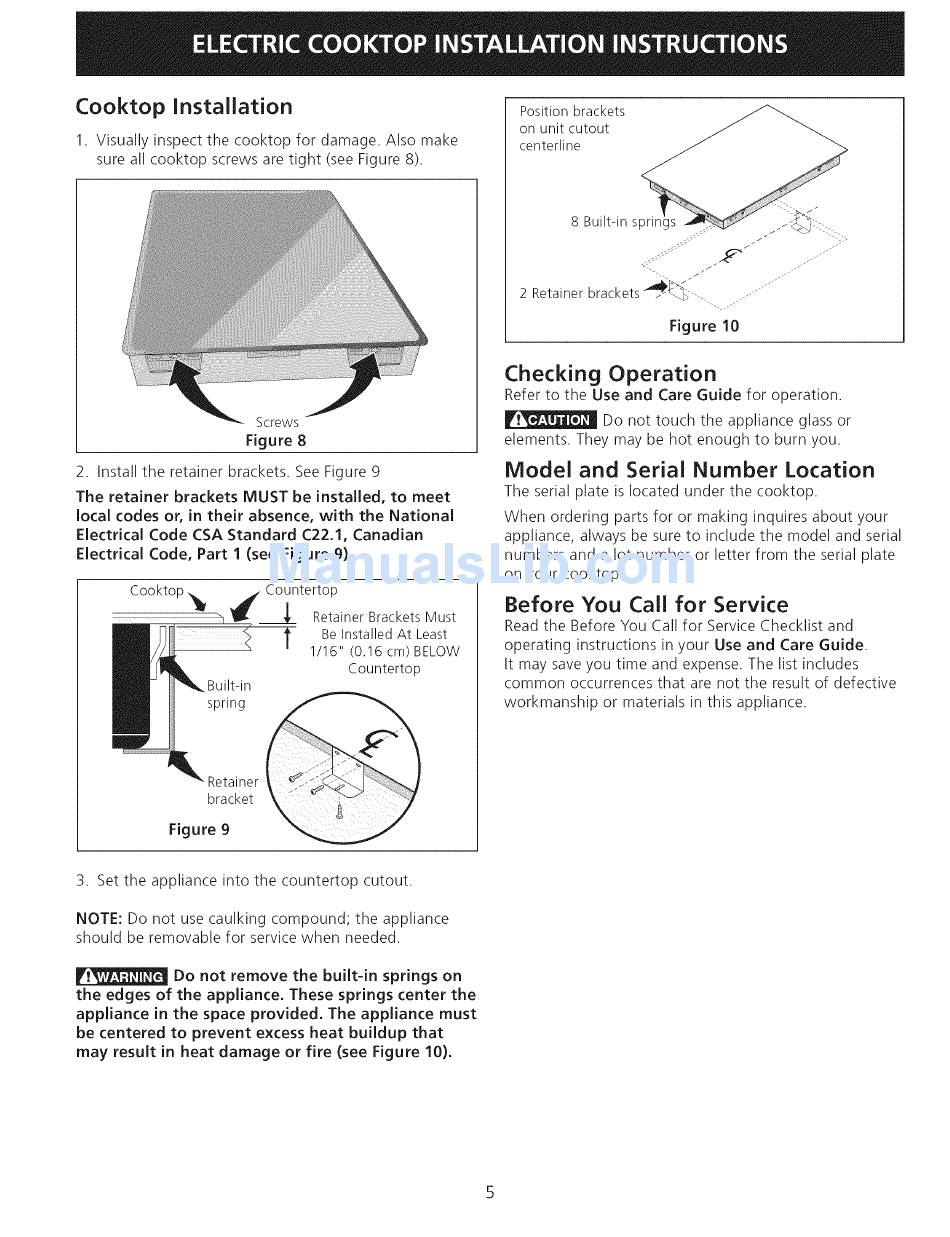

Cooktop
Installation
1. Visually inspect the cooktop for damage. Also make
sure all cooktop screws are tight (see Figure 8).
Screws
Figure 8
2. Install the retainer brackets. See Figure 9
The retainer
brackets
MUST be installed,
to meet
local codes or, in their absence, with the National
Electrical
Code CSA Standard
C22.1, Canadian
Electrical
Code, Part I (see Figure 9).
Cooktop,_
Built-in
spring
Countertop
Retainer Brackets Must
t
Be Installed At Least
1/16" (0.16 cm) BELOW
Countertop
Retainer
bracket
Figure 9
Position brackets
on unit cutout
centerline
Figure 10
Checking
Operation
Refer to the Use and Care Guide for operation
Do not touch the appliance glass or
elements. They may be hot enough to burn you.
Model
and Serial Number
Location
The serial plate is located under the cooktop.
When ordering parts for or making inquires about your
appliance, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate
on your cooktop.
Before You Call for Service
Read the Before You Call for Service Checklist and
operating instructions in your Use and Care Guide.
It may save you time and expense. The list includes
common occurrences that are not the result of defective
workmanship or materials in this appliance.
3. Set the appliance into the countertop cutout.
NOTE: Do not use caulking compound; the appliance
should be removable for service when needed.
Do not remove the built-in
springs on
the edges of the appliance.
These springs center the
appliance
in the space provided.
The appliance
must
be centered
to prevent
excess heat buildup
that
may result in heat damage
or fire (see Figure 10).
