Device Design

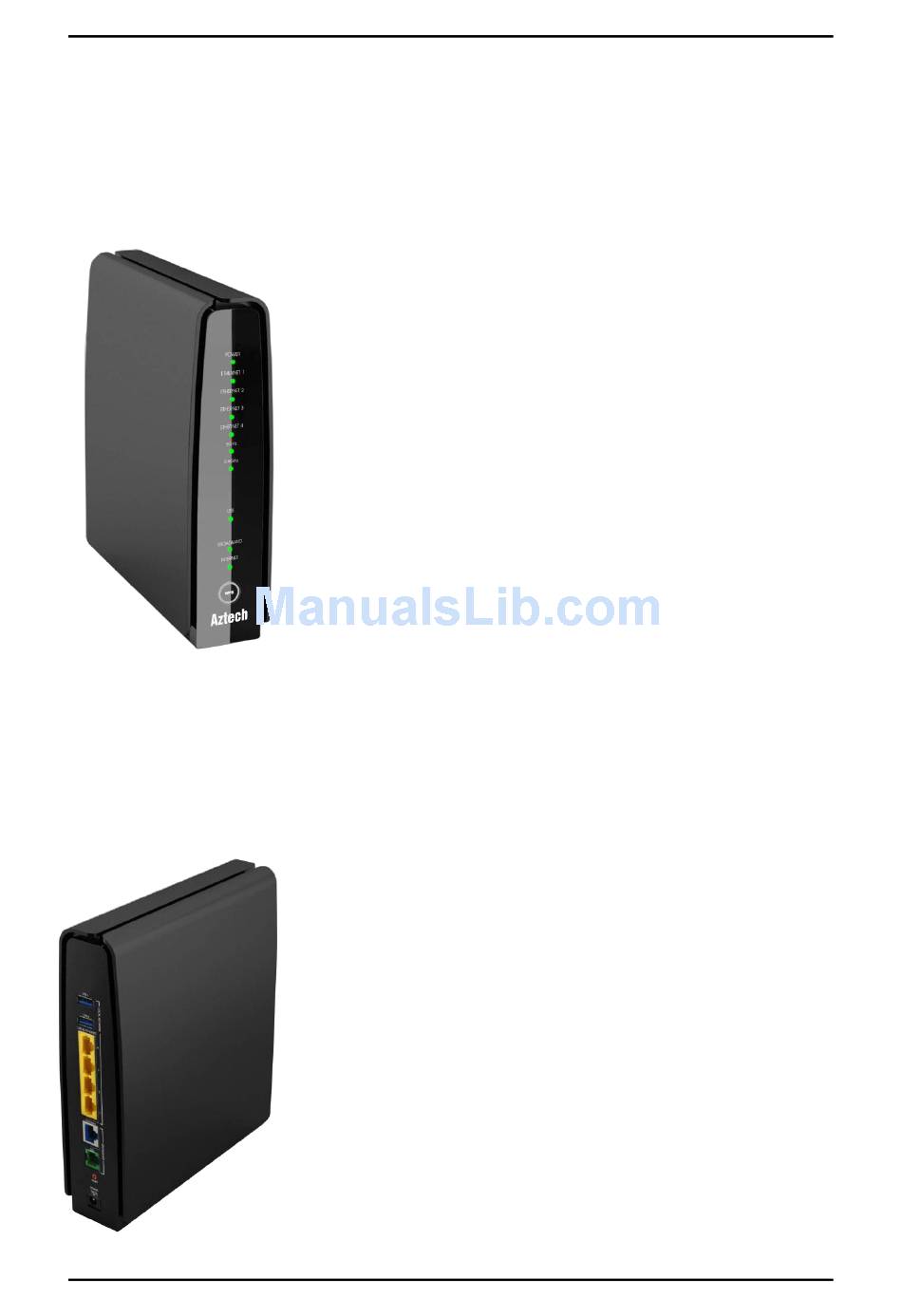

Front Panel

Back Panel

Page 6 of 52
LED STATUS
POWER Off
Green (Steady)
ETH LAN 1-4 Off
Green (Steady)
Green (Blinking)
2.4GHz/5.0GHz Off
Green (Steady)
Green (Blinking)
USB Off
On
BROADBAND Green (Blinking)
Green (Steady)
OFF
INTERNET Off
Green (Steady)
Green (Blinking)
Red (Steady)
WPS Off
Green (Blinking)
PORT/BUTTON DESCRIPTION
USB 1 & 2 For USB devices such as printers and USB external hard drives
ETHERNET 1 - 4 Connecting computers and other Ethernet devices
ETHERNET WAN For WAN connection through an Ethernet cable
DSL / LINE Connecting the modem to an ADSL line
RESET To reset the router to the factory default configuration
POWER Adapter input
DESCRIPTION
No power is supplied to the device
Connected to a power supply
There is no device connected to the
corresponding port
There is a device connected to the
corresponding port
A device connected to the corresponding
port is actively transmitting/receiving data
Corresponding wireless interface is disabled
Corresponding wireless Interface is enabled
Corresponding wireless interface is actively
transmitting/receiving data
There is no USB connected to the
corresponding USB port
There is a USB connected to the
corresponding USB port
Device is attempting to detect and connect
to a DSL network
There is a device connected
corresponding port
No device is connected to the corresponding
port
Modem turned off or unavailable
Device has successfully established a
connection.
Device is actively transmitting/receiving data
Device failed to establish a connection
WPS disabled/inactive
WPS authentication in-progress
to the
