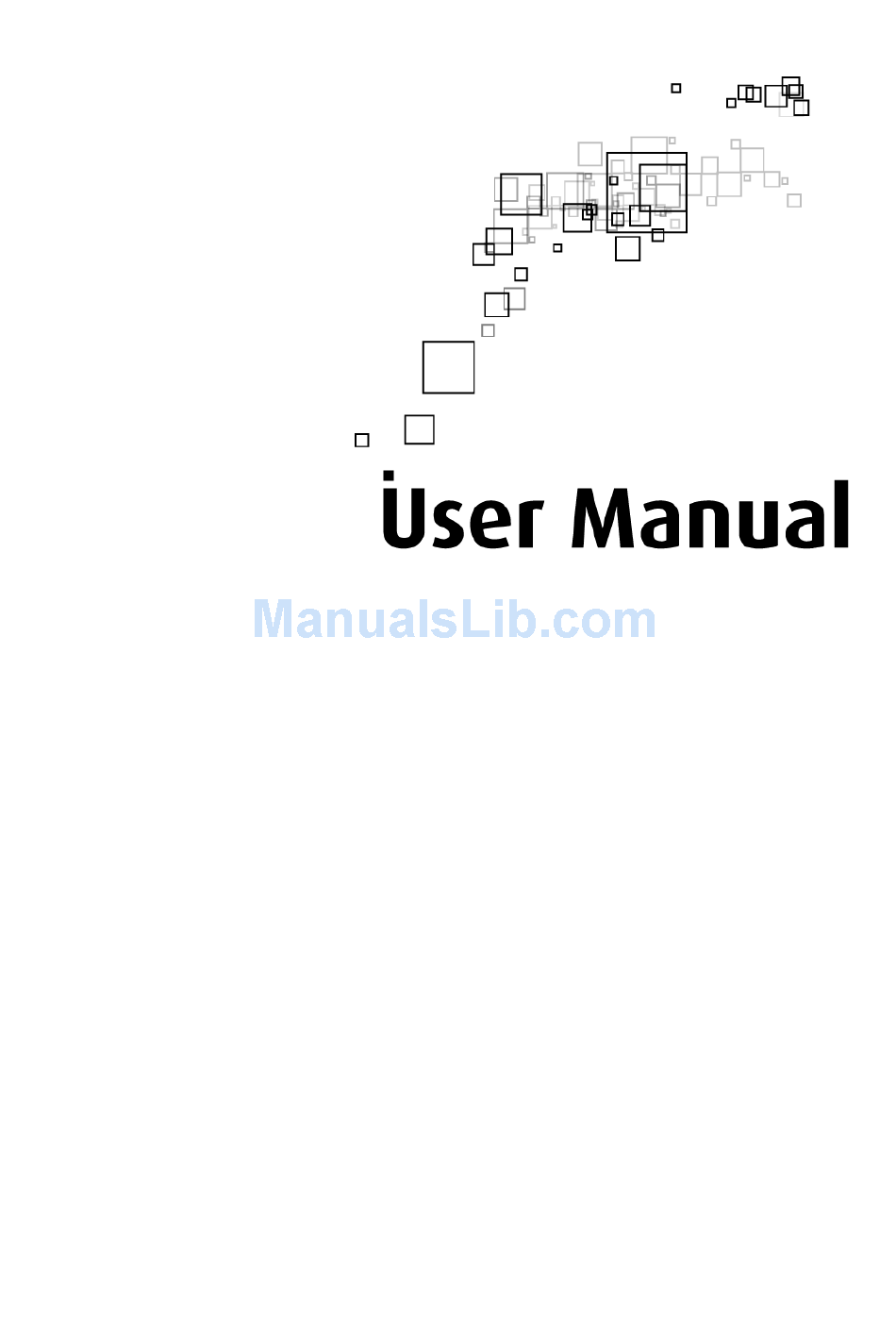

  • Page 1 GR7000 4-Port Wireless-N Gigabit Router...

  • Page 2: Table Of Contents

    User Manual Table of Contents About the Device......................4 Minimum System Requirements ..............5 Package Contents ..................5 Device Overview..................6 Front Panel ........................6 Top Panel........................7 Back Panel.........................7 Hardware Setup Diagram ................... 8 Setup Your Device..................10 Changing the Wireless Settings ..............13 Changing the Wireless Security Settings ...........
  • Page 3 User Manual Network Tools ......................35 Accessing Network Tools ................35 What’s on Network Tools................35 System Log......................36 Statistics ........................37 Diagnostic Tools ......................38 Network Tools ......................39 USB Storage Setup ..................40 USB Printer Setup ..................41 Page 3 of 47...

  • Page 4: About The Device

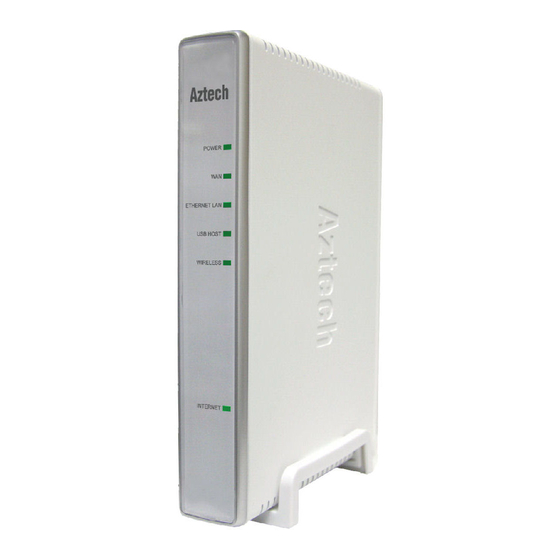

    WAN port for fiber ONT, and USB 2.0 Host. Targeted at providing good quality and high definition IPTV service to end users, Aztech GR7000 4 Port Wireless-N Gigabit Router is an intelligent 4-Port 10/100/1000 AutoMDI/MDIx managed switch. The 4 10/100/1000...

  • Page 5: Minimum System Requirements

    An active Internet account Package Contents Package contents are listed below. For any missing items, please contact your dealer immediately. Product contents may vary for different models. GR7000 Ethernet cable 12V 1.5A DC Power Adapter Easy Start Guide Resource CD...

  • Page 6: Device Overview

    User Manual Device Overview Front Panel LABEL STATE DESCRIPTION On – Solid Green Device is powered ON POWER On – Solid Red Device failure Device is powered OFF On – Solid Green WAN port is connected On – Blinking Green Indicates WAN activity WAN port is not connected On –...

  • Page 7: Top Panel

    User Manual Top Panel Back Panel LABEL DESCRIPTION Press the Reset button for 5 seconds to restore the device to RESET default factory settings DC IN Connect to a 12V DC Power Adapter USB PORT 1 Connect to a USB storage device or USB printer USB PORT 2 Connect to a USB storage device or USB printer ETHERNET LAN 1-4...

  • Page 8: Hardware Setup Diagram

    User Manual Hardware Setup Diagram Before moving ahead to setup your network, it is a good idea to draw out a network diagram to help identify your network devices and plan out how to connect these devices. The illustration below is an example of a network diagram.
  • Page 9 User Manual Each port in the router can be used for different connections. For example: 1. WAN Port – Connect to DSL/Cable modem or ONT for FTTH connection 2. Ethernet Port 1 – Wired PC 3. Ethernet Port 3 – Wired PC 4.

  • Page 10: Setup Your Device

    User Manual Setup Your Device You can use the Web Interface to setup your router for the first time. To Setup the router via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on the Login button 4.
  • Page 11 User Manual 5. Select the Time Zone according to your geographical location and then choose your preferred timeserver from the respective drop down list. 6. Select the Internet connection type from the drop-down list *Select DHCP to obtain an IP address from your broadband modem automatically.
  • Page 12 User Manual 8. Each GR7000 is pre-assigned with a unique Wireless Network Name or SSID. You may change this SSID to your own preference. 9. Make sure to check the WPA Enabled check box to secure your Wireless Network from unauthorized access.

  • Page 13: Changing The Wireless Settings

    User Manual Changing the Wireless Settings Modify the default Wireless Settings to suit your own preference. To change the Wireless settings via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 14: Changing The Wireless Security Settings

    User Manual Changing the Wireless Security Settings Modify the default Wireless Security Settings to suit your own preference. To change the Wireless security settings via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 15: Wps

    User Manual WPS or Wifi Protected Setup makes it easy for wireless clients/devices to connect to the wireless router. Simply press the WPS button on the router and press the WPS button on the wireless client/device within 2 minutes, and the wireless security authentication will be done automatically. Page 15 of 47...

  • Page 16: Viewing The Home Page

    User Manual Viewing the Home Page The Home Page will tell you information about your router. To view the Home Page via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.
  • Page 17 User Manual 7. Local Network will display information about host computers currently connected to the router. 8. Storage will display any USB storage device connected to the USB port of the router. 9. Printer will display any USB printer device connected to the USB port of the router.

  • Page 18: Configuring The Lan Settings

    User Manual Configuring the LAN settings Setup the LAN configuration of your router from this page. To configure the LAN settings via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on login 4.

  • Page 19: Configuring Advanced Wan Settings

    User Manual Configuring Advanced WAN settings Setup the Advanced WAN configuration of your router from this page. To configure the Advanced WAN settings via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.
  • Page 20 User Manual *Select PPPoE if your ISP requires a PPP username and password for authentication. (For most ADSL modem users) *Select Static if your ISP provides all the IP information to you. You need to specify the IP address, Subnet mask, Default Gateway, Primary DNS and Secondary DNS (optional) on each field to configure your connection to the Internet.

  • Page 21: Configuring Routing Settings

    User Manual Configuring Routing settings If your LAN consists of multiple subnets and you want to manually define the data transmitting paths, Static Route is to be used. To configure the routing settings via the Web GUI: 1. Open your browser 2.
  • Page 22 User Manual The key settings for adding a new Static Route are explained: Destination IP Address Enter the network address to which the data Destination IP Address Destination IP Address Destination IP Address packets are to be sent. Network Mask Enter the subnet mask for this destination. Network Mask Network Mask Network Mask...

  • Page 23: Configuring Port Forwarding

    User Manual Configuring Port Forwarding Setup port-forwarding option to direct incoming traffic from the Internet to a specific computer in your local network. As an example, to setup a web server on a computer using 192.168.2.100 as its IP Address, select HTTP as Service and enter 192.168.2.100 as the Device IP Address.

  • Page 24: Configuring Filtering

    User Manual Configuring Filtering Setup filtering on your router from this page. To configure filtering via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 25: Configuring Dynamic Dns

    User Manual Configuring Dynamic DNS The Router offers a Dynamic Domain Name System (DDNS) feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP Address. It is useful when you are hosting your own website, FTP server, or other server behind the Router.

  • Page 26: Configuring Dmz

    User Manual 6. Click the Apply button to commit the changes Configuring DMZ Setup DMZ on your router from this page. To configure DMZ via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 27: Configuring Access Control

    User Manual Configuring Access Control Setup Access Control on your router from this page. To configure access control via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 28: Configuring Parental Control

    User Manual Configuring Parental Control Setup Parental Control on your router from this page. To configure access control via the Web GUI: 1. Open your browser 2. Type 192.168.2.1 on the address bar 3. Input admin for both username and password fields and click on Login 4.

  • Page 29: System Management

    User Manual System Management The System Management menu is used for router settings administration. Accessing System Management To access the Web User Interface: 1. Open your browser. 2. Type-in 192.168.2.1 on the address bar and then press Enter. What’s on System Management System Management includes the following options: Information Settings...

  • Page 30: Information

    User Manual Information This page shows the router information. Below is the list of information shown in this menu. Firmware Version – Shows the current firmware version of the Router Build Date – Shows the firmware release date Serial Number – Shows the serial number of the Router LAN MAC Address –...

  • Page 31: Settings

    User Manual Settings Settings menu allows you to backup, restore, and factory reset the Router settings. Backup – Backup the current router settings to a file on your PC Restore – Restore a backup configuration file to the router Factory Default – Reset the router configuration to factory default Page 31 of 47...

  • Page 32: Firmware

    User Manual Firmware Firmware menu allows you to backup, restore, and factory reset the Router settings. Firmware Information – Shows the current firmware’s version and build date Firmware Upgrade – Load a new firmware upgrade file to the router Page 32 of 47...

  • Page 33: Reboot

    User Manual Reboot Reboot allows you to reboot the Router for new settings to take effect. Reboot – Allows you to reboot the router Page 33 of 47...

  • Page 34: Password

    User Manual Password Password menu allows you to change the Router’s password to access the Graphical User Interface (GUI). Password – Allows you to change the router’s password Page 34 of 47...

  • Page 35: Network Tools

    User Manual Network Tools The Network Tools menu is used for troubleshooting the router. Accessing Network Tools To access the Web User Interface: 1. Open your browser. 2. Type-in 192.168.2.1 on the address bar and then press Enter. What’s on Network Tools System Management includes the following options: System Log Statistics...

  • Page 36: System Log

    User Manual System Log System Log allows you to monitor the Router’s activities. The system log can show you if there is any error that occurred on your router. Filter Level – Controls how much information is captured by the System log Page 36 of 47...

  • Page 37: Statistics

    User Manual Statistics This page displays statistics for the Router’s different interfaces such as LAN, WAN and wireless. The statistics page can show you how much information has been transferred and received on each interface and whether there are any errors in communication. LAN Statistics –...

  • Page 38: Diagnostic Tools

    User Manual Diagnostic Tools Diagnostic tools will automatically check the Router’s different interfaces such as LAN, WAN and wireless. It will also check the Router’s connectivity to the Internet. WAN Status – Shows the current status of the WAN interface LAN Status –...

  • Page 39: Network Tools

    User Manual Network Tools Network tools provide utilities such as Ping and Trace Route to check the Router’s connectivity to the LAN and Internet. Ping – Sends a ping message to a specified IP address or URL to check for connectivity Traceroute –...

  • Page 40: Usb Storage Setup

    User Manual USB Storage Setup You may connect a USB storage device to the router’s USB port to share the drive to all the host computers connected to the router. To configure USB storage via the Web GUI: 1. Open your browser 2.

  • Page 41: Usb Printer Setup

    User Manual USB Printer Setup You may connect a USB printer to the router’s USB port to share the printer to all the host computers connected to the router. To configure USB printer via the Web GUI: 1. Open your browser 2.
  • Page 42 User Manual 12. Click on Next 13. Click to select Local printer attached to this computer. Make sure that Automatically detect and install my Plug and Play printer NOT checked 14. Click on Next Page 42 of 47...
  • Page 43 User Manual 15. Click to select Create a new port 16. Choose Standard TCP/IP Port from the drop down menu 17. Click on Next 18. Type the router’s IP address. Port name should be automatically filled Page 43 of 47...
  • Page 44 User Manual 19. Click on Next 20. Click to select Custom Page 44 of 47...
  • Page 45 User Manual 21. Click on Next 22. Click Finish Page 45 of 47...

  • Page 46: Safety Precautions

    User Manual Safety Precautions Do not open, service, or change any component. Only qualified technical specialists are allowed to service the equipment. Observe safety precautions to avoid electric shock Check voltage before connecting to the power supply. Connecting to the wrong voltage will damage the equipment. Page 46 of 47...
  • Page 47 User Manual © Copyright 2010 All rights reserved. No part of this document may be reproduced, republished, or retransmitted in any form or by any means whatsoever, whether electronically or mechanically, including, but not limited to, by way of photocopying, recording, information recording, or through retrieval systems without the express written permission.
