User Manual

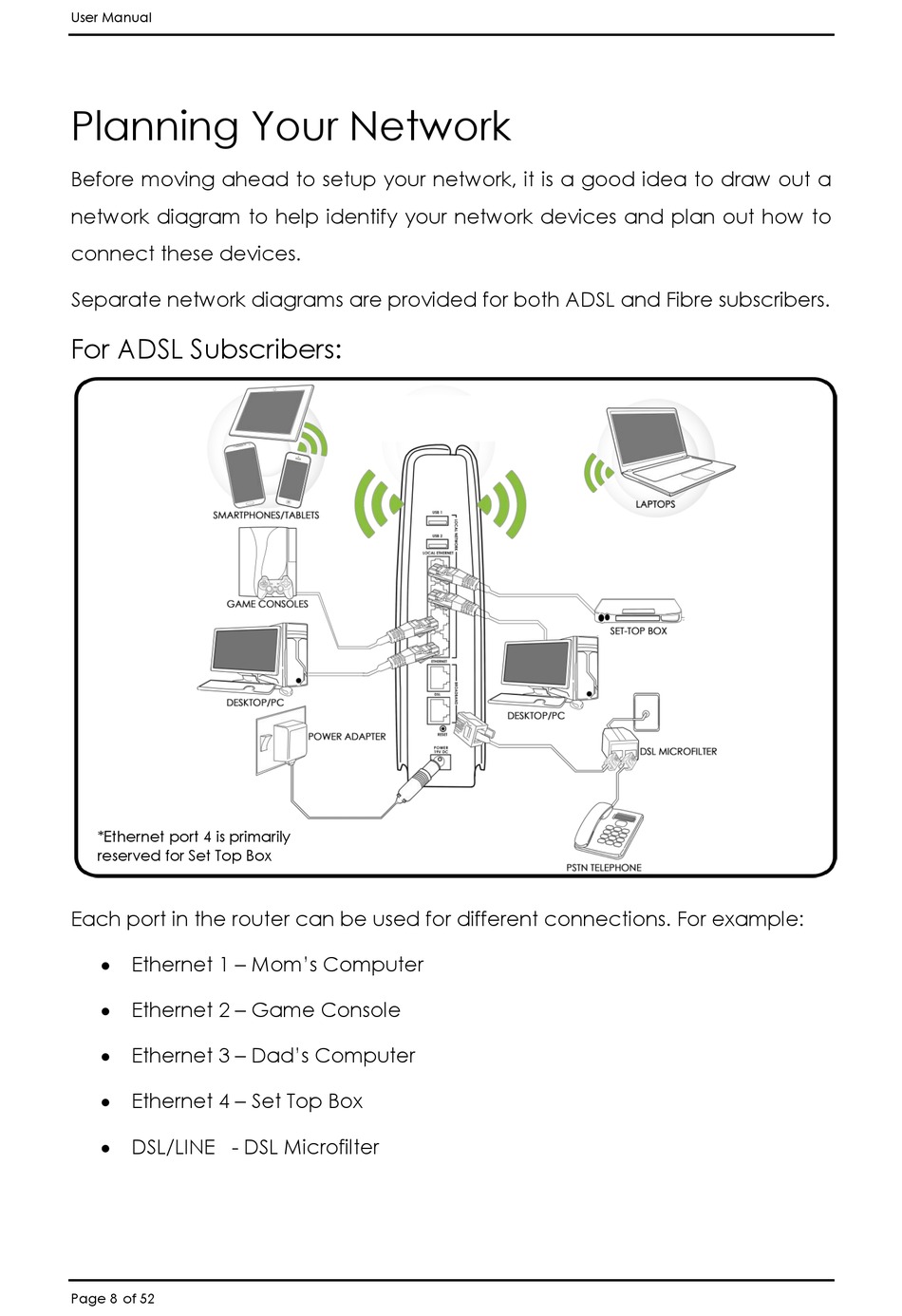

Planning Your Network
Before moving ahead to setup your network, it is a good idea to draw out a
network diagram to help identify your network devices and plan out how to
connect these devices.
Separate network diagrams are provided for both ADSL and Fibre subscribers.
For ADSL Subscribers:
*Ethernet port 4 is primarily
reserved for Set Top Box
Each port in the router can be used for different connections. For example:
 Ethernet 1 – Mom's Computer
 Ethernet 2 – Game Console
 Ethernet 3 – Dad's Computer
 Ethernet 4 – Set Top Box
 DSL/LINE - DSL Microfilter
Page 8 of 52
