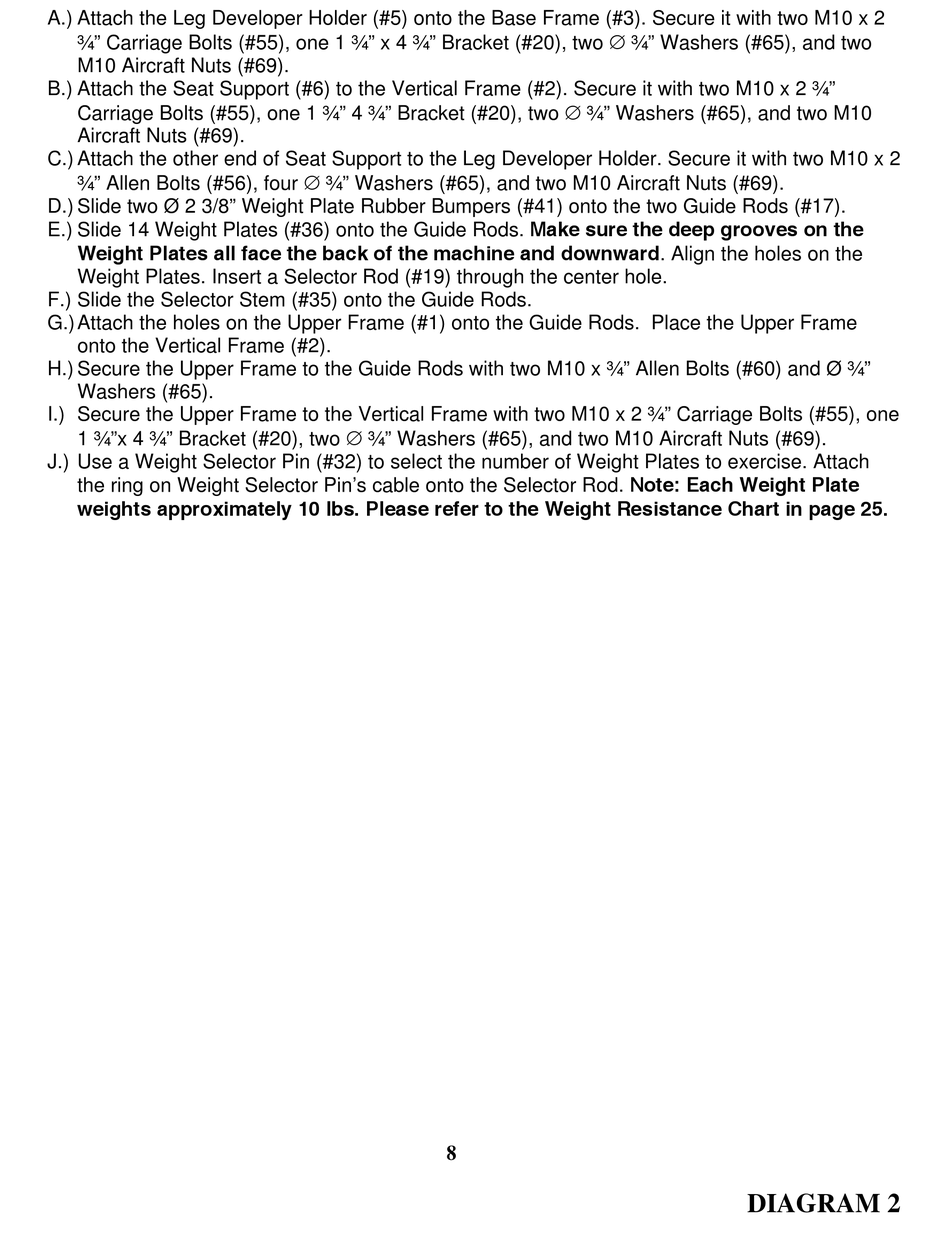

A.) Attach the Leg Developer Holder (#5) onto the Base Frame (#3). Secure it with two M10 x 2
¾" Carriage Bolts (#55), one 1 ¾" x 4 ¾" Bracket (#20), two  ¾" Washers (#65), and two
M10 Aircraft Nuts (#69).
B.) Attach the Seat Support (#6) to the Vertical Frame (#2). Secure it with two M10 x 2 ¾"
Carriage Bolts (#55), one 1 ¾" 4 ¾" Bracket (#20), two  ¾" Washers (#65), and two M10
Aircraft Nuts (#69).
C.) Attach the other end of Seat Support to the Leg Developer Holder. Secure it with two M10 x 2
¾" Allen Bolts (#56), four  ¾" Washers (#65), and two M10 Aircraft Nuts (#69).
D.) Slide two Ø 2 3/8" Weight Plate Rubber Bumpers (#41) onto the two Guide Rods (#17).
E.) Slide 14 Weight Plates (#36) onto the Guide Rods. Make sure the deep grooves on the
Weight Plates all face the back of the machine and downward. Align the holes on the
Weight Plates. Insert a Selector Rod (#19) through the center hole.
F.) Slide the Selector Stem (#35) onto the Guide Rods.
G.) Attach the holes on the Upper Frame (#1) onto the Guide Rods. Place the Upper Frame
onto the Vertical Frame (#2).
H.) Secure the Upper Frame to the Guide Rods with two M10 x ¾" Allen Bolts (#60) and Ø ¾"
Washers (#65).
I.) Secure the Upper Frame to the Vertical Frame with two M10 x 2 ¾" Carriage Bolts (#55), one
1 ¾"x 4 ¾" Bracket (#20), two  ¾" Washers (#65), and two M10 Aircraft Nuts (#69).
J.) Use a Weight Selector Pin (#32) to select the number of Weight Plates to exercise. Attach
the ring on Weight Selector Pin's cable onto the Selector Rod. Note: Each Weight Plate
weights approximately 10 lbs. Please refer to the Weight Resistance Chart in page 25.
8
DIAGRAM 2
