Impex MWM-981 Owner's Manual page 20

STEP 9 (See Diagram 9)
A.) Attach Lat Bar (#14) to the Upper Cable (#32) with two Hooks (#53) and one 15-link Chain
(#54) when doing Lat Pull exercises.
B.) Attach Shiver Bar (#15) to the Lower Cable (#33) use the two Hooks (#53) and the 15-link
Chain (#33) from Lat Bar when doing Arm Curl exercises
C.) Replace Shiver Bar with the Ankle Strap (#52) or Single Handle (#78) to the Lower Cable for
various exercises.
D.) Insert a 2" Lock Pin (#46) through the hole on Guide Rod and lock with a Combination Lock
(#47) to prevent any un-authorized usage of the machine.
E.) Unlock the Lock and attach it to Selector Rod before using the machine.
19

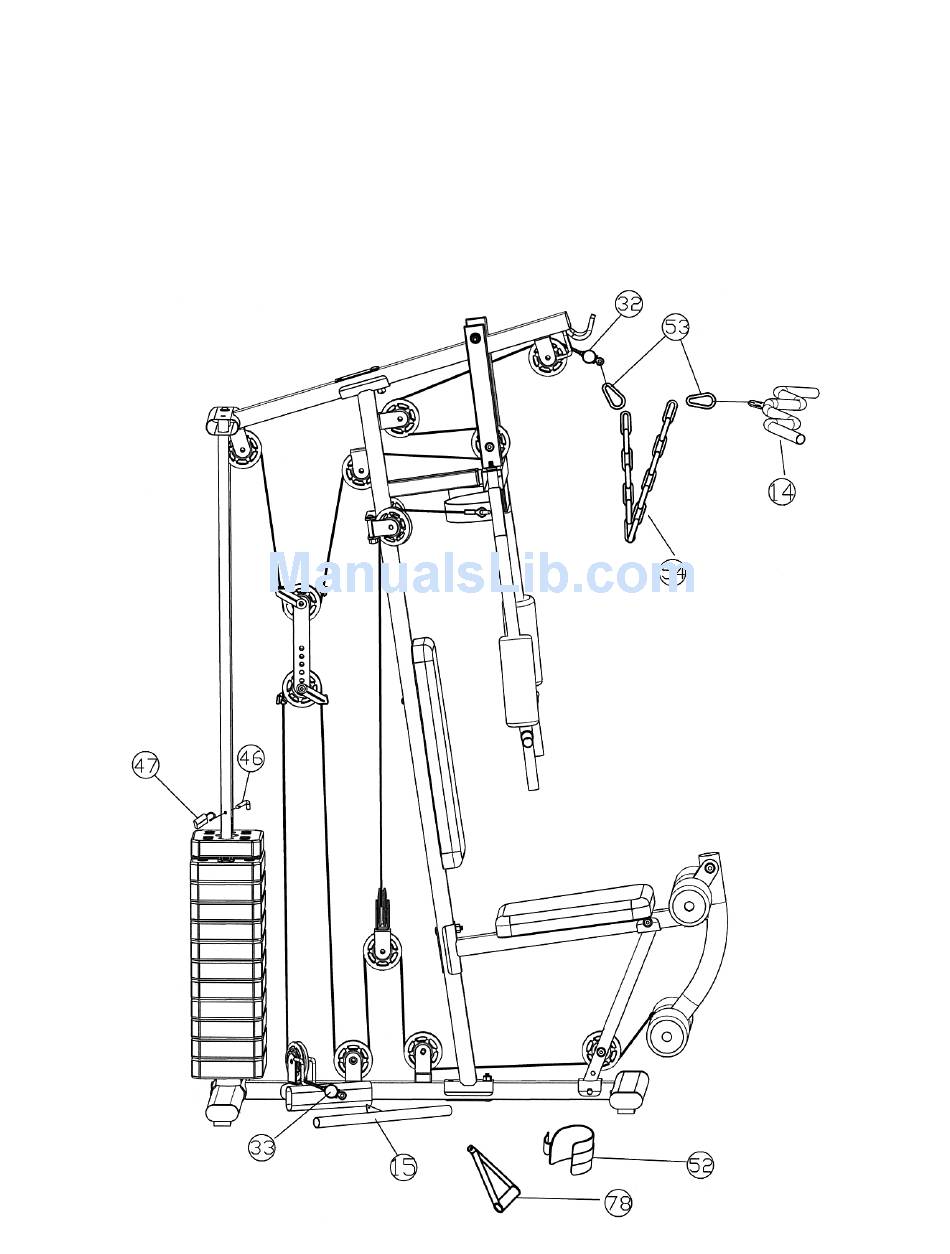

DIAGRAM 9
