Impex MWM-981 Owner's Manual page 17

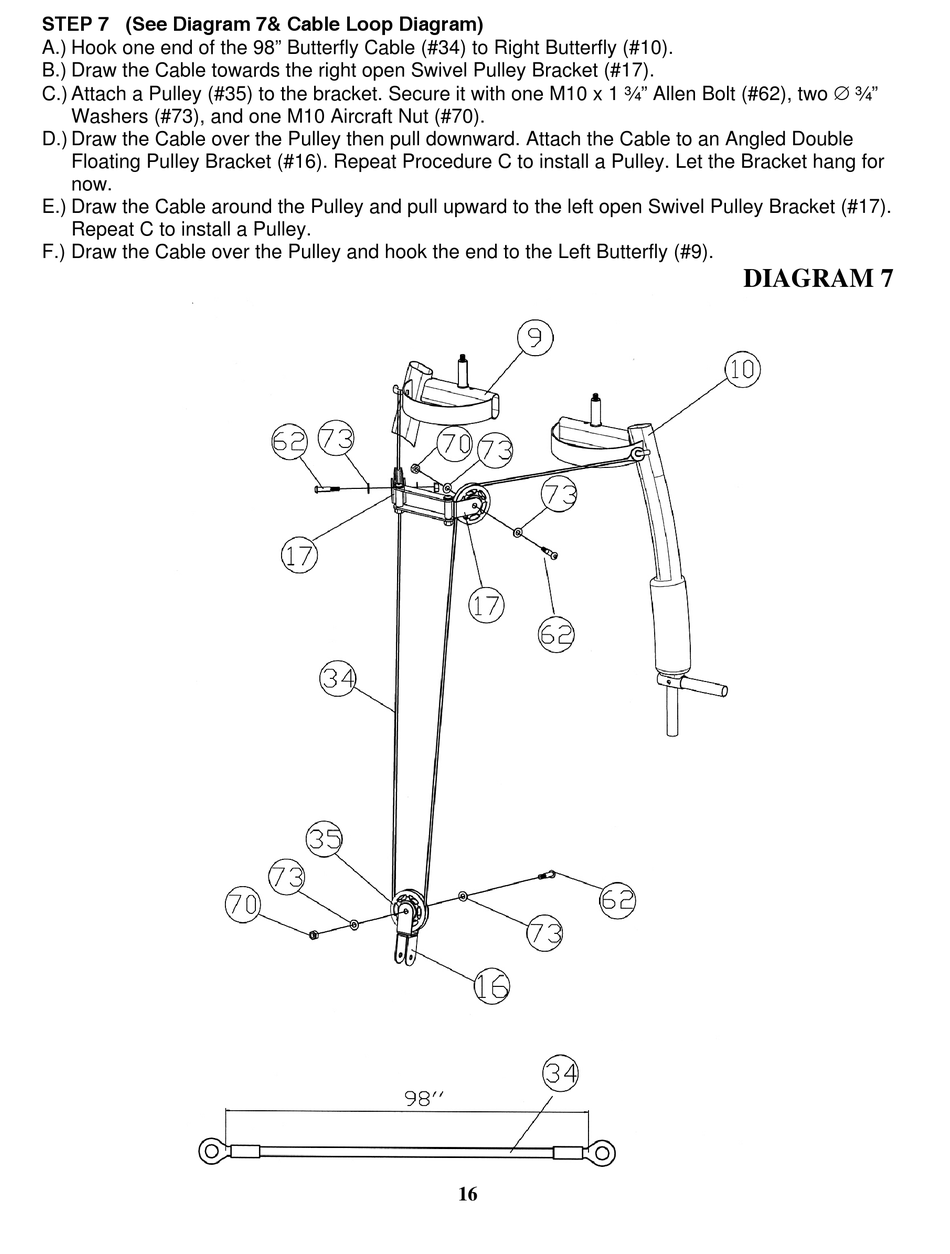

STEP 7 (See Diagram 7& Cable Loop Diagram)
A.) Hook one end of the 98" Butterfly Cable (#34) to Right Butterfly (#10).
B.) Draw the Cable towards the right open Swivel Pulley Bracket (#17).
C.) Attach a Pulley (#35) to the bracket. Secure it with one M10 x 1 ¾" Allen Bolt (#62), two  ¾"
Washers (#73), and one M10 Aircraft Nut (#70).
D.) Draw the Cable over the Pulley then pull downward. Attach the Cable to an Angled Double
Floating Pulley Bracket (#16). Repeat Procedure C to install a Pulley. Let the Bracket hang for
now.
E.) Draw the Cable around the Pulley and pull upward to the left open Swivel Pulley Bracket (#17).
Repeat C to install a Pulley.
F.) Draw the Cable over the Pulley and hook the end to the Left Butterfly (#9).
16
DIAGRAM 7
