Description
The Wheelock Series 43T bells provide the durable operation
and dependable performance required for life safety alarm
systems.
A complete range of vibrating models is offered in 6" and 10"
sizes for 115 or 24-volt AC operation in indoor or outdoor
installations. All models provide high sound output with low
power consumption. All models are provided with screw
terminal inputs for secure in-out field wiring.
Specifications and Ordering Information
Order
Model Number
Code
43T-G6-24-R
1627
43T-G6-24-S
1626
43T-G6-115-R
1631
43T-G6-115-S
1630
43T-G10-24-R
1647
43T-G10-24-S
3800
43T-G10-115-R
1651
43T-G10-115-S
3693
* Refer to Data Sheet #S7000 for mounting options.
1. Typical dBA at 10 feet is measured in an anechoic chamber.
2. All models are provided with in-out screw terminals.
3. Each bell mechanism is adjusted to operate only with the shell provided. Do not mix shells and mechanisms during installation.
E5946
151-92-E
7135-0785:108
10-INCH BELLS
Shell
Input
Input Voltage
Size
Current
6"
24 VAC
0.410
6"
24 VAC
0.410
6"
115 VAC
0.085
6"
115 VAC
0.085
10"
24 VAC
0.410
10"
24 VAC
0.410
10"
115 VAC
0.085
10"
115 VAC
0.085
Features
•
Approvals include: UL Standard 464, Factory Mutual (FM),
California State Fire Marshal (CSFM), New York (MEA) and
Chicago (BFP)
•
Complies with OSHA 29,Part 1910.165
•
High sound output with low current draw
•
6" and 10" shell sizes in 115 or 24 AC models
•
Integral RFI suppression minimizes induced noise on alarm
lines
•
Semi-flush mounting to standard 4" square backboxes or
surface mounting to Wheelocks surface backboxes
•
Polarized for supervision of alarm lines with screw terminal
inputs for fast and secure in-out field wiring of #12 to #18
AWG wire
•
Attractive textured finish to enhance appearance and
durability
•
For combined audible (bell) and visual signaling, convenient
retrofit assemblies (Series RSSP) are available with Multi-
Candela or single candela strobes (See Data Sheet S0410
or Wheelock Fire Products Catalog)
dBA @
Mounting
10 Ft.
Options *
86
86
86
86
D,E,J,K,N,O,P,R,S
88
88
88
88

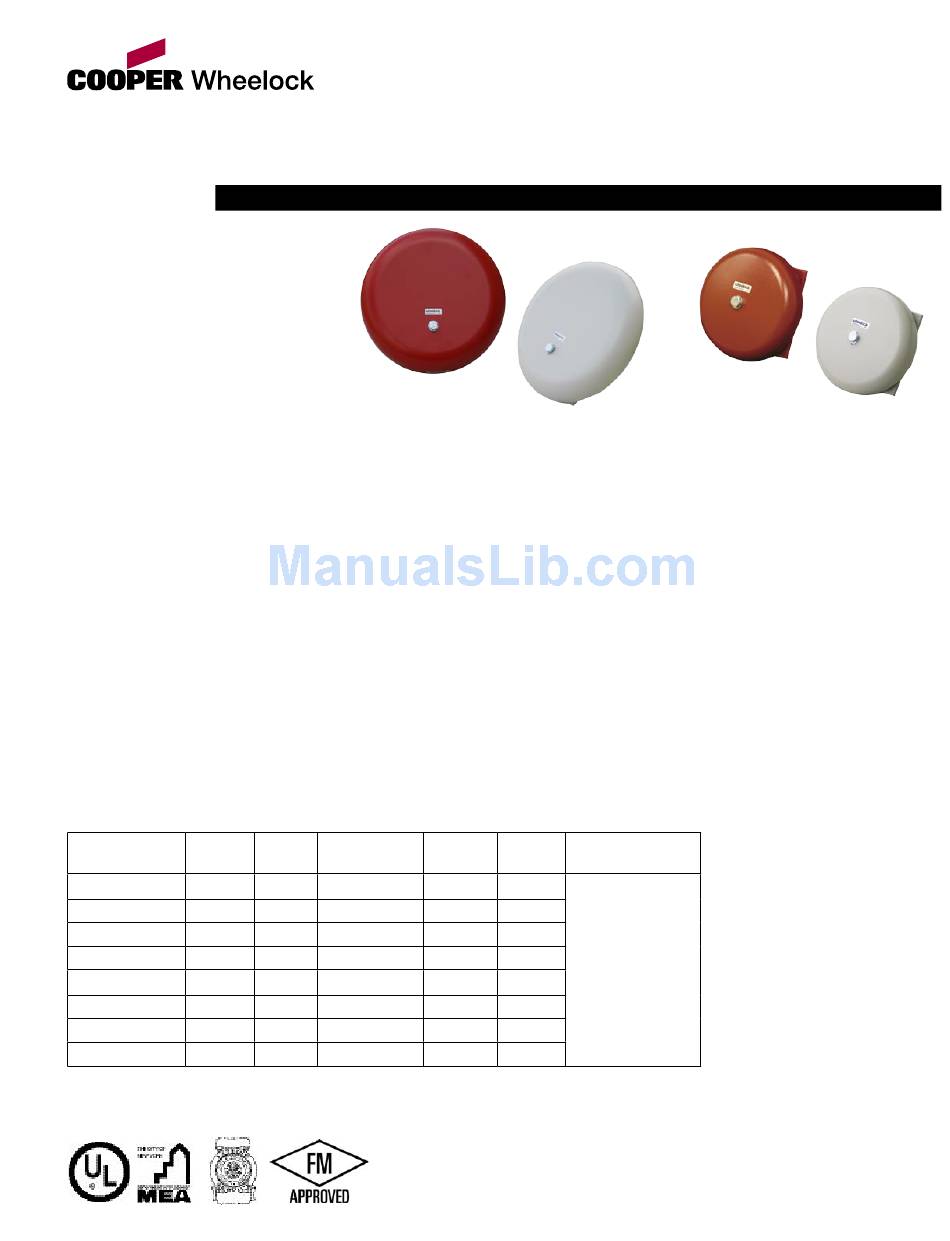

Series 43T AC Bells
6-INCH BELLS
