Fast-Track Set-up Guide for
SAFEPATH4 SP40S/SP40SE Panel
This guide has been created to provide you with a fast track setup to get your SP40S or SP40SE panel up and
running using the digital voice messaging and live voice modes of operation. Other modes, which include night
ring, telephone paging and background music and other features, are discussed in the technical manual. This guide
is not to take the place of the Installation, Testing, Operation and Maintenance Manual, which you received in this
package. When in doubt, refer to the Manual for additional information. Always Obey All Safety Precautions
and Warnings.

1. Inventory

When you receive your new Panel, check to see that you have the following items:
SP40S or SP40SE Panel.
Package of test EOLRs (End of Line Resistors)
Operation and Installation Manual
2 UL Listed 10K Ohm EOLRs.
Hardware Kit containing Battery connection wires

2. Mounting

MAKE SURE THAT ALL EXTERNAL WIRING IS REMOVED, AND ALL ELECTRICAL
COMPONENTS ARE CLEAR BEFORE DRILLING MOUNTING HOLES AND MOUNTING THE
SP40S/SP40SE PANEL.
1. Open the front cover and dead front panel.

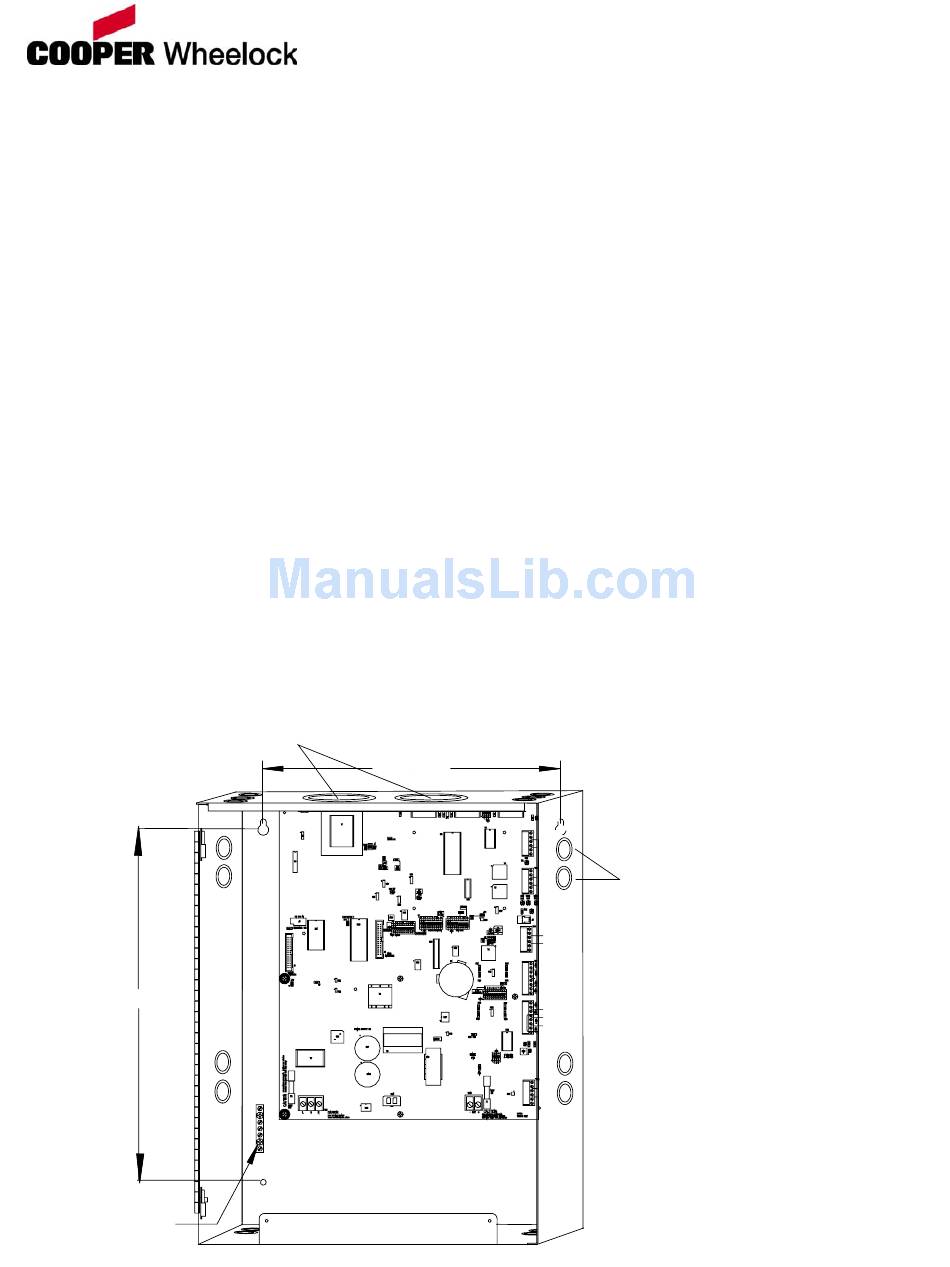

2. Mount the Panel in the desired location-using Figure 1 for hole configuration.
2" - 2 1/2" - 3" Conduit
Knockouts (2 Places)
17.00"
Grounding
Terminal
Block
14.00"
TB
AU
24
SP
AU
CC/
24V
3/4" - 1" Conduit
Knockouts (18 Places)
Figure 1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SAFEPATH4 SP40S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cooper Wheelock SAFEPATH4 SP40S

  • Page 1 Fast-Track Set-up Guide for SAFEPATH4 SP40S/SP40SE Panel This guide has been created to provide you with a fast track setup to get your SP40S or SP40SE panel up and running using the digital voice messaging and live voice modes of operation. Other modes, which include night ring, telephone paging and background music and other features, are discussed in the technical manual.
  • Page 2 3. Connect conduit fittings and conduit to the Panel through the conduit entrances shown on Figure 1 as necessary. Wire the Power input on the left bottom of the Panel, and input and output wiring on the right side of the Panel. 4.
  • Page 3 Connect the wiring to the proper terminals in the order shown in Figure 2.. Table 1 shows the factory installed messages for each of the inputs (IN1 through IN8) AC TRB 1. WIRE THE SPEAKER CIRCUIT NO NC NO NC NO NC NO NC NO NC...
  • Page 4 Should a problem arise, refer to your Installation, Testing, Operation and Maintenance Manual. If problems persist, contact the Technical Support Engineering Department at Cooper Wheelock Inc. (800) 631-2148. Copyright 2007 Cooper Wheelock Inc. All rights reserved. P84743 B 273 Branchport Avenue,...
