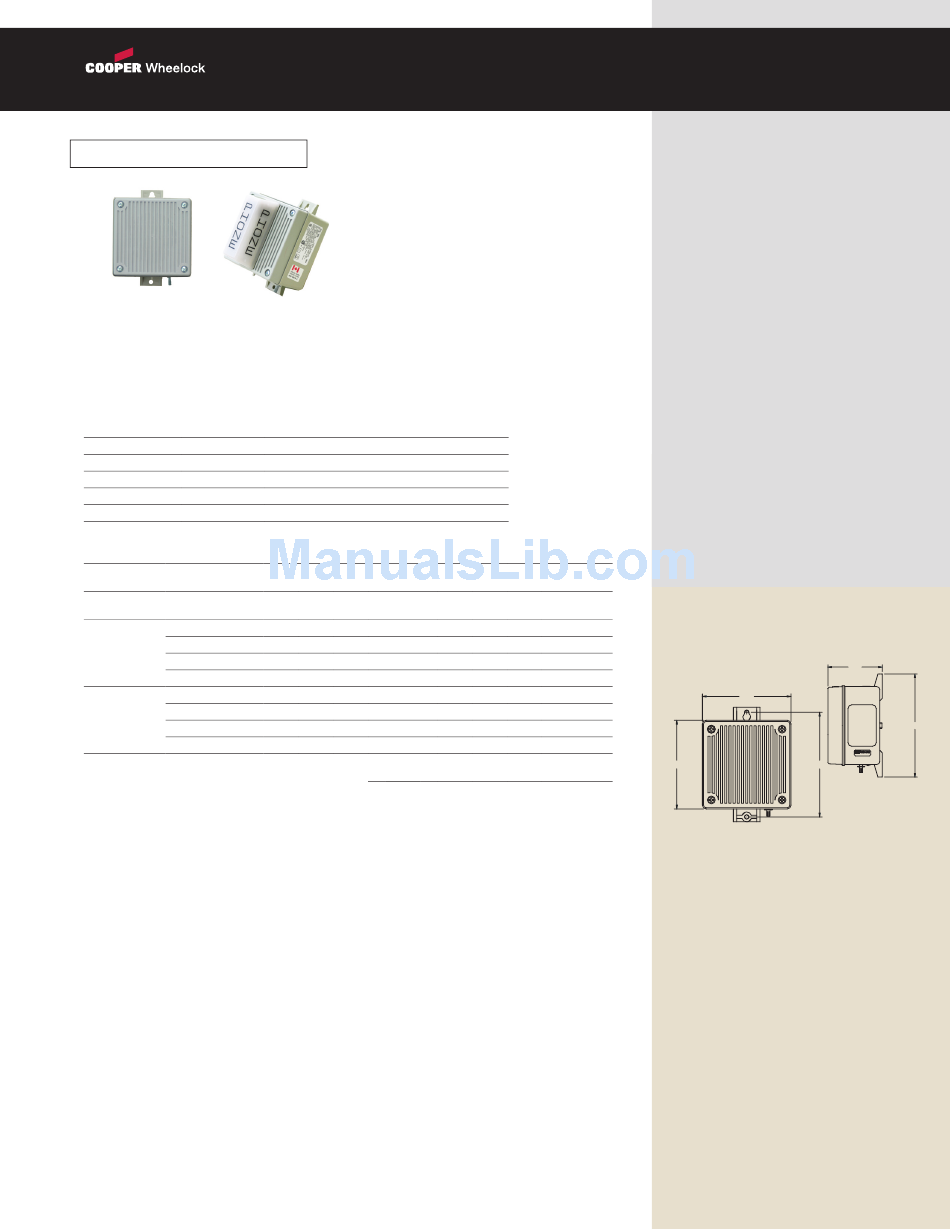

Cooper Wheelock UTA-1 Specification

Universal Telephone Alert
Order Code
UTA-1 Gray
w/Strobe
UTA-WH-VPS Gray
Tone Volume Range and Description
Horn 82-109 dB
Bell 76-104 dB
Vibrating Chime 68-94 dB
Single Chime 68-94 dB
Model Number Tones
Horn
Bell
UTA-1
Vibrating Chime
Single Chime
Horn
Bell
UTA-WH-VPS
Vibrating Chime
Single Chime
(800) 631-2148 • www.cooperwheelock.com
Power Requirements
6338 24 VDC, 24 VAC, 48 VDC, 90 VRMS/20-30Hz
6348 115 VAC power for strobe and piezo operation
telephone ring trigger for activation via 24 VDC,
24 VAC, 48 VDC, 90 VRMS/20-30Hz
Broadband Horn
1560 Hz Modulated (0.07 Sec. ON/Repeat)
700 Hz (1.0 Sec. Decay/Repeat)
700 Hz (1.0 Sec. Decay)
dB @ 3 Feet (1 meter)
Current Draw mA
48 24 24 90 VRMS
VDC VDC VAC 20 Hz VDC
107 108 105 104
100 100 102 100
94 96 99 97
94 96 100 96
109 109 109 109
104 104 104 104
94 94 94 94
94 94 94 94
Voltage
36-60 20-30 20-30
Range Range
Series UTA- Universal Telephone Alerts
Ring Voltage
REN
48 24 24 90 VRMS
VDC VAC 20 Hz
26 30 46 1.6
10 9 39 1.4
7 6 29 1.25
6 6 34 1.25
3 2.5 4 .6
3 2.5 4 .6
3 2.5 4 .6
3 2.5 4 .6
40-130
Loud, attention getting electronic ringers
designed for use in noisy locations or
for wide area coverage. Operates off
the telephone ringer voltage.
Available features and options:
Color: Gray
Four selectable sound patterns:
Horn, Bell, Vibrating Chime, Single
Chime
High output 109 dB piezo speaker
Tamper resistant volume control
Dip switch selectable
Low current draw and REN
Approvals: UL Standard 1950
Multiple voltage activation
Series UTA
4.23
4.23
4.23
Note: Not intended for wash down areas.
2.88
5.47
Industry Canada
Industrie Canada
6-1 06/06
