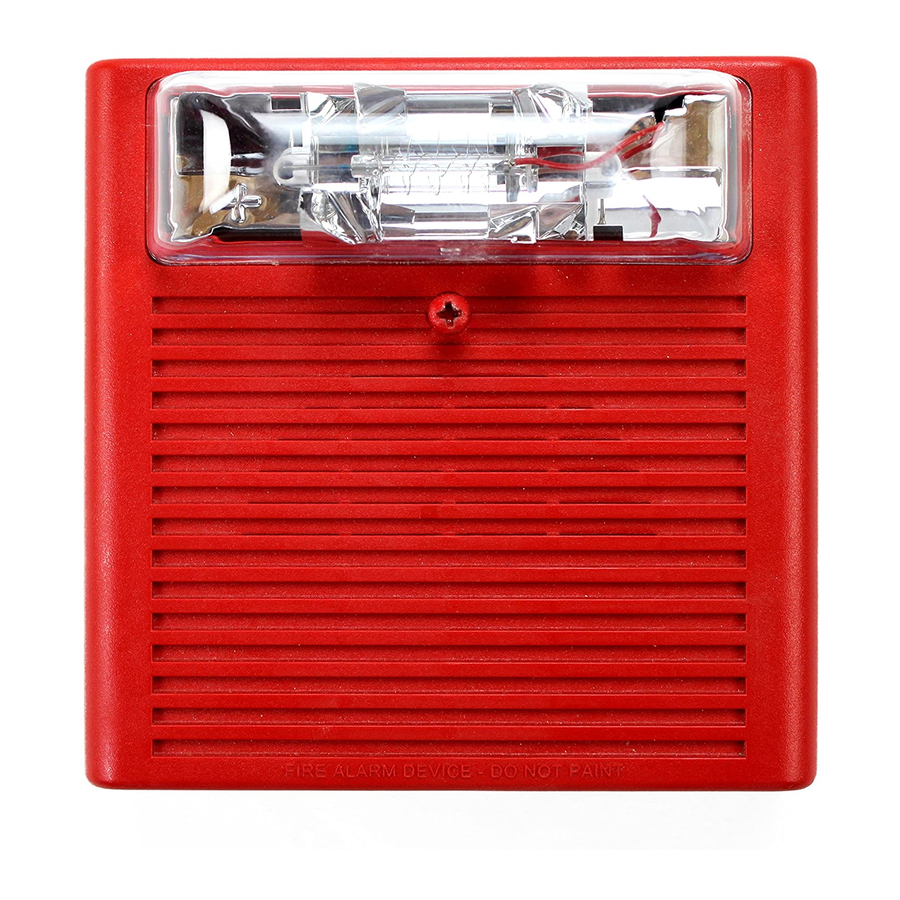

The Wheelock patented 2-wire Series AS Audible Strobe
Appliances and Series AH Audibles offer more features with
low current draw.
Strobe options for wall mount models include 1575cd or the
Wheelock patented MCW multi-candela wall strobes with field
selectable candela settings of 15/30/75/110cd, or the high
intensity MCWH strobe with field selectable 135/185cd.
Ceiling mount models incorporate Wheelock's patented MCC
multi-candela ceiling strobe with field selectable intensities of
15/30/75/95cd or the high intensity MCCH strobe with field
selectable 115/177cd.
The audible provides a selectable choice of either a
continuous horn or temporal pattern (Code 3) when
constant voltage from a Fire Alarm Panel (FACP) is
applied. Each tone has 3 dBA settings to choose from.
When used with the Wheelock Series SM or DSM Sync Module
or Wheelock PS-24-8MC Power Supplies with Patented
Sync Protocol, synchronization of the continuous horn tone
provides the temporal (code 3) tone (mandated by NFPA 72)
simultaneously for all audible appliances. This ensures a
distinct temporal (code 3) pattern when 2 or more audibles
are within hearing distance. If not synchronized the temporal
sound could overlap and not be distinctive. At the same time
the strobes will be synchronized. This provides the ability to
comply with ADA guidelines concerning photosensitive epilepsy
and the NFPA standards when installing 2 or more visual
appliances within the field of view all of this plus the ability to
silence the audible is achieved by using only 2 wire.
U
THE CITY OF
NEW YORK
L
®
DEPARTMENT OF BUILDINGS
E5946
151-92-E
7125-0785:131
S5391
Series AS Audible Strobe Appliances and Series AH Auddibles
SERIES AS
Features
Approvals include: UL Standard 1971, UL Standard 464
New York City (MEA), California State Fire Marshal (CSFM),
Factory Mutual (FM), and Chicago (BFP). See approvals by
model in Specifications and Ordering Information
ADA/NFPA/UFC/ANSI Compliant
Wall mount models are available with Field Selectable
Candela Settings of 15/30/75/110cd or 135/185cd (Multi-
Candela models) or 1575cd (single candela model)
Ceiling mount models are available with field selectable
candela settings of 15/30/75/95cd or 115/177cd (multi-candela
ceiling models)
Selectable Continuous Horn or Temporal (Code 3).
3 Selectable dBA settings (99, 95 and 90 dBA) in both tones
Patented 2-Wire Audible Strobe Appliance.
Patented Universal Mounting Plate
Weatherproof models are available for outdoor use
Strobes produce 1 flash per second over the regulated
voltage range
12 and 24 VDC models with wide UL "Regulated Voltage
Range" using filtered DC or unfiltered FWR input voltage
The strobes can be synchronized using Wheelock's sync
modules or power supplies with built in sync protocol
Fast installation with IN/OUT screw terminals using
#12 to #18 AWG wires
For Weatherproof Series AS, See Datasheet S9004
