    SAFEPATH 4 Facility Communications System & Expansion Options ® SPB-320 SPB-80/4 SPB-160 SP4-APS SP40S SP-SVC SP4Z-A/B SPRM SP4-TZC Page Description SP40S Facility Communications System Expansion Options SAFEPATH 4 2-Zone Class A or 4-Zone Class B Speaker Audio Splitter ® SAFEPATH 4 Audio Boosters ®...

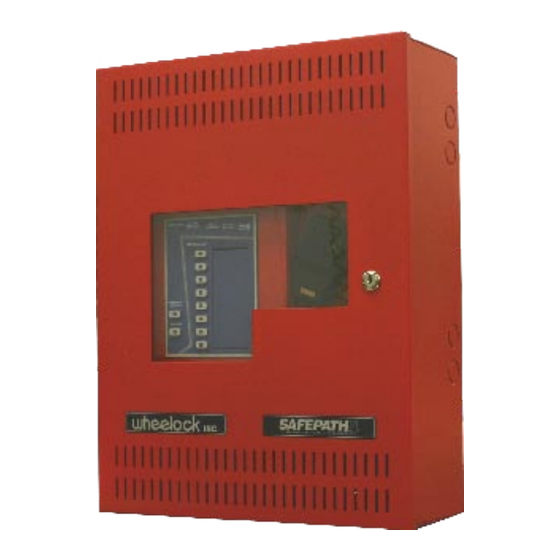

  • Page 2 SAFEPATH ® Facility Communications SP40S Description The SP40S is a Multi-Function Supervised Paging, Messaging, Background Music delivery and Emergency Voice Evacuation System with 24 VDC battery backup. This single channel system is capable of delivering 40 watts of supervised high fidelity audio power and 2 amps of supervised 24 VDC synchronized strobe power.
  • Page 3 Audio Processing Power Supply & Batteries • Volume and tone controls for general paging and BGM • 24 VDC, 33AH Max rechargeable battery back-up power circuitry • Connectability of optional speaker splitter modules built-in • Dual-tone tone generator with: Code 3 Tone and Slow Whoop for alerting •...

  • Page 4: Ordering Information

    Ordering Information Model Order Description Number Code Multi-Function Supervised Paging, Messaging, Background Music delivery and Emergency Voice Evacu- ation System with 24 VDC battery backup circuitry. Single channel system with 40 watts of supervised SP40S 9929 audio power and 2 amps of supervised 24 VDC synchronized strobe power and 8 standard messages. (batteries not included, 2 required) Red Enclosure SP40S-B 9935...
  • Page 5 SAFEPATH ® 2-Zone Class A or 4-Zone Class B 2-Zone Class A Speaker Audio Splitter 4-Zone Class B Speaker Audio Splitter For operation with SAFEPATH 4 Family of Products: ® SP40S, SP40/2, SPB-320, SPB-160, SPB-80/4 Description: Supervised 2-Zone Class A or 4-Zone Class B Speaker Audio Splitter for the SP40S, SP40/2 or Audio Boosters.

  • Page 6: Spb-80/4

    SAFEPATH ® Audio Boosters SPB-320 SPB-320 320 Watt Supervised Audio Power Booster (Four 80 watt circuits) SPB-80/4 SPB-160 160 Watt Supervised Audio SPB-160 Power Booster (Two 80 watt circuits) SPB-80/4 80 Watt Supervised Audio Power Booster with 4 Amps of Supervised and Synchronizable Strobe Power (Two 2 Amp circuits) Features...
  • Page 7 SPB-80/4 Strobe Features: Technical Specifications: • Two 24VDC 2 Amps, NAC supervised, synchronizable, • 120VAC, 3.8A, 60 Hz input power limited, Class B strobe outputs • SP40SE Models 240 VAC, 2.5A, 50-60 Hz • Selectable outputs; Wheelock sync, pass through, or •...
  • Page 8 Legend: Telephone Background Music Digital Voice Message Expander FACP Fire Alarm Control Panel Pull Station Push Station Wheelock Strobe Power Supplies SP40S Supervised Multi-Function Communication System SPB-80/4 80 Watt Audio Booster & 4 Amps of Strobe Power SPB-160 160 Watt Audio Booster SPB-320 320 Watt Audio Booster SPRM...
  • Page 9 Wheelock SP4-APS Strobe Power SPB-160 Supply Wheelock Strobe Power SP4Z-A/B Supply SPB-320 SPB-320 SP4-APS SP4-APS SP4-APS SP4-APS SP4-APS SP4Z-A/B SP4Z-A/B SP4-APS SP4-APS SP4-APS SPB-160 SPB-160 SP4-APS SP4-APS SPB-80/4 SP4-APS...
  • Page 10 SAFEPATH ® Addressable Paging Splitter and Telephone Zone Controller SP4-APS Addressable Paging Splitter SP4-TZC Telephone Zone Controller Applications: • Connects to the SP40S or SP40/2 to control selectable paging and background music (BGM) • Ability to access individual or multiple speaker zones throughout the SP40S or SP40/2 system via the telephone Features: •...

  • Page 11: Sprm

    SAFEPATH SAFEPATH ® ® Supervised Volume Control Remote Microphone SP-SVC Supervised Volume Control Applications: Description: • Allows manual volume setting for telephone Remote Microphone for use with the SAFEPATH 4 Facility ® paging and background music for a specific Communications System - SP40S, SP40/2 or SP4-RMX speaker or speaker zone •...
  • Page 12 SAFEPATH ® Remote Microphone SP4-RMX Expansion Module Remote Microphone Expansion Module Applications: • Expands one remote microphone (SPRM) from the SP40S or SP40/2 to three remote microphones • Two SP4-RMX modules can be cascaded together to provide up to six remote microphones from the SP40S or SP40/2 •...
  • Page 13 Ordering Information Order Model Number Description Code Multi-Function Supervised Paging, Messaging, Background Music and Emergency Voice Evacuation System with 24 VDC battery backup circuitry. Single channel system with 40 watts of supervised SP40S 9929 audio power and 2 amps of supervised 24 VDC synchronized strobe power and 8 standard messages. (batteries not included, 2 required) Red enclosure SP40S-B 9935...

  • Page 14: Sp40S Facility Communications System

    24 VDC batteries with a maximum capacity of 33 amp hours. Up to two 12 VDC, 12 AH batteries may be housed in the enclosure. Batteries larger than 12 Ah shall be housed in a separate enclosure such as the Cooper Wheelock BATC or equivalent.

  • Page 15: Addressable Paging Splitter And Telephone Zone Controller

    Architects and Engineers Specifications 4 Zone Class B Speaker Splitter The Wheelock SP4Z-A/B shall be UL Standard 864, 9th edition, California State Fire Marshal (CSFM) and New York City (MEA) approved, 2-Zone Class A or 4-Zone Class B Speaker Splitter for operation with the Wheelock, SP40S, SP40/2, SPB-80/4, SPB- 160 and SPB-320.

  • Page 16: Remote Microphone Expansion Module

    Remote Microphone Expansion Module The Wheelock SP4-RMX Remote Microphone Expansion Module shall be UL Standard 864, 9th edition and California State Fire Marshal (CSFM) approved for use with the SAPEPATH 4 SP40S Facility Communications System. ® The SP4-RMX shall be a supervised outboard expansion module for use with the SAPEPATH 4 system.
